INTEGRA Metering CALEC ST III User Manual

Installation
3-140-UM-EN-02
19 / 56
5 Installation
CALEC® ST III can be installed on a flat wall or on a mounting rail. Suitable mounting rails are available as ac-
cessories.
5.1 Conditions
u Meet the following conditions according to the specifications in the Technical data to ensure a reliable
operation.
l Space requirements
l Ambient conditions
l Dimensions
l Electrical connection
5.2 Mechanical installation
DANGER
Electric shock
Touching energized system parts can cause immediate death or serious injury.
u Make sure that installation work is only carried out by authorized specialists.
u Before carrying out any work on the system, disconnect the power supply and check that
no voltage is present.
u If an insulation is damaged, disconnect the power supply immediately and arrange for im-
mediate repair.
Installation location
NOTICE
Material damage due to inappropriate environmental conditions
Non-compliance with the required environmental conditions can lead to material damage and
malfunctions.
u Ensure that the product is accessible for installation, operation and maintenance work.
u Avoid heat, moisture, dirt and vibration.
u Install the product in a cool and dry place.
u Ensure a safe distance to sources of electrical noise.

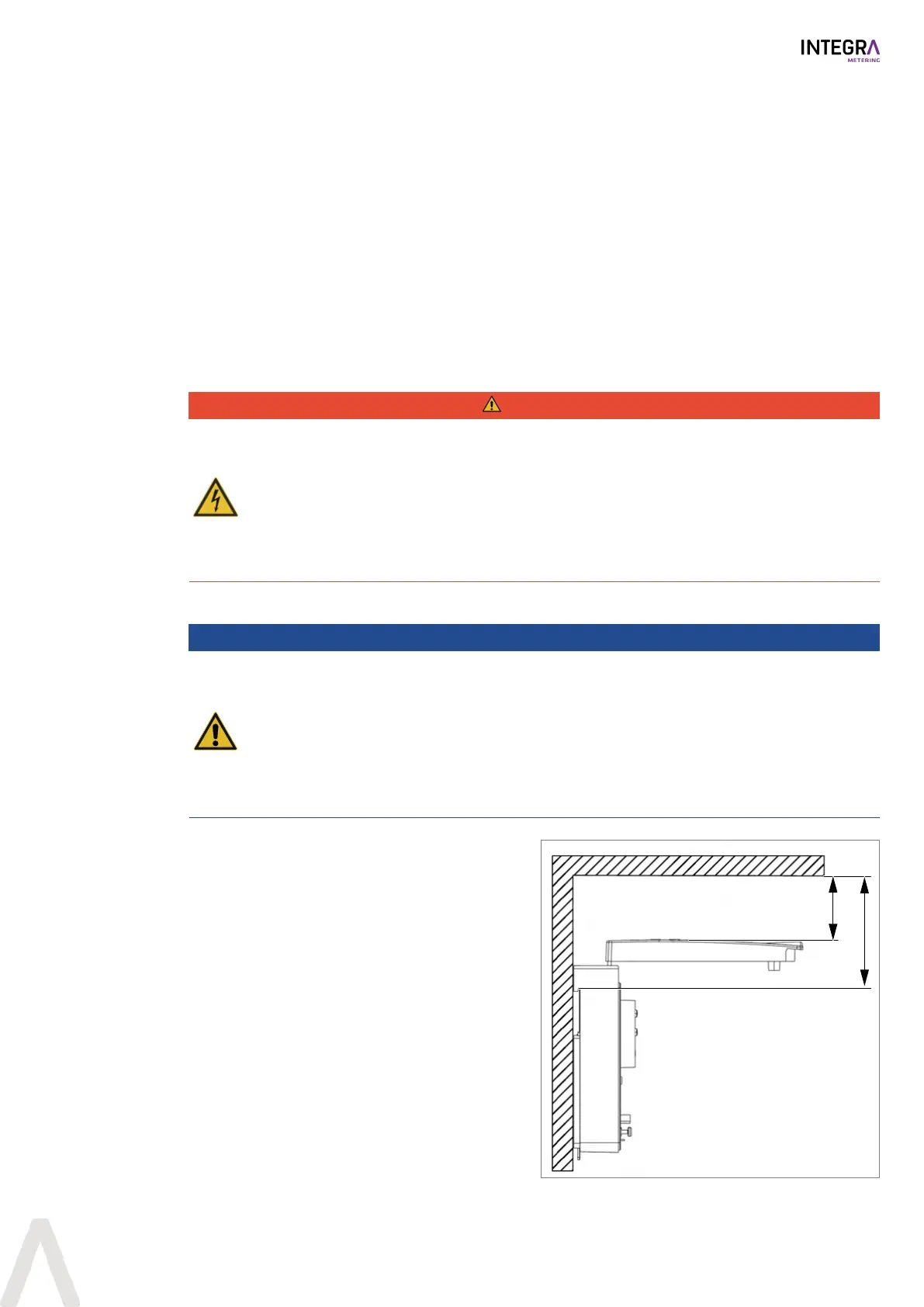

u Make sure that there is a clearance of 50mm
above the open cover of the meter.
u Make sure that there is a distance of 85mm be-
tween the top edge of the mounting rail and the
ceiling.
50
85
