Installation
3-140-UM-EN-02
21 / 56

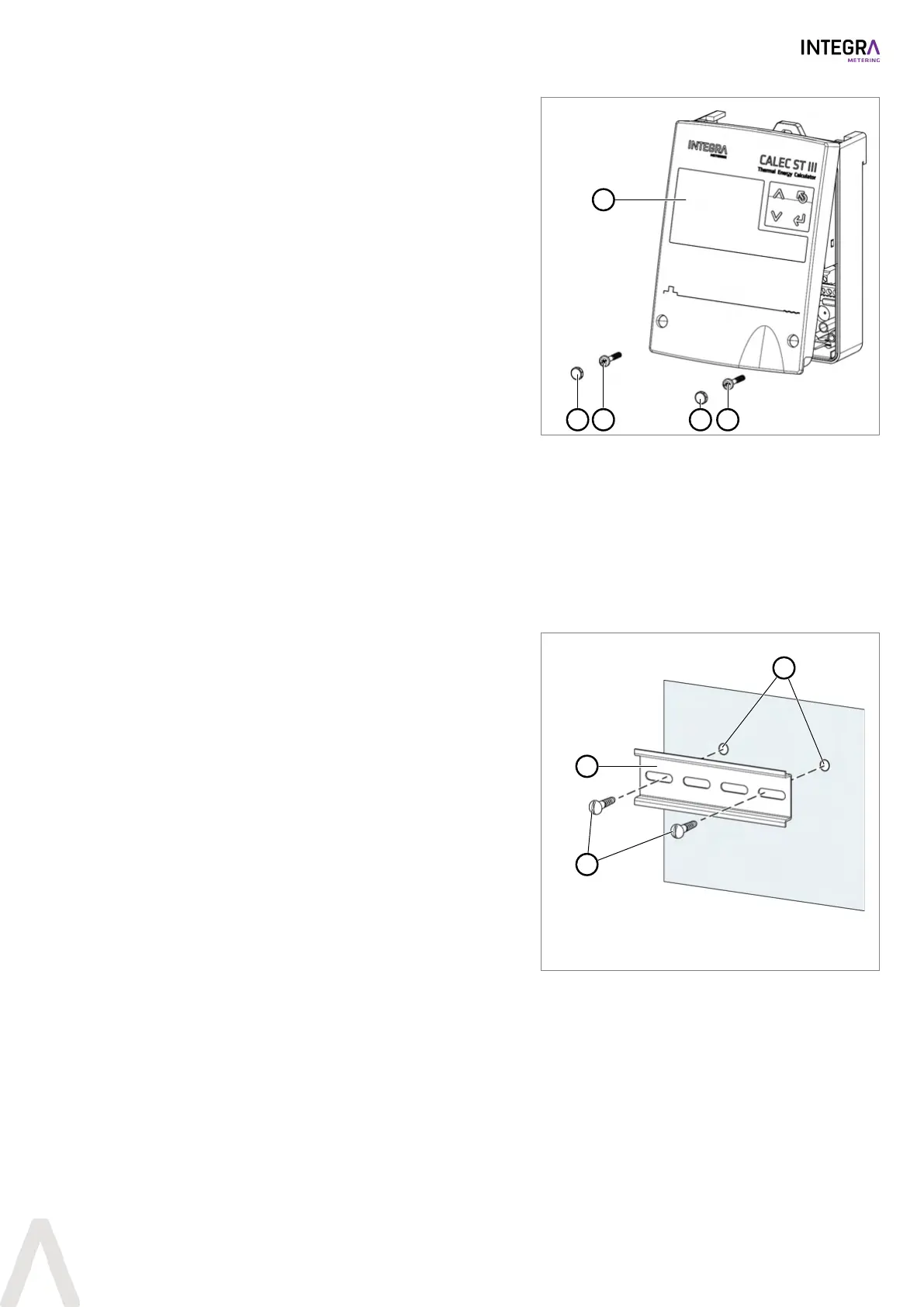

Close the front cover
u Fit and close the cover(1).
u Tighten two screws(2).
u Remove the safety caps(3) from the top of the
housing. Attach them to each screw with the
smooth side facing outwards.
1
2
2
3
3
5.2.2 Installation on a rail DIN EN 50222
Tools and installation material are not included in the delivery.
l Flat screwdriver 3.5×0.6
l Drill bit Ø6
l Screws 2×Ø4
l Dowels 2×Ø6
l Washers 2×4.3×12
u Using the drilling template [}p.55], drill two
holes(1) Ø6mm into the wall.
u Mount dowels 2×Ø6.
u Mount the rail(2) with the two screws(3) and
washers onto the wall.
1
2
3
