Installation
20 / 56
3-140-UM-EN-02
5.2.1 Installation on a wall
Tools and installation material are not included in the delivery.
l Flat screwdriver 3.5×0.6
l Torx screwdriver TORX T15
l Drill bit Ø6
l Screws 3×Ø4
l Dowels 3×Ø6
l Washers 3×4.3×12

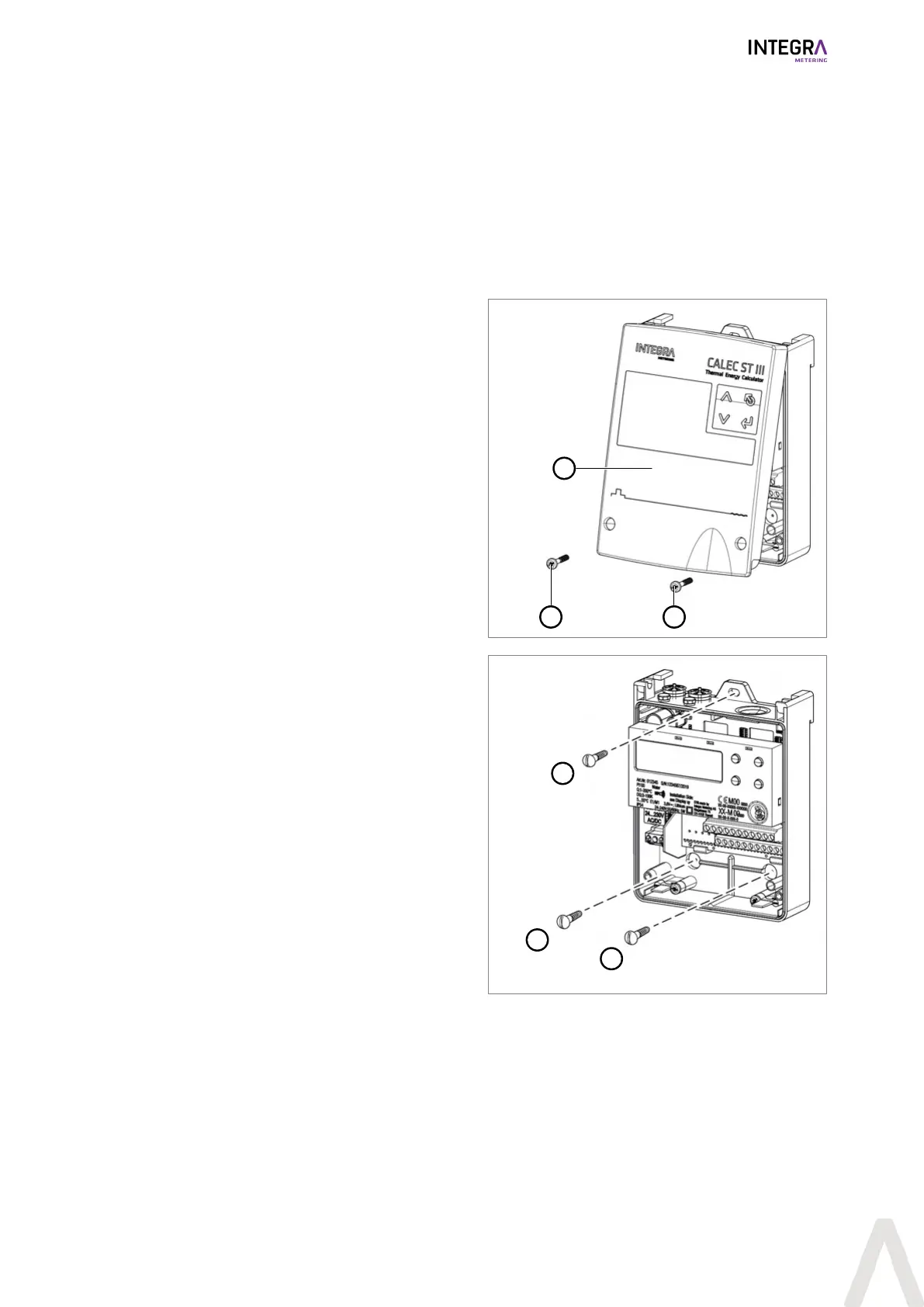

Take off the front cover
u Remove the two screws(1).
u Remove the cover(2).
2
1
1
Drill holes
u Using the drilling template [}p.55], drill three
holes Ø6mm into the wall.
u Mount dowels 3×Ø6.
u Mount the device with the three screws(1) and
washers onto the wall.
1
1
1
