Integra DTR-7.8 - First Time Setup-Continued; Digital Input Assignment

50

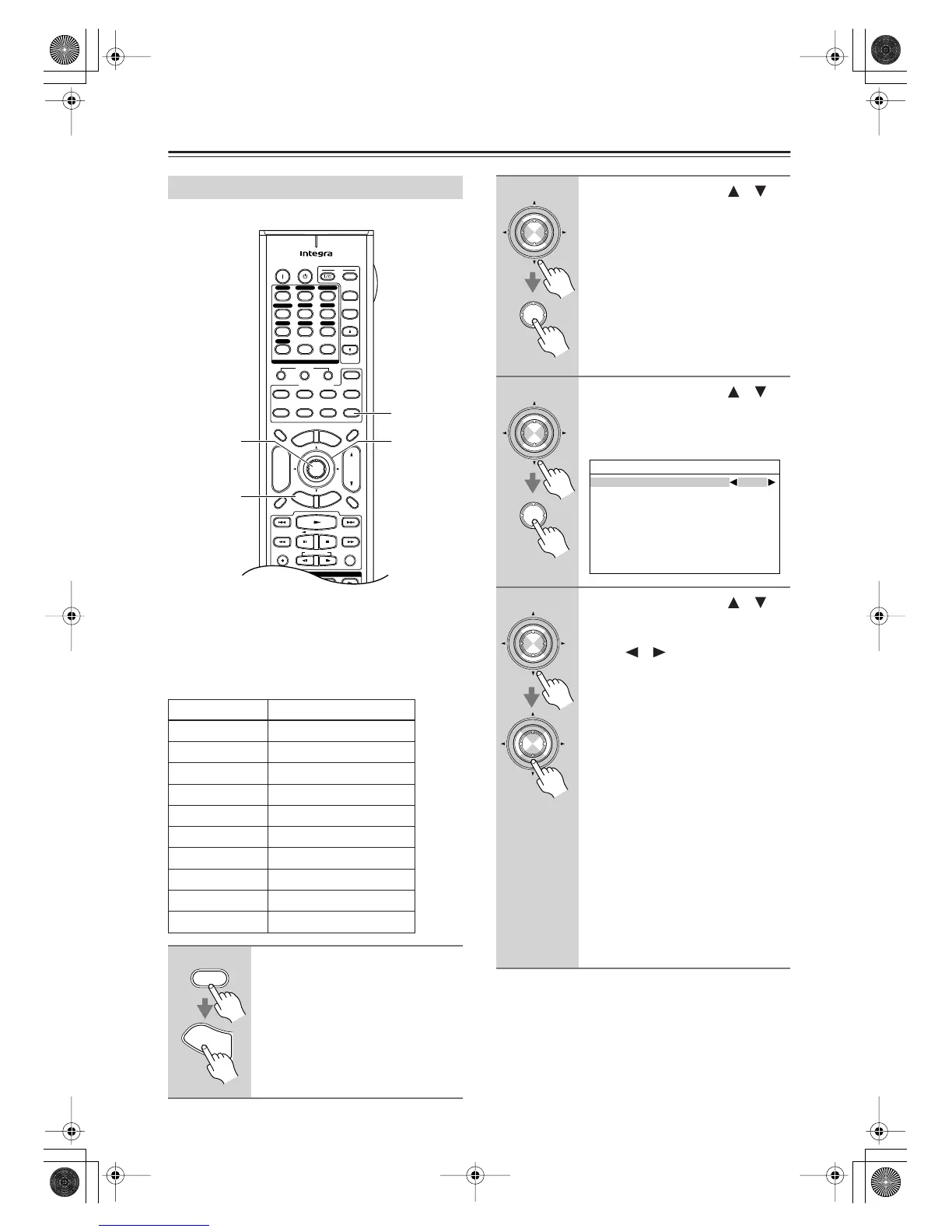

First Time Setup —Continued
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example,
if you connect your CD player to OPTICAL IN 2, you
must assign OPTICAL IN 2 to the CD input selector.
These are the default assignments.
Digital Input Setup
Input selector Audio input
DVD COAX1
VCR/DVR COAX2
CBL/SAT COAX3
GAME/TV OPT1
AUX 1 - - -
AUX 2 FRONT (Fixed)
TAPE - - -
TUNER - - -
CD OPT2
PHONO - - -
1
Press the [Receiver] button, fol-
lowed by the [Setup] button.
The main menu appears onscreen.
+
-
On Standby
TV
Input
TV CH
TV VOL
--
/
---
10 11 12
D.TUN
+10
0
Clear
123
456
789
Input Selector
VCR / DVR CBL / SAT
DVD
Tape
Tuner
CD
Phono
Game / TV
Macro
12
3
VCRDVD
CDR/MD
CD
Zone 2
Remote Mode
Dimmer
Tape/AMP
Sleep
Receiver TV Dock Cable
VOL
CH
Disc
Album
+
-
Enter
T
o
p
M
e
n
u
M
e
n
u
Display Muting
E
x
i
t
G
u
i
d
e
Prev
CH
R
e
t
u
r
n
S
e
t
u
p
Audio
Repeat
Play Mode
Listening Mode
Playlist
RandomRec
Direct
Stereo
THX All ST
Subtitle
Surround
SAT
Zone 3
AUX 1 AUX 2
2, 3
2–4
1
1, 5
Receiver
S
e
t
u
p
2
Use the Up and Down [ ]/[ ]
buttons to select “1. Input/Output
Assign,” and then press [Enter].
The Input/Output Assign menu
appears.
3
Use the Up and Down [ ]/[ ]
buttons to select “4. Digital
Input,” and then press [Enter].
The Digital Input menu appears.
4
Use the Up and Down [ ]/[ ]
buttons to select an input selec-
tor, and then use the Left and
Right [ ]/[ ] buttons to select:
COAX1 : Select if the component is
connected to DIGITAL
COAXIAL IN 1.
COAX2 : Select if the component is
connected to DIGITAL
COAXIAL IN 2.
COAX3 : Select if the component is
connected to DIGITAL
COAXIAL IN 3.
OPT1 : Select if the component is
connected to DIGITAL
OPTICAL IN 1.
OPT2 : Select if the component is
connected to DIGITAL
OPTICAL IN 2.
- - -: Select if the component is
connected to an analog
input.
Enter
Enter
Enter
Enter
1-4.Digital Input
DVD COAX1
VCR/DVR COAX2
CBL/SAT COAX3
GAME/TV OPT1
AUX1 ---
AUX2 FRONT
TAPE ---
TUNER ---
CD ---
PHONO ---
Enter
Enter
