Intel Agilex User Guide

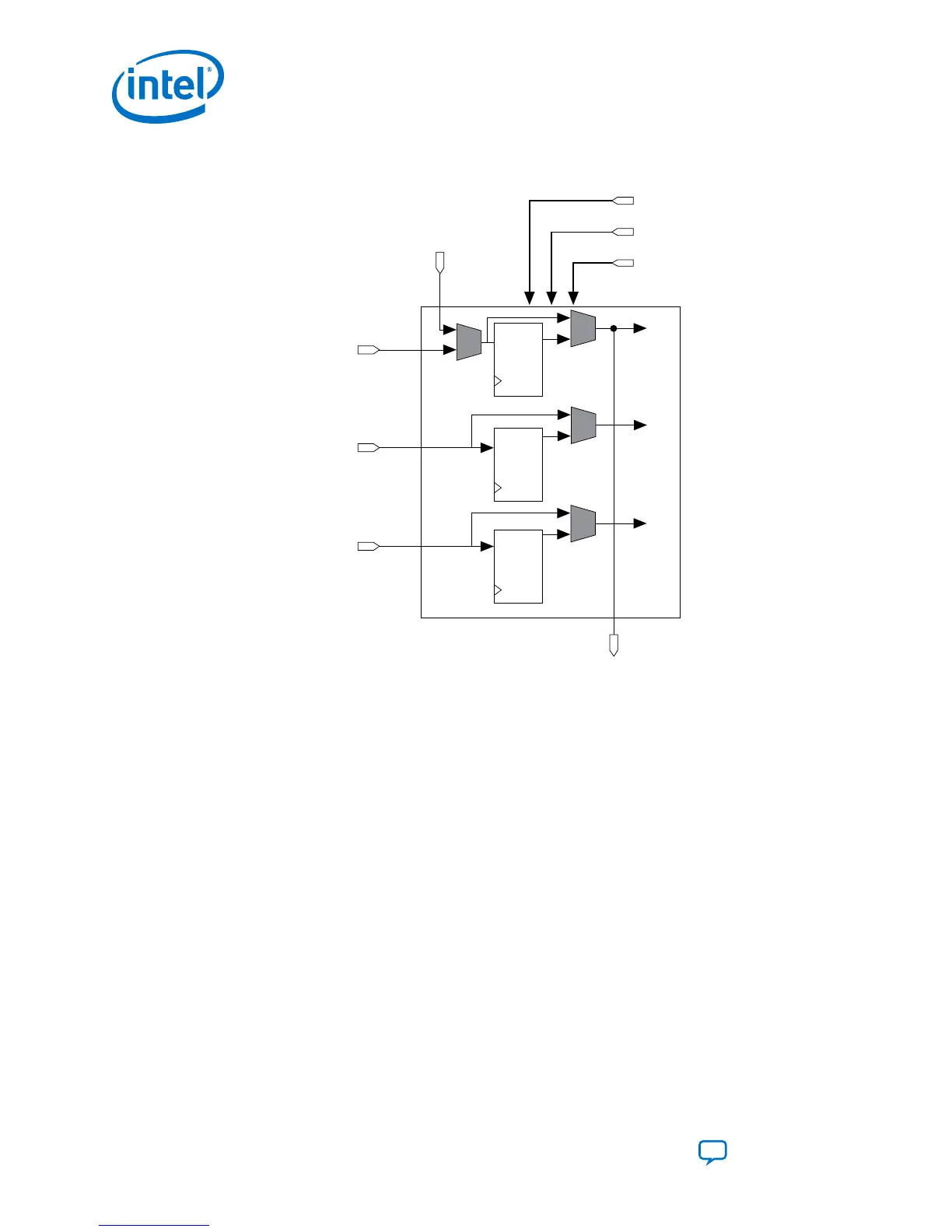

Figure 8. Data Input Registers in Fixed-Point Arithmetic 27 x 27 Mode
ay[26..0]
az[25..0]
ax[26..0]
scanin[26..0]
CLK
ENA[2..0]
CLR[0]
scanout[26..0]
Related Information
Configurations for Input, Pipeline, and Output Registers on page 62
Provides information about restrictions on fixed-point arithmetic input registers.
2.1.2. Pipeline Registers for Fixed-Point Arithmetic
In addition to the input and output registers, there are 2 columns of pipeline registers
for fixed-point arithmetic. Pipeline registers are used to get the maximum Fmax
performance. The pipeline registers can be bypassed if high Fmax is not needed.
The following variable precision DSP block signals control the pipeline registers within
the variable precision DSP block:
• CLK
• ENA[2..0]
• CLR[1]
Related Information
Configurations for Input, Pipeline, and Output Registers on page 62
Provides information about restrictions on fixed-point arithmetic pipeline registers.
2. Intel Agilex Variable Precision DSP Blocks Architecture
UG-20213 | 2019.04.02
Intel
®
Agilex
™
Variable Precision DSP Blocks User Guide
Send Feedback
16
