A. Development Kit Components
This chapter introduces all major components on the Cyclone V SoC Development Kit.
A.1. Board Overview
This section describes all the components on the development board. A complete set
of schematics, a physical layout database, and Gerber files for the development board
reside in the development kit document directory.

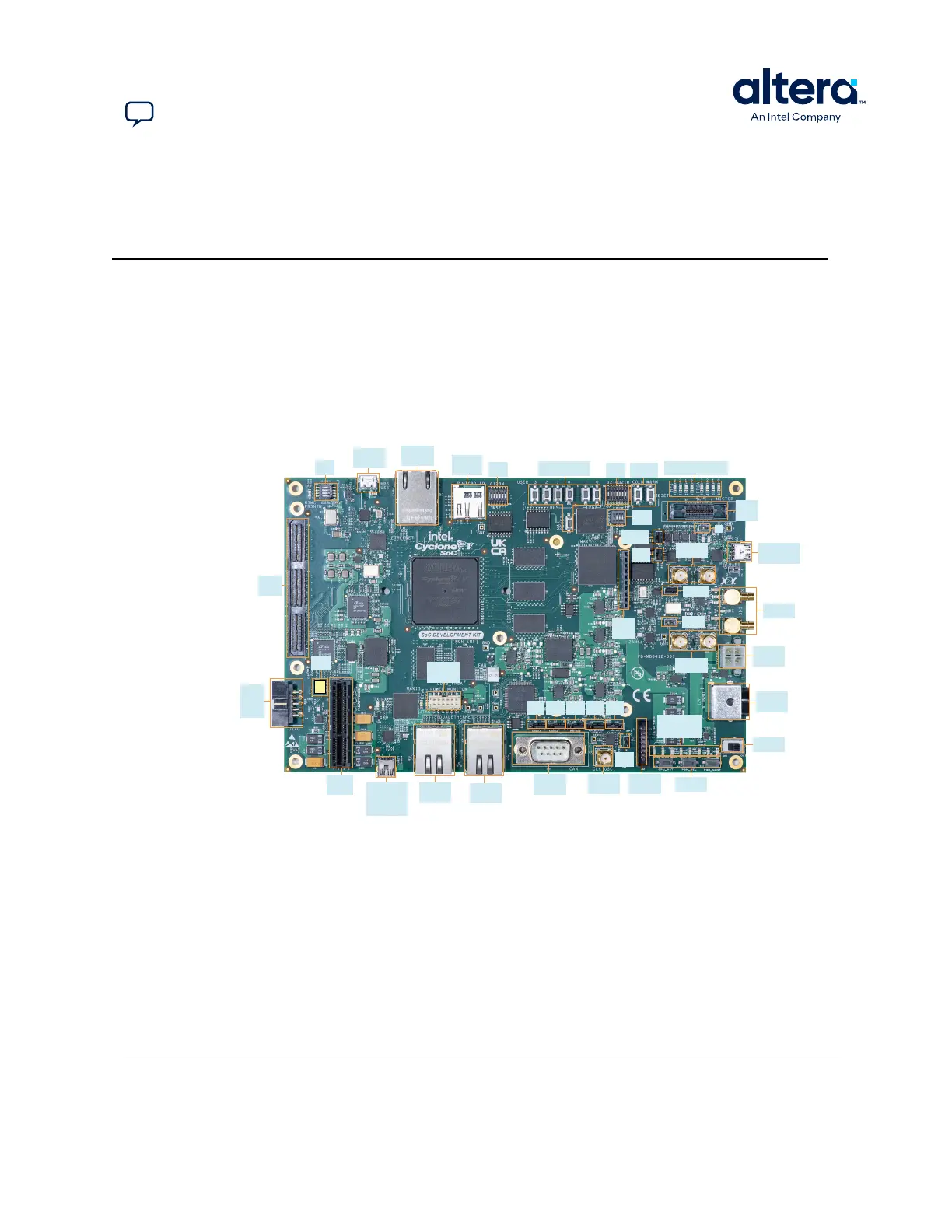

Figure 18. Components in Cyclone V SoC Development Kit (Power Solution 2)—Top View
LEDs
(D1, D2, D3, D4, D5, D6, D7, D8)
DIP Switches
(S7, S8)
Switch
(SW1)
DIP Switches
(S1, S2, S3, S4, S5, S6, S9)
Switch
(SW3)
Micro SD Card
Connector
(J3)
RJ45 Connector
for HPS
(J2)
Micro USB
Connector
(J1)
Switch
(SW2)
HSMC
Connector
(J12)
External
Download
Cable JTAG
Header
(J23)
PCI Express*
Connector
(J25)
2x6 Header for
Power Monitor
(J24)
Mini USB Connector
for Onboard
Intel® FPGA
Download Cable
(J37)
RJ45
Connector 2
(J33)
RJ45
Connector 1
(J34)
D-Sub
Connector
(J35)
SMA
Connector
(J36)
2x7 Header
for HPS
(J32)
Power Switch
(SW5)
SMB Connector
(J14, J17)
Power Adapter
Input
(J40)
ATX Power
Input
(J20)
SMB Connector
(J10, J11)
SMB Connector
(J18, J19)
Mini USB Connector
for UART
(J8)
LCD
Header
(J15)
Mictor
Connector
(J4)
Switch
(SW4)
DIP Switches
(S10, S11, S12)
LEDs
(D39, D40, D41, D37,
D34, D38, D36, D35)
Switch
(SW6)
JTAG HPS SEL
(J6)
JTAG SEL
(J7)
CLKSEL0
(J26)
CLKSEL1
(J27)
BOOTSEL0
(J28)
BOOTSEL1
(J29)
BOOTSEL2
(J30)
SPI I2C
(J31)
JTAG MIC SEL
(J16)
OSC1_CLK_SEL
(J13)
J39
