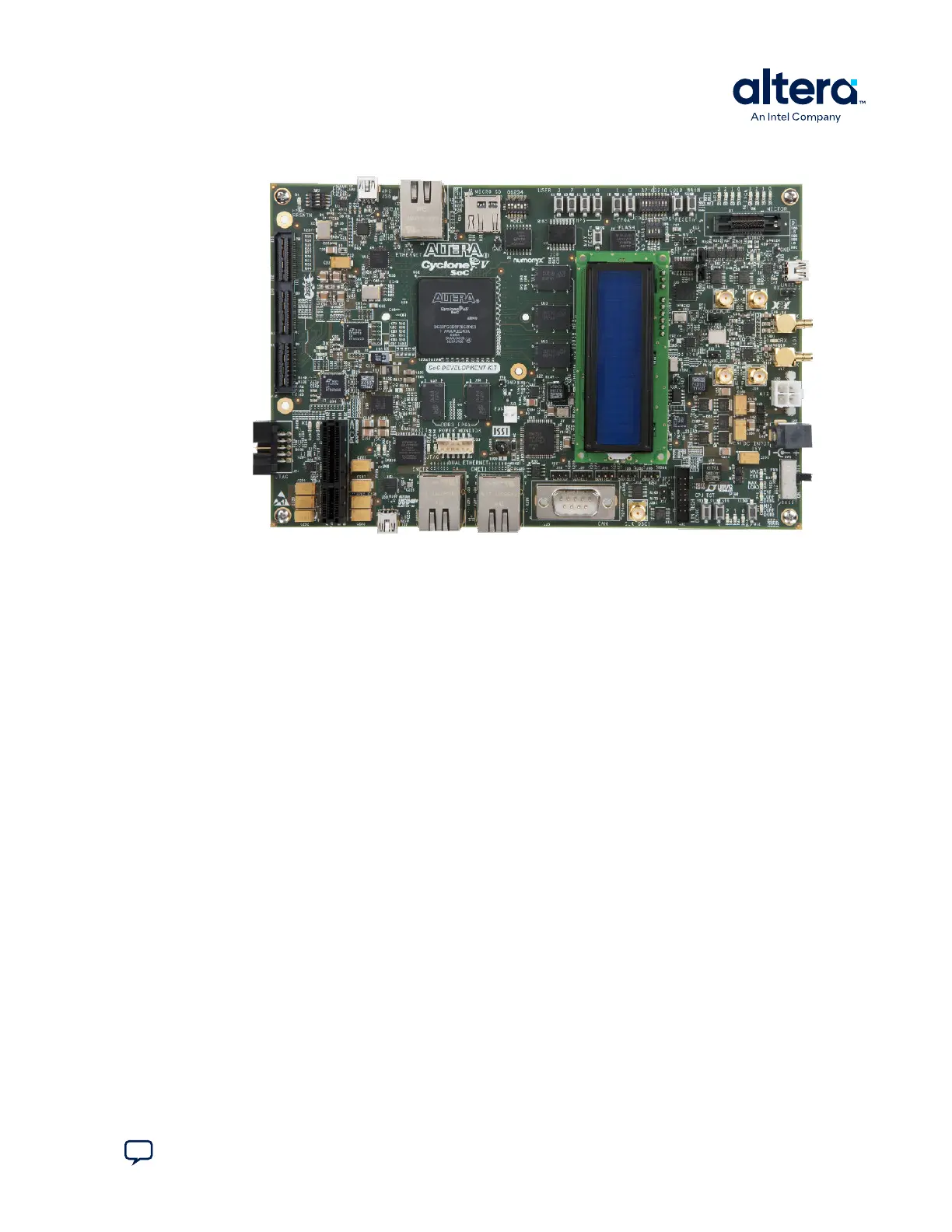

Figure 2. Cyclone V SoC Development Kit (Power Solution 1)—Top View
Refer to the Appendix A—Development Kit Components section for more details about
the components on the Cyclone V SoC Development Kit.
Related Information
Development Kit Components on page 45
1. Overview
830285 | 2024.10.07
Send Feedback
Cyclone
®
V SoC Development Kit User Guide
5
