Datasheet 79

Intel

Celeron

Processor up to 1.10 GHz

5.2 PPGA Package

This section defines the mechanical specifications and signal definitions for the Celeron processor

in the PPGA packages.

5.2.1 PPGA Package Materials Information

Figure 21 and Table 47 are provided to aid in the design of a heatsink and clip.

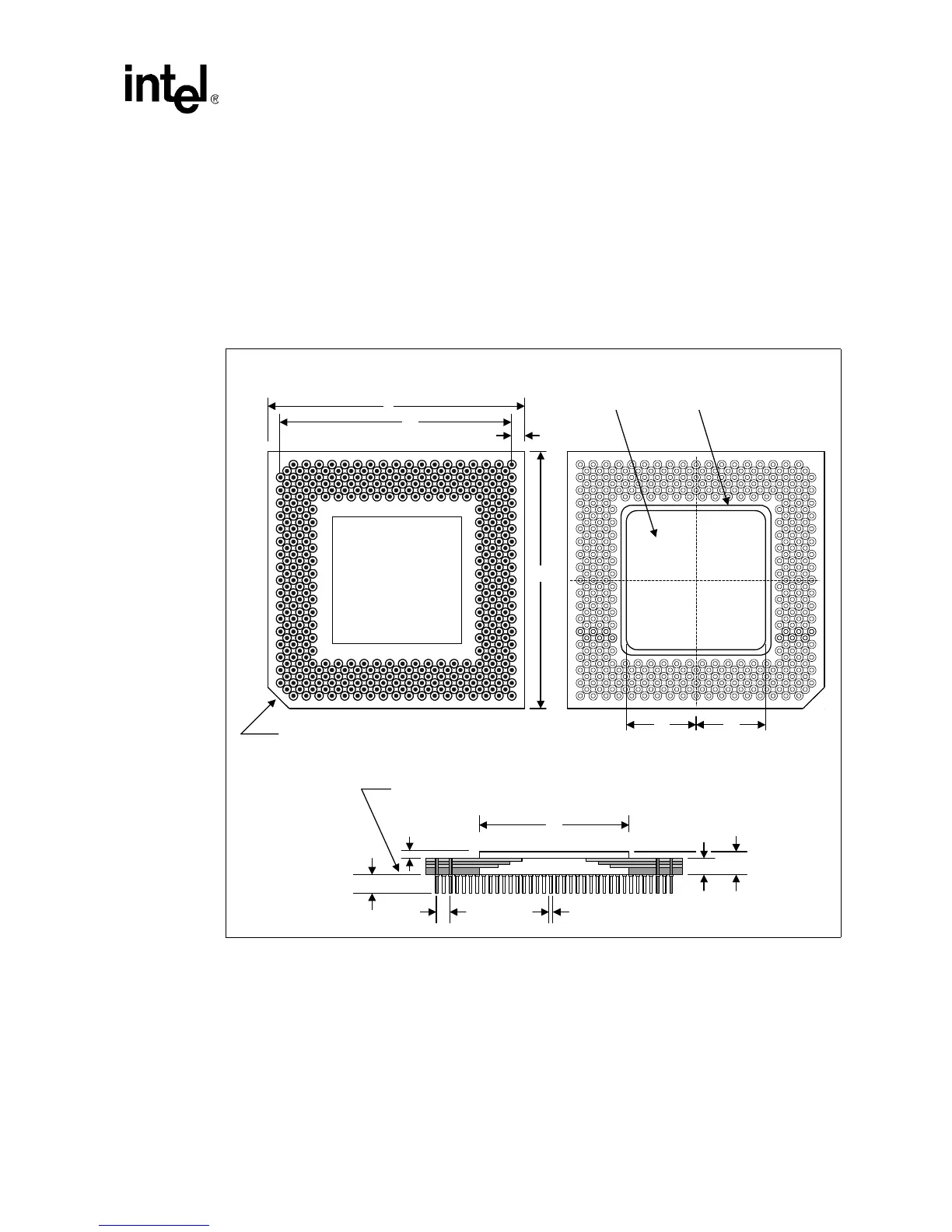

Figure 21. Package Dimensions (PPGA Package)

B1 B2

Heat Slug Solder Resist

Seating Plane

Side View

Bottom View

Top View

45° x 0.085
