Processor up to 1.10 GHz
5.3 FC-PGA/FC-PGA2 Packages
This section defines the mechanical specifications and signal definitions for the Intel Celeron
processor in the FC-PGA and FC-PGA2 packages.
5.3.1 FC-PGA Mechanical Specifications
Figure 23 is provided to aid in the design of heatsink and clip solutions as well as demonstrate
where pin-side capacitors will be located on the processor. Table 51 provides the measurements for
these dimensions in both inches and millimeters.
NOTES:
1. Unless otherwise specified, the following drawings are dimensioned in inches.
2. All dimensions provided with tolerances are guaranteed to be met for all normal production product.
3. Figures and drawings labeled as “Reference Dimensions” are provided for informational purposes only.
Reference dimensions are extracted from the mechanical design database and are nominal dimensions with
no tolerance information applied. Reference dimensions are NOT checked as part of the processor
manufacturing. Unless noted as such, dimensions in parentheses without tolerances are reference
dimensions.
4. Drawing not to scale.

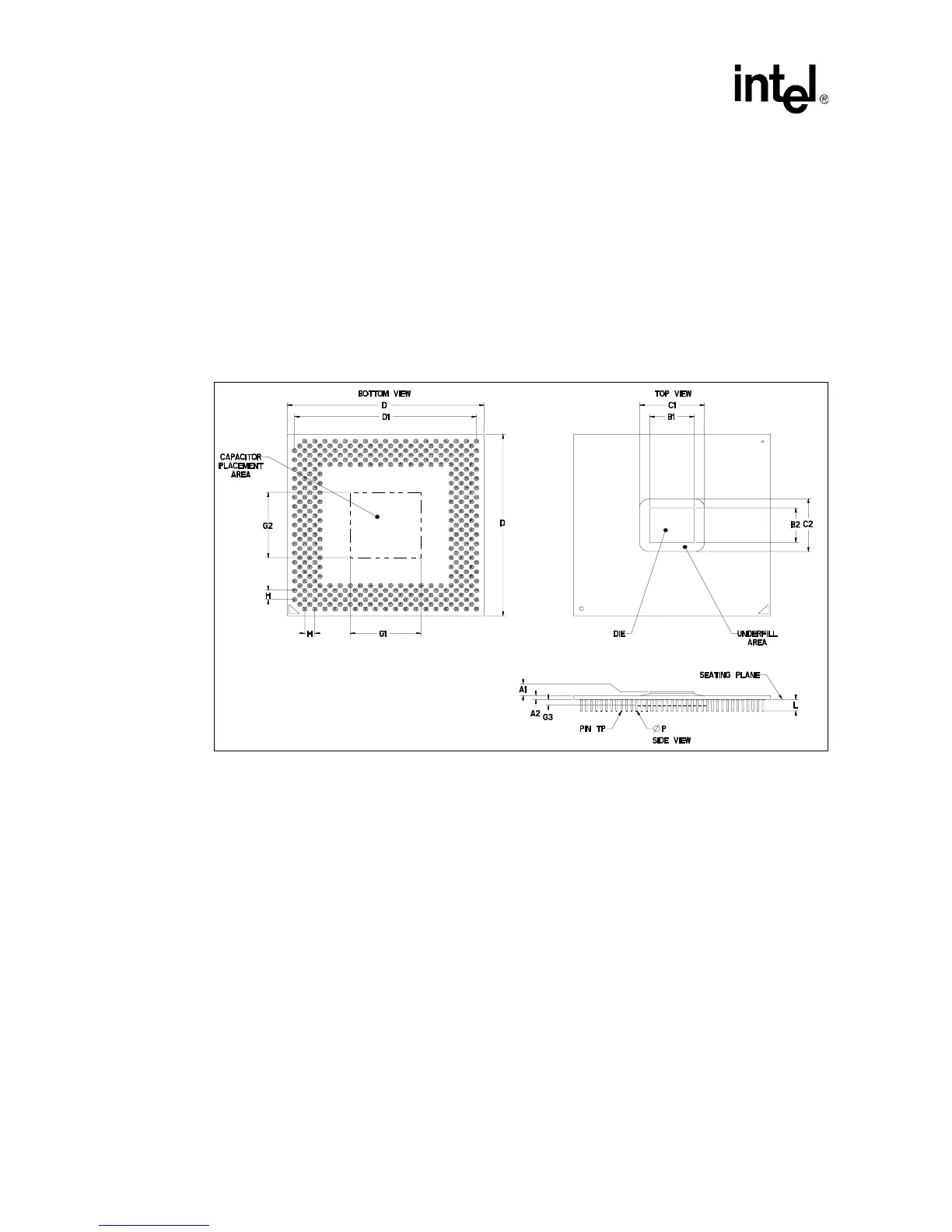

Figure 23. Package Dimensions (FC-PGA Package)
