4.5.7. I
2
C Interface Design Guidelines
GUIDELINE: Instantiate the open-drain buffer when routing I
2
C signals
through the FPGA fabric.
When routing I
2
C signals through the FPGA, note that the I
2
C pins from the HPS to the
FPGA fabric (i2c*_out_data, i2c*_out_clk) are not open-drain and are logic level
inverted. Thus, when you want to drive a logic level zero onto the I
2
C bus, these pins
are high. This implementation is useful as they can be used to tie to an output enable
of a tri-state buffer directly. You must use the altiobuf to implement the open-drain
buffer.
GUIDELINE: Ensure that the pull-ups are added to the external SDA and SCL
signals in the board design.
Because the I
2
C signals are open drain, pull-ups are required to make sure that the
bus is pulled high when no device on the bus is pulling it low.

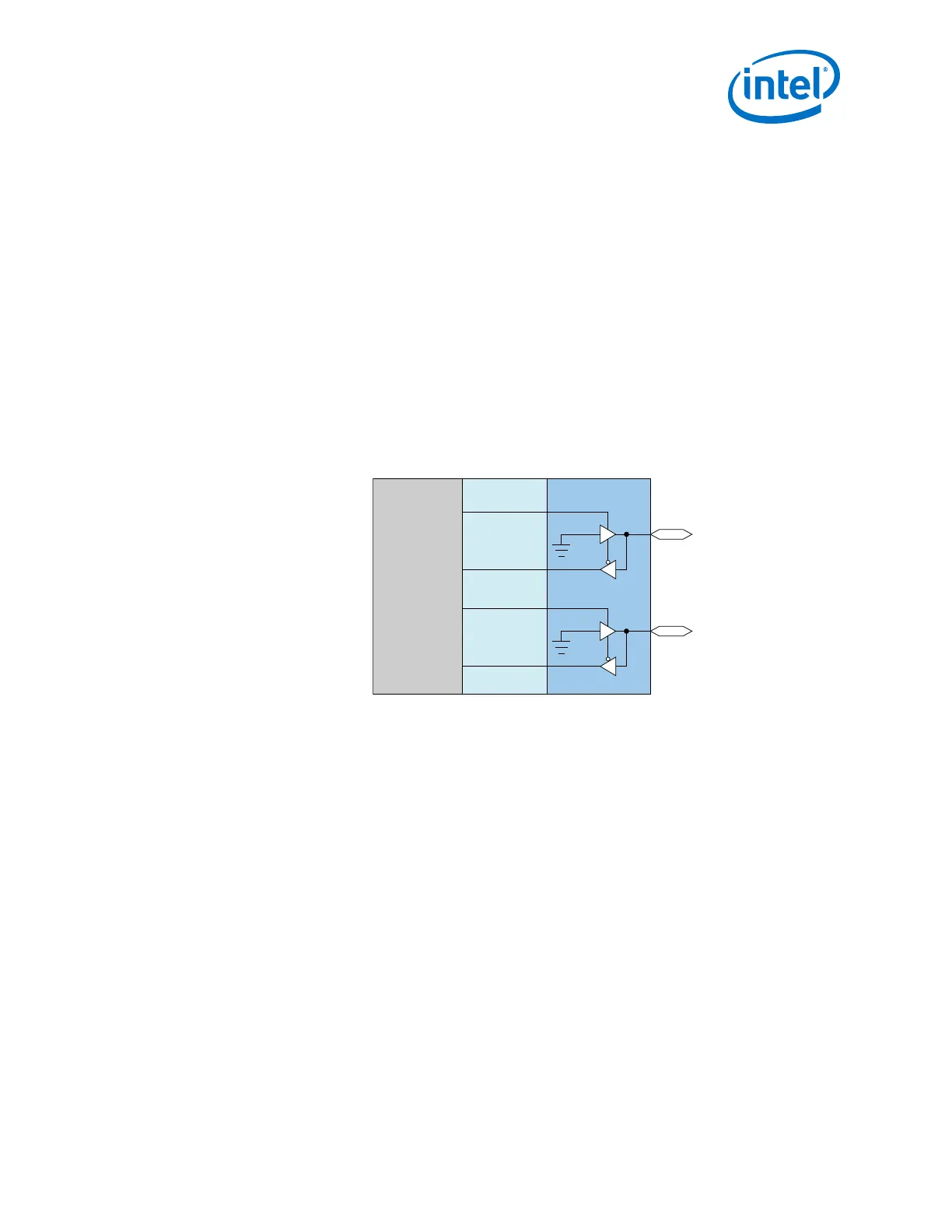

Figure 5. I
2
C Wiring to FPGA pins
i2c*_out_data
i2c*_in_data
i2c*_out_clk
i2c*_in_clk
HPS FPGA Fabric FPGA I/O
4.5.8. SPI Interface Design Guidelines
GUIDELINE: Consider routing SPI slave signals to FPGA fabric
Due to an erratum in the Cyclone V/Arria V SoC device, the SPI output enable is not
connected to the SPI HPS pins. As a result, the HPS SPIS_TXD pin cannot be tri-
stated by setting the slv_oe bit (bit 10) in the ctrlr0 register to 1.
Routing the SPI Slave signals to FPGA exposes the output enable signal and allows you
to connect it to an FPGA tri-state pin.
GUIDELINE: If your SPI peripheral requires the SPI master slave select to
stay low during the entire transaction period, consider using GPIO as slave
select, or configure the SPI master to assert slave select during the
transaction.
By default, the SPI master is configured with ctrlr0.scph = 0 and ctrlr0.scpol
= 0, which makes the Cyclone V or Arria V HPS SPI master deassert the slave select
signal between each data word. Set ctrlr0.scph to 1 and ctrlr0.scpol to 1, to
make the SPI master assert slave select for the entire duration of the transfer.
4. Board Design Guidelines for SoC FPGAs
AN-796 | 2018.06.18
AN 796: Cyclone V and Arria V SoC Device Design Guidelines
47

Intel Cyclone V Specifications

General

FPGA Family	Cyclone V
Logic Elements	25K to 301K
Transceivers	Up to 12
Processor	Dual-core ARM Cortex-A9
Process Technology	28 nm
Embedded Memory	M10K blocks
Operating Temperature	0°C to +85°C (Commercial), -40°C to +100°C (Industrial), -40°C to +125°C (Automotive)
Power Consumption	Varies by configuration and usage
Maximum User I/O	Up to 524
