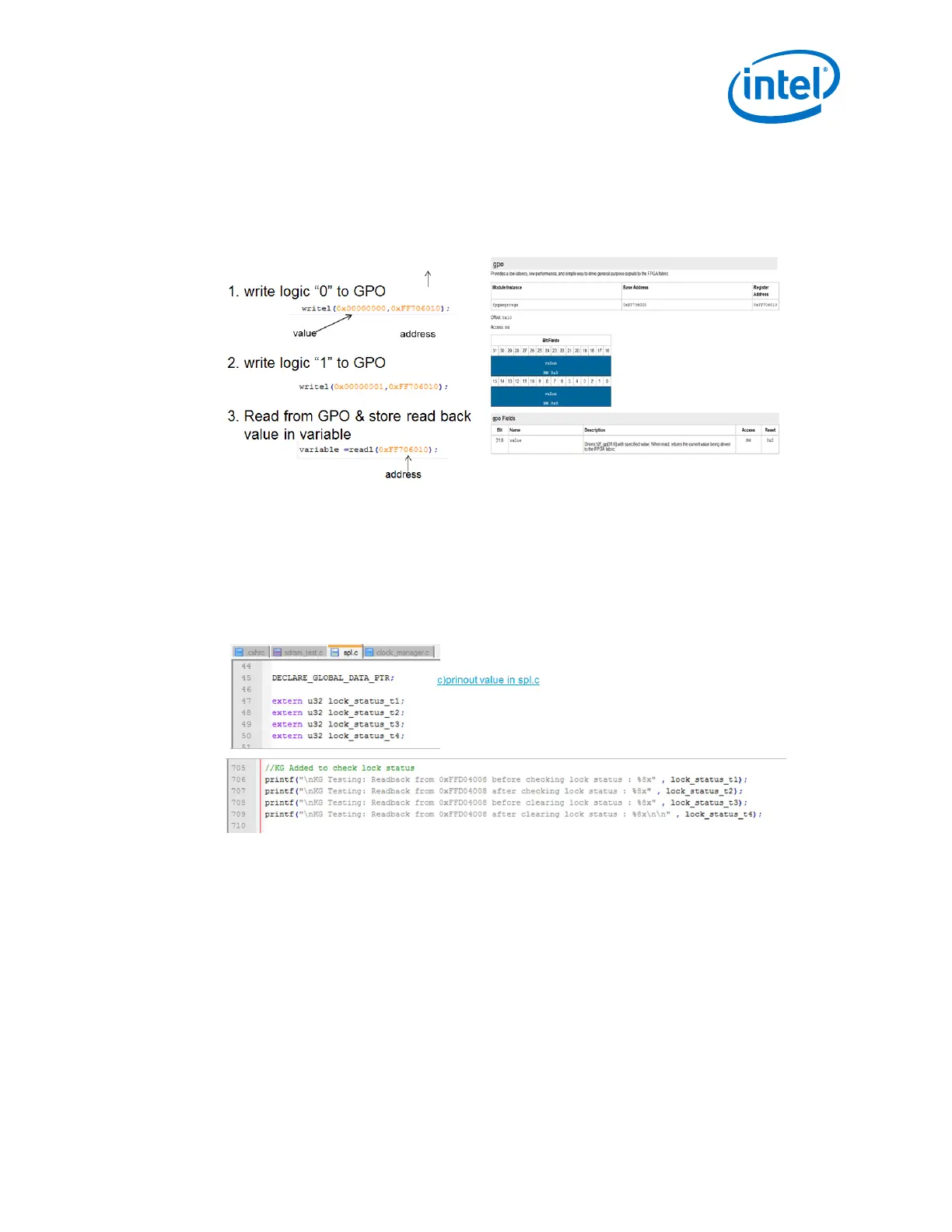

writel(value, address);
2.
readl to read from HPS register
•
readl(address);
For example:
5.4.1.7. Check HPS PLL Lock Status in Preloader
•
Read HPS PLL Status Register in clock_manager.c and print out in spl.c
—
Define global variable in clock_manager.c and “extern variable” in spl.c
—
Unable to printout value in clock_manager.c as the UART has not been
initialized yet
5.4.2. Access HPS SDRAM via the FPGA-to-SDRAM Interface
The HPS bridges can be enabled from the Preloader (SPL/MPL) or U-Boot and in some
cases from Linux.
Note: Preloaders (SPL) and U-Boot generated from SoC EDS 13.1 and later contain extra
functionality and built in functions to safely enable the HPS bridges.
To enable the HPS FPGA-to-SDRAM bridge from the Preloader or U-Boot, follow the
appropriate steps.
5. Embedded Software Design Guidelines for SoC FPGAs
AN-796 | 2018.06.18
AN 796: Cyclone V and Arria V SoC Device Design Guidelines
67

Intel Cyclone V Specifications

General

FPGA Family	Cyclone V
Logic Elements	25K to 301K
Transceivers	Up to 12
Processor	Dual-core ARM Cortex-A9
Process Technology	28 nm
Embedded Memory	M10K blocks
Operating Temperature	0°C to +85°C (Commercial), -40°C to +100°C (Industrial), -40°C to +125°C (Automotive)
Power Consumption	Varies by configuration and usage
Maximum User I/O	Up to 524
