Intel® Reference Thermal Solution—Intel
®
Core
TM
2 Duo E6400, E4300, and Intel
®
Pentium
®
Dual-Core E2160 Processor
Based on lab test data, the case-to-ambient (Ψ
CA
) performance of heatsink was found
to be 0.356 °C/W with 18 CFM of airflow through the heatsink fins. This will allow a
maximum T
LA
of 39 °C and meet the processors Thermal Profile specification as
described in the processor datasheet. The estimated performance for additional
airflows is shown in Figure 12.

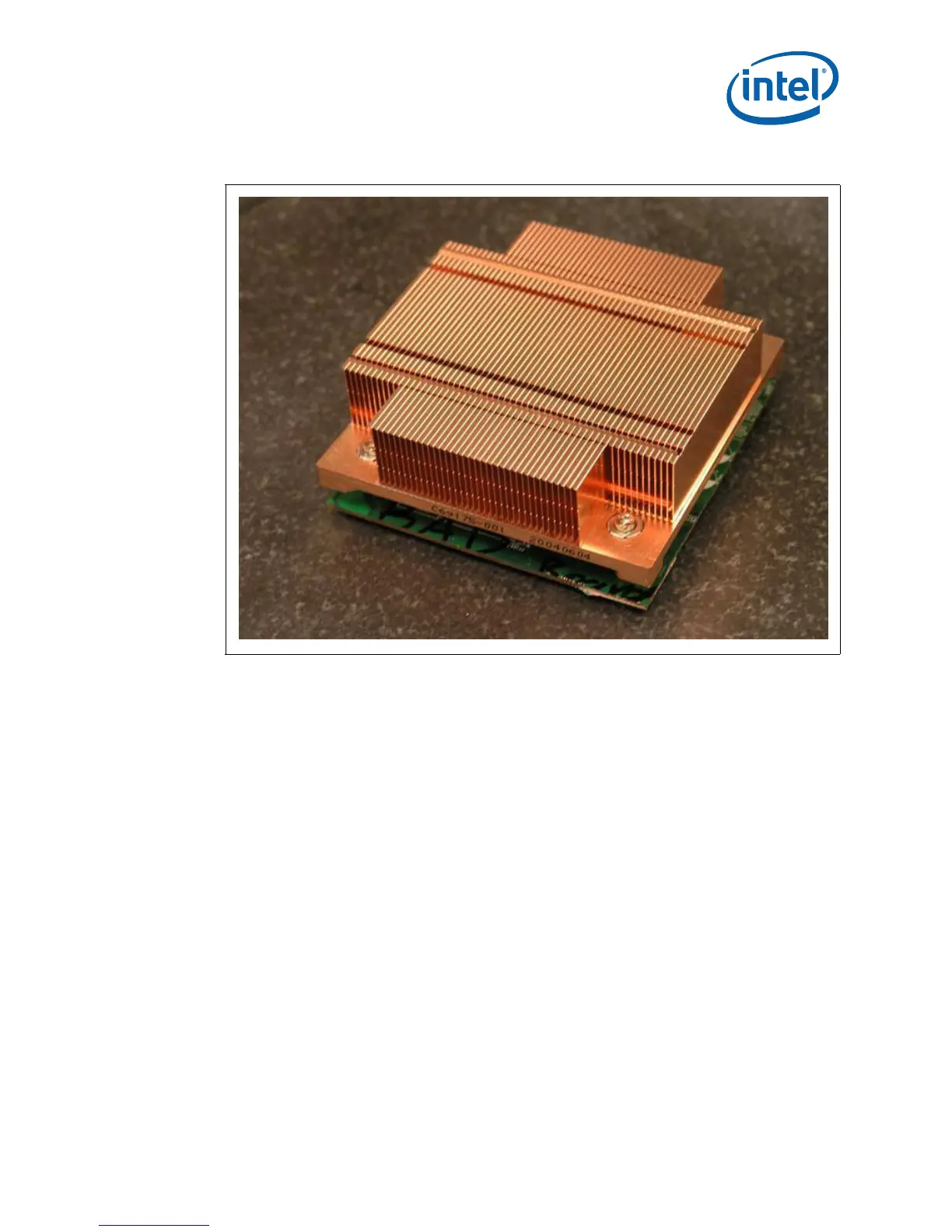

Figure 11. PICMG 1.3 Copper Heatsink
