Intel
®
Core
TM
2 Duo E6400, E4300, and Intel
®
Pentium
®
Dual-Core E2160 Processor
October 2007 TDG
Order Number: 315279 - 003US 55
Mechanical Drawings—Intel
®
Core
TM
2 Duo E6400, E4300, and Intel
®
Pentium
®
Dual-Core
E2160 Processor

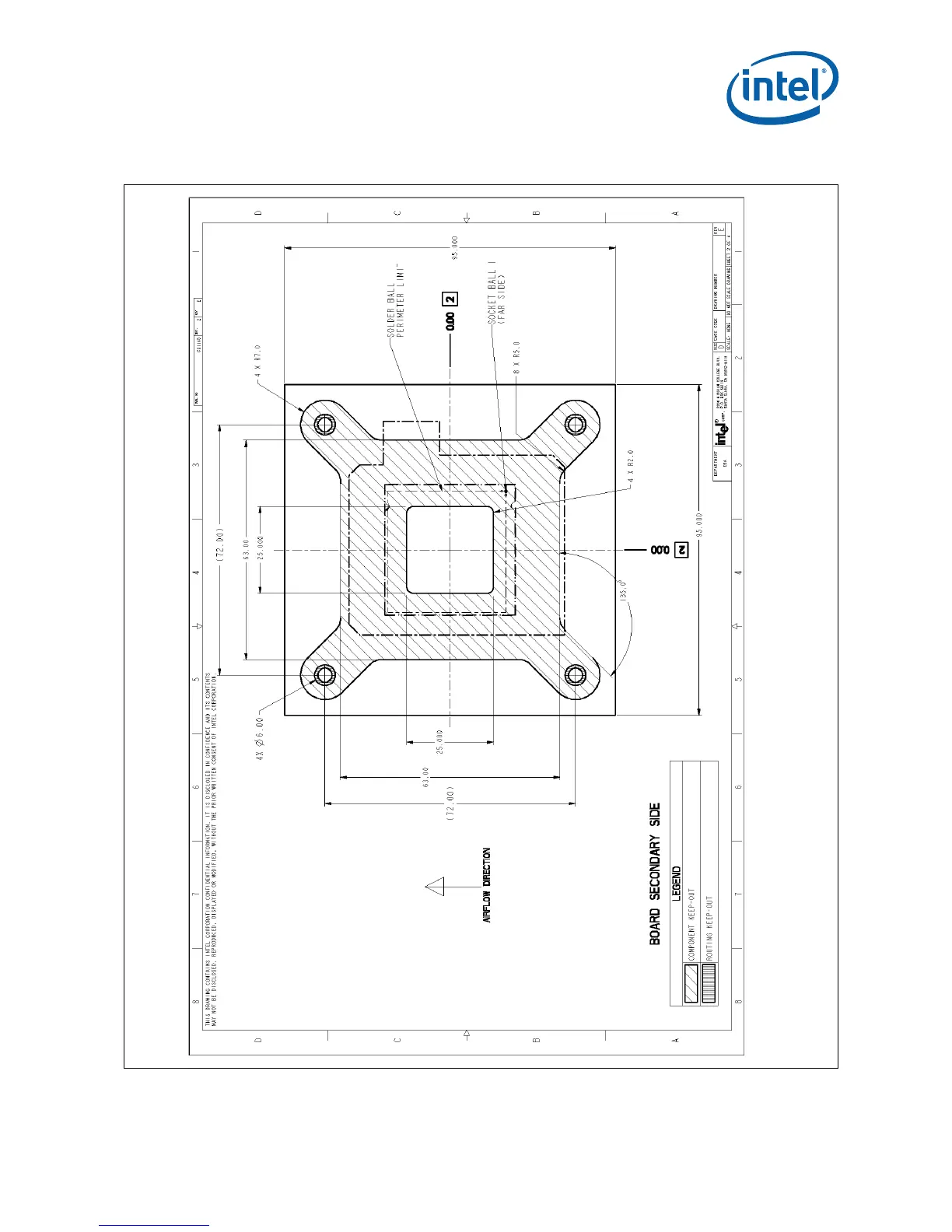

Figure 21. PICMG 1.3 Motherboard Keep-out, Secondary Side
