Intel
®
Core
TM
2 Duo E6400, E4300, and Intel
®
Pentium
®
Dual-Core E2160 Processor—LGA775
Socket Heatsink Loading
Intel
®
Core
TM
2 Duo E6400, E4300, and Intel
®
Pentium
®
Dual-Core E2160 Processor
TDG October 2007
46 Order Number: 315279 - 003US
A.2.3 Board Deflection Limits
Deflection limits for the ATX/µATX form factor are:
d_BOL - d_ref
≥ 0.09 mm and d_EOL - d_ref ≥ 0.15 mm
and
d'_BOL - d'_ref
≥ 0.09 mm and d_EOL' - d_ref' ≥ 0.15 mm
Note:
1. The heatsink preload must remain within the static load limits defined in the
processor datasheet at all times.
2. Board deflection should not exceed motherboard manufacturer specifications.

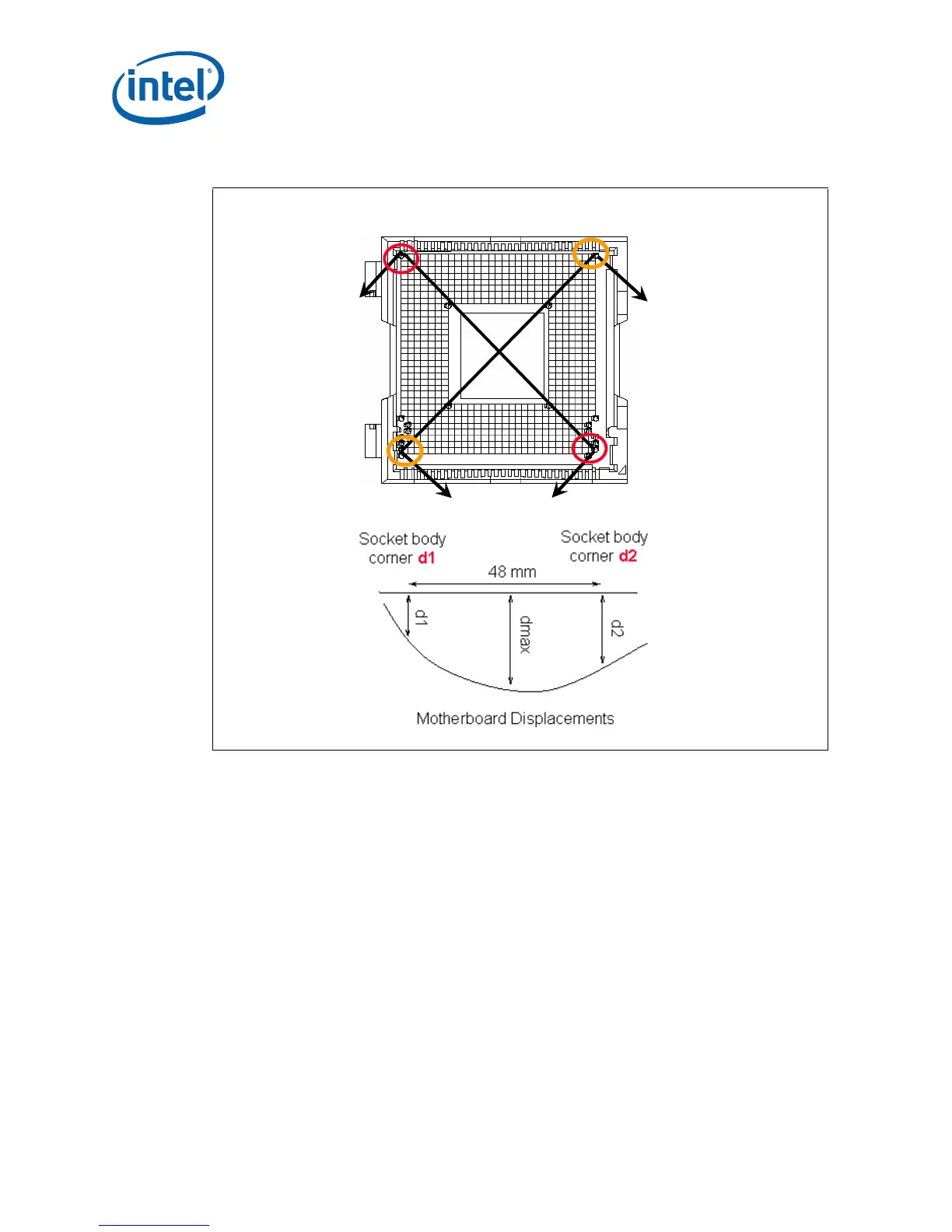

Figure 18. Board Deflection Definition
d1
d2
d’1
d’2
