Intel NUC5PGYH

Intel NUC Board NUC5PGYH Technical Product Specification
26
1.9.1 Mini-TOSLINK Interface
The 3.5 mm audio jack also provides TOSLINK optical digital audio output.
• Mini-TOSLINK interface (back panel) plus analog audio out
 PCM datastream support
 S/PDIF datastream support
 Mini-TOSLINK adaptor necessary to connect to standard TOSLINK cable
 Stereo audio out

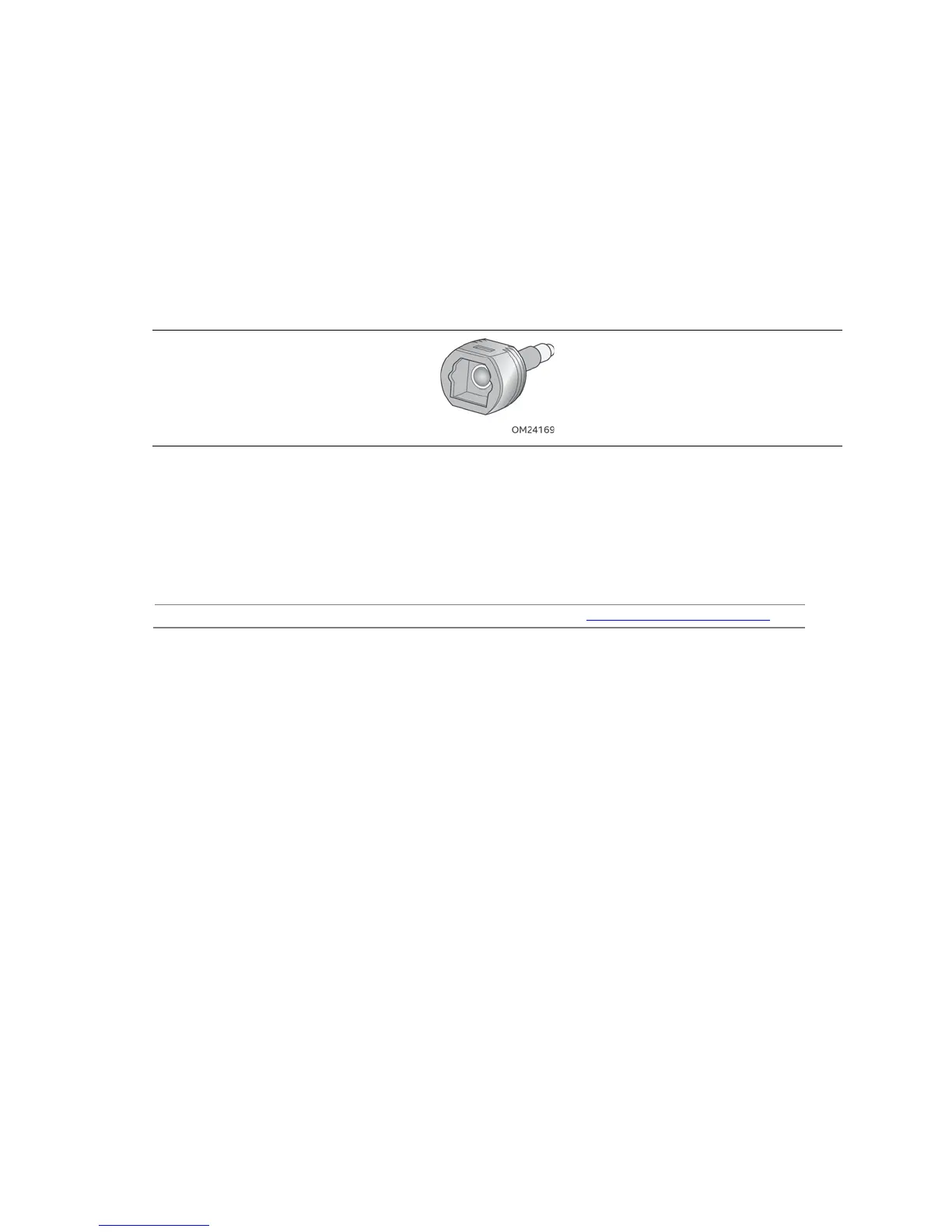

Figure 6. Mini-TOSLINK Adaptor
1.9.2 Audio Subsystem Software
Audio software and drivers are available from Intel’s World Wide Web site.
For information about
Refer to
Obtaining Audio software and drivers
http://downloadcenter.intel.com
