Intel NUC Board NUC5PGYH Technical Product Specification
48
2.2.4.6 Consumer Infrared (CIR) Sensor
The Consumer Infrared (CIR) sensor on the front panel provides features that are designed to
comply with Microsoft Consumer Infrared usage models.
The CIR feature is made up of the receiving sensor. The receiving sensor consists of a filtered
translated infrared input compliant with Microsoft CIR specifications.
Customers are required to provide their own media center compatible remote or smart phone

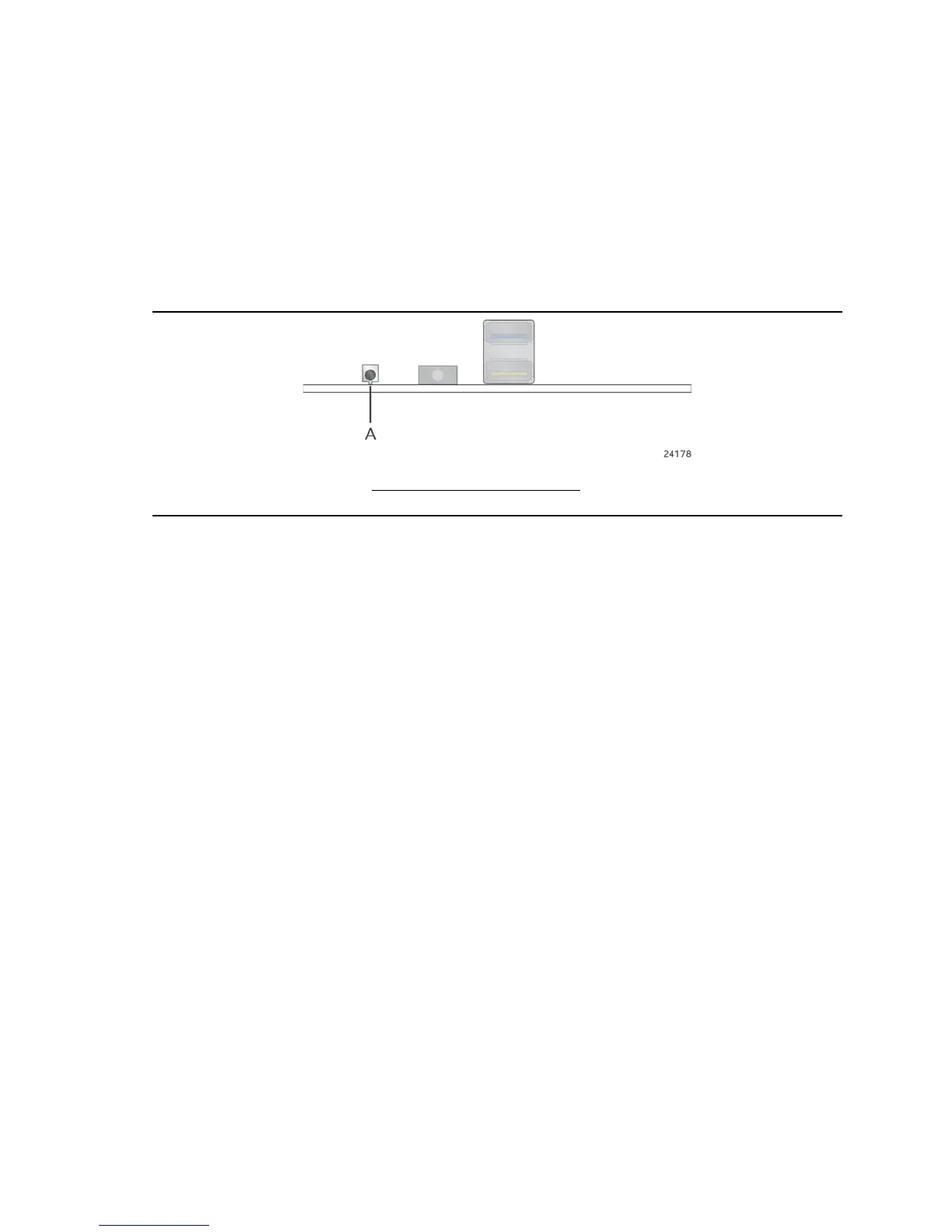

application for use with the Intel NUC. Figure 15 shows the location of the CIR sensor.
A CIR Sensor
Figure 15. Location of the CIR Sensor
