Intel NUC5PGYH

Intel NUC Board NUC5PGYH Technical Product Specification
38
2.2.1 Front Panel Connectors

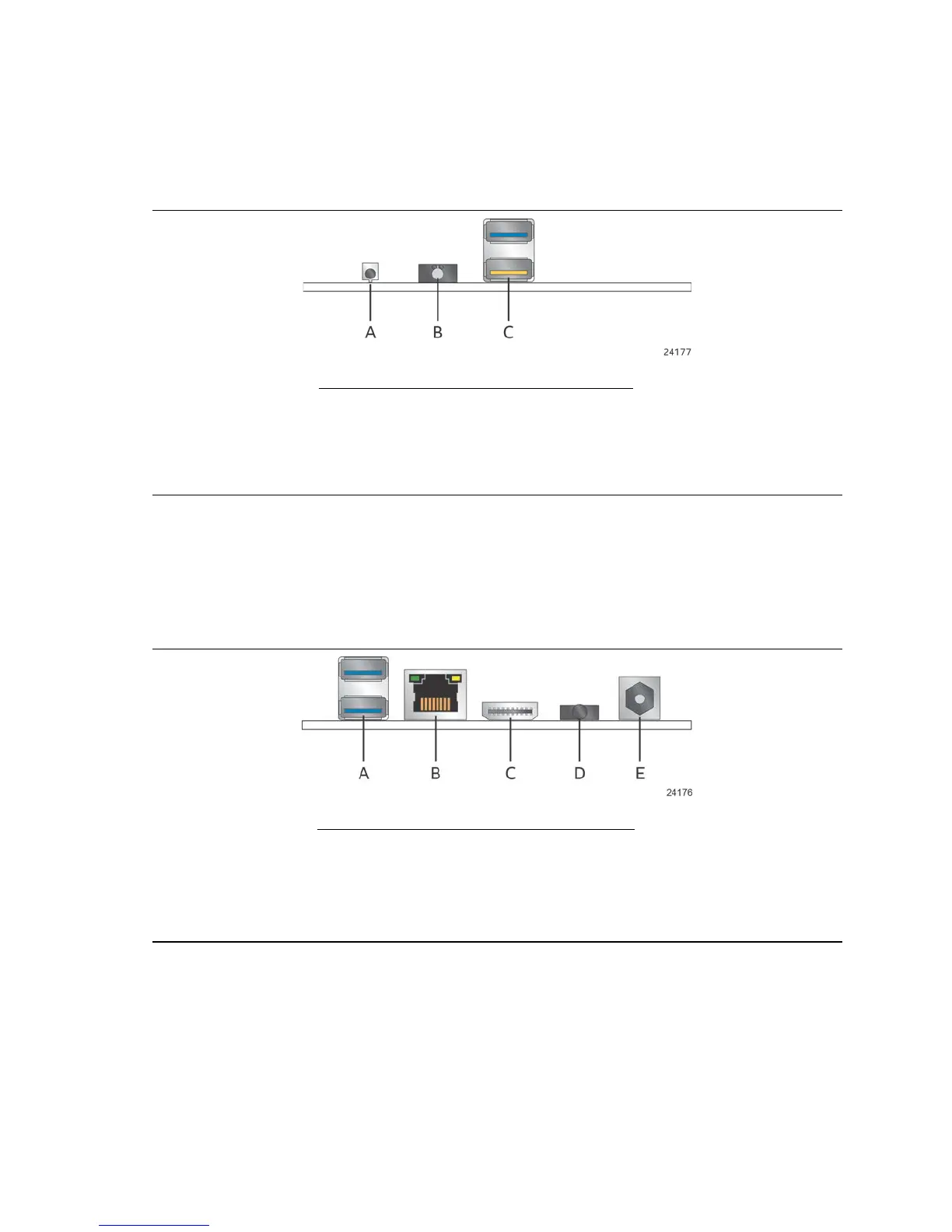

Figure 10 shows the location of the front panel connectors for the board.
Item
Description
A
CIR
B Front panel Stereo
microphone/headphone jack
C USB 3.0 ports (one blue and one
orange charging capable)
Figure 10. Front Panel Connectors
2.2.2 Back Panel Connectors
Figure 11 shows the location of the back panel connectors for the board.
Item Description
A USB 3.0 ports
B LAN
C HDMI connector
D Back panel TOSLINK stereo
E
12 - 19V DC input jack
Figure 11. Back Panel Connectors
