Intel NUC Board NUC5PGYH Technical Product Specification
28
1.10.3 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (shown in Figure 7).
Item
Description
A
Link LED (Green)
B Data Rate LED (Green/Yellow)

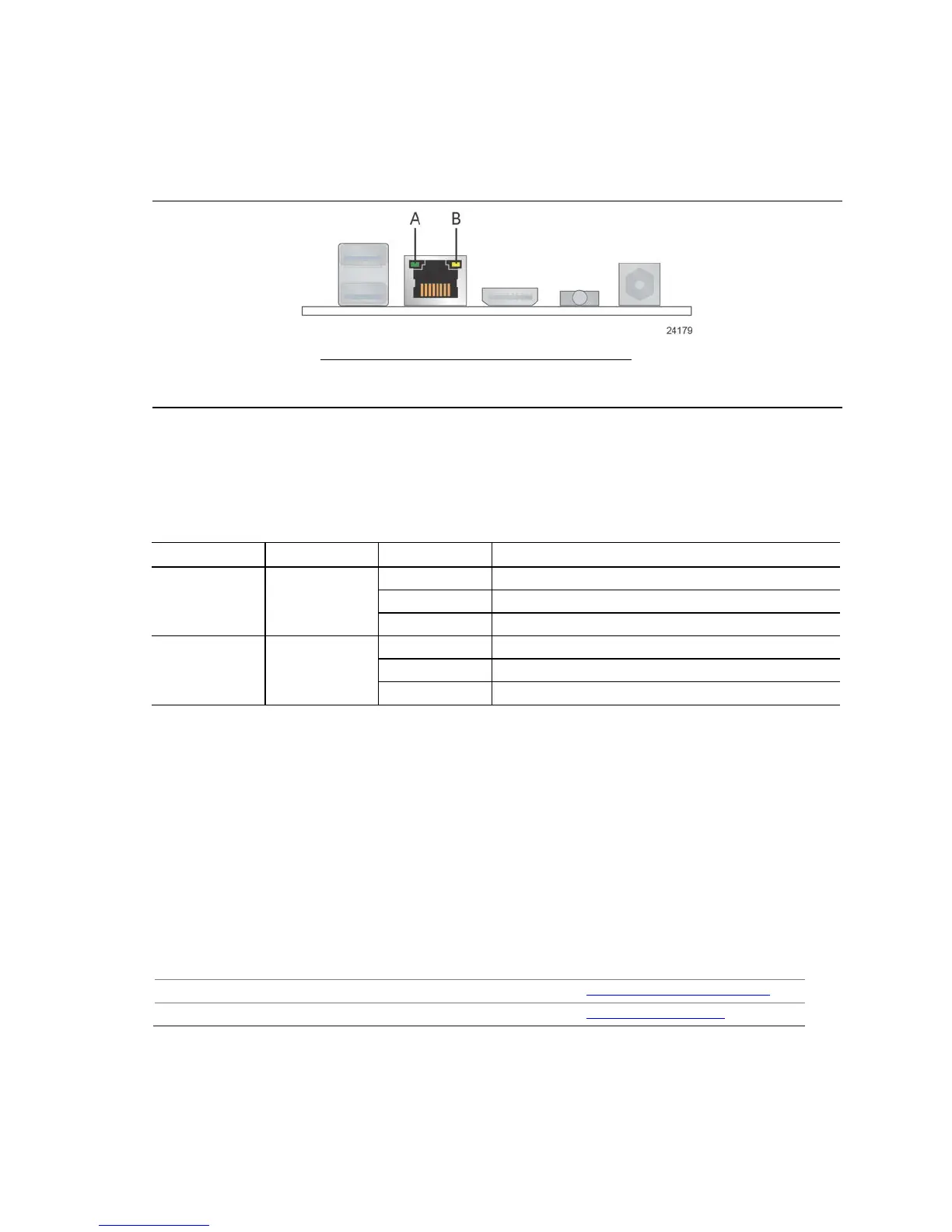

Figure 7. LAN Connector LED Locations
Table 5 describes the LED states when the board is powered up and the LAN subsystem is
operating.
Table 5. LAN Connector LED States
LED
LED Color
LED State
Condition
Link (A) Green
Off LAN link is not established.
On LAN link is established.
Blinking
LAN activity is occurring.
Data Rate (B) Green/Yellow
Off
10 Mb/s data rate is selected.
Green 100 Mb/s data rate is selected.
Yellow 1000 Mb/s data rate is selected.
1.10.4 Wireless Network Module
The Intel Dual Band Wireless-AC 3165 module provides hi-speed wireless connectivity with the
following capabilities:
• Intel® Dual Band Wireless-AC 3165 module
• 2nd Gen 802.11ac, Dual Band, 1x1 Wi-Fi + Dual Mode Bluetooth* 4.0
• Maximum Transfer speed up to 433Mbps
• Supports Intel® Wireless Display (WiDi)
• Supports Intel® Smart Connect Technology
• Pre-installed in M.2 2230 slot
For information about
Refer to
Obtaining WLAN software and drivers
http://downloadcenter.intel.com
Full Specifications
http://intel.com/wireless
