Intel NUC5PGYH Technical Product Specification

Technical Reference
53

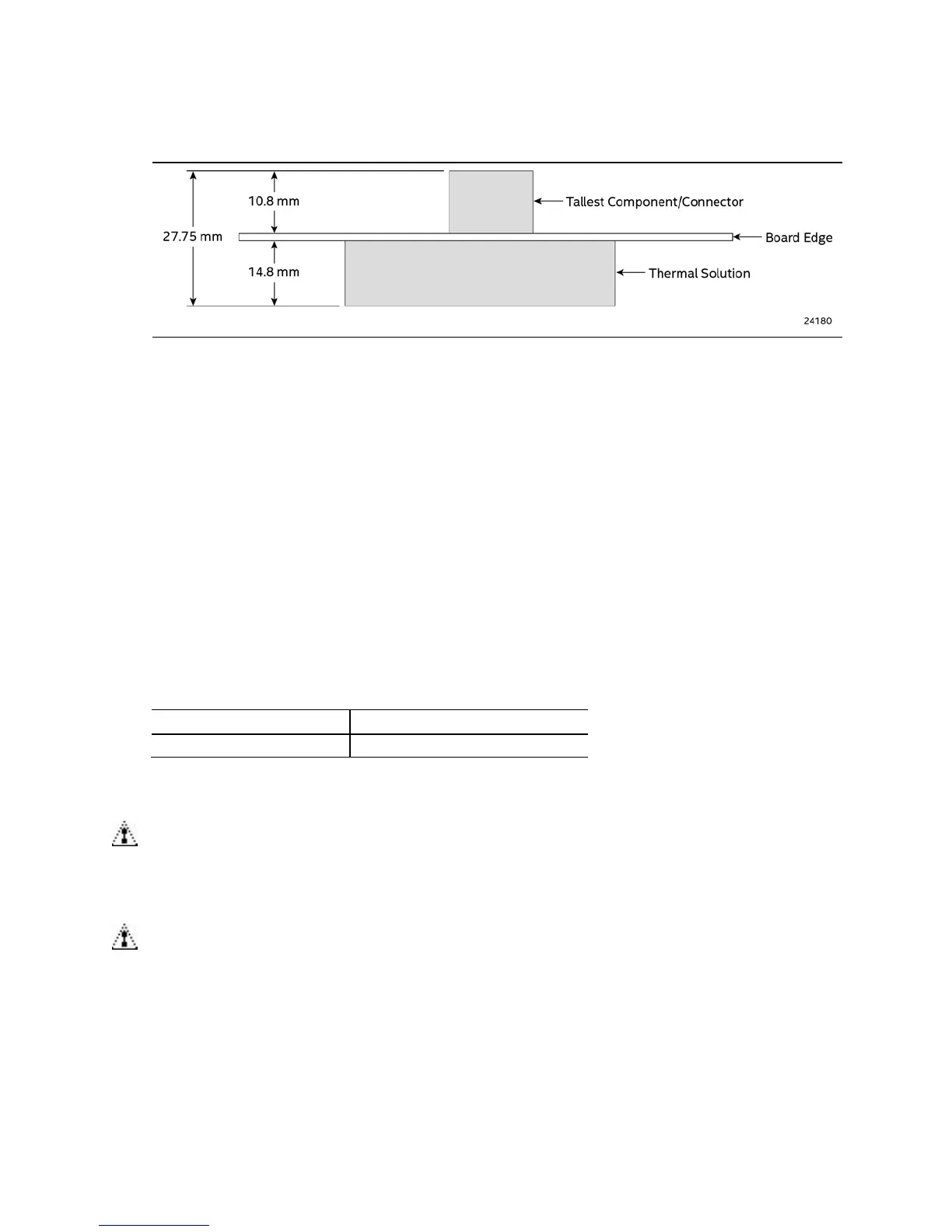

Figure 19 shows the height dimensions of the board.
Figure 19. Board Height Dimensions
2.5 Electrical Considerations
2.5.1 Power Supply Considerations
System power requirements will depend on actual system configurations chosen by the
integrator, as well as end user expansion preferences. It is the system integrator’s responsibility
to ensure an appropriate power budget for the system configuration is properly assessed based
on the system-level components chosen.
2.5.2 Fan Header Current Capability
Table 21 lists the current capability of the fan header.
Table 21. Fan Header Current Capability
Fan Header
Maximum Available Current
Processor fan
.25 A
2.6 Thermal Considerations
CAUTION
A chassis with a maximum internal ambient temperature of 58
o
C at the processor fan inlet is
recommended. If the internal ambient temperature exceeds 58
o
C, further thermal testing is
required to ensure components do not exceed their maximum case temperature.
CAUTION
Failure to ensure appropriate airflow may result in reduced performance of both the processor
and/or voltage regulator or, in some instances, damage to the board.
All responsibility for determining the adequacy of any thermal or system design remains solely
with the system integrator. Intel makes no warranties or representations that merely following the
instructions presented in this document will result in a system with adequate thermal performance.

Intel NUC5PGYH Specifications

General

Status	Discontinued
BIOS type	EEPROM
Product type	Mini PC
Motherboard chipset	-
Audio output channels	7.1 channels
Motherboard form factor	UCFF
Removable memory card slot	SDXC with UHS-I support
Supported RAID configuration	N/A
Trusted Platform Module (TPM)	No
HDD size	2.5 \
Storage media	Flash
Card reader integrated	Yes
Total storage capacity	32 GB
Compatible memory cards	SDXC
Embedded storage capacity	32768 MB
Number of storage drives installed	1
Power supply	65 W
DC input voltage	12 - 19 V
Power supply input voltage	19 V
Bus type	DMI
Stepping	C0
Tjunction	90 °C
Product family	Intel NUC
Product series	Intel NUC kit
Processor cache	2 MB
Processor cores	4
Processor model	N3700
System bus rate	2.5 GT/s
Processor family	Intel Pentium N
Processor series	Intel® Pentium N3000 Series for Mobile
Processor socket	BGA 1170
Product codename	Grass Canyon
Processor codename	Braswell
Processor frequency	1.6 GHz
Processor cache type	L2
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	2.4 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2, 1x4, 2x2, 2x1, 4x1
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4 W
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
Memory bandwidth supported by processor (max)	12.8 GB/s
Maximum internal memory supported by processor	8 GB
Processor code	SR29E
Processor ARK ID	87261
Processor package size	25 x 27 mm
Intel Smart Connect Technology version	0.00
Intel Identity Protection Technology version	1.00
Chassis type	Nettop
Product color	Black, Silver
Cable lock slot type	Kensington
Number of execution units	16
Discrete graphics card model	Not available
Number of displays supported	2
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	700 MHz
Number of displays supported (on-board graphics)	3
ARK ID	88065
Form factor	UCFF (4\
Audio channels	7.1
Graphics output	VGA (HDB15); HDMI 1.4b
Additional headers	2x USB2.0, AUX_PWR
USB ports quantity	6
Maximum internal memory	8192 MB
Optical drives quantity	0
Export Control Classification Number (ECCN)	5A992C
Intel® Virtualization Technology (Intel® VT)	VT-x, VT-d
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Memory slots	1x SO-DIMM
Internal memory	2 GB
Memory channels	Single-channel
Memory layout (slots x size)	1 x 2 GB
Operating system installed	Windows 10
Pre-installed operating system	Windows 10, 64-bit*
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
HDMI version	1.4b
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
M.2 card slot (wireless)	2230 (E-key)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 3165
Ethernet LAN data rates	10, 1000, 100 Mbit/s
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	-20 - 70 %
Sustainability certificates	RoHS
Certification	IEC, UL, EN, CAN/CSA-C22.2, CISPR 22, FCC, ICES-003, EN, VCCI V3, KN, CNS, WEEE
Processor included	Intel® Pentium® Processor N3700 (2M Cache, up to 2.40 GHz)
Market segment	Desktop
Last change	63903513
Built-in WiFi	Intel Wireless-AC 3165 + Bluetooth 4.2
Supported storage drives form factor (internal)	2.5\
Harmonized System (HS) code	8471500150

Weight and Dimensions

Depth	111 mm
Width	115 mm
Height	51.6 mm
Weight	- g
