Intel NUC Board NUC5PGYH Technical Product Specification
30
1.11.3 Thermal Solution

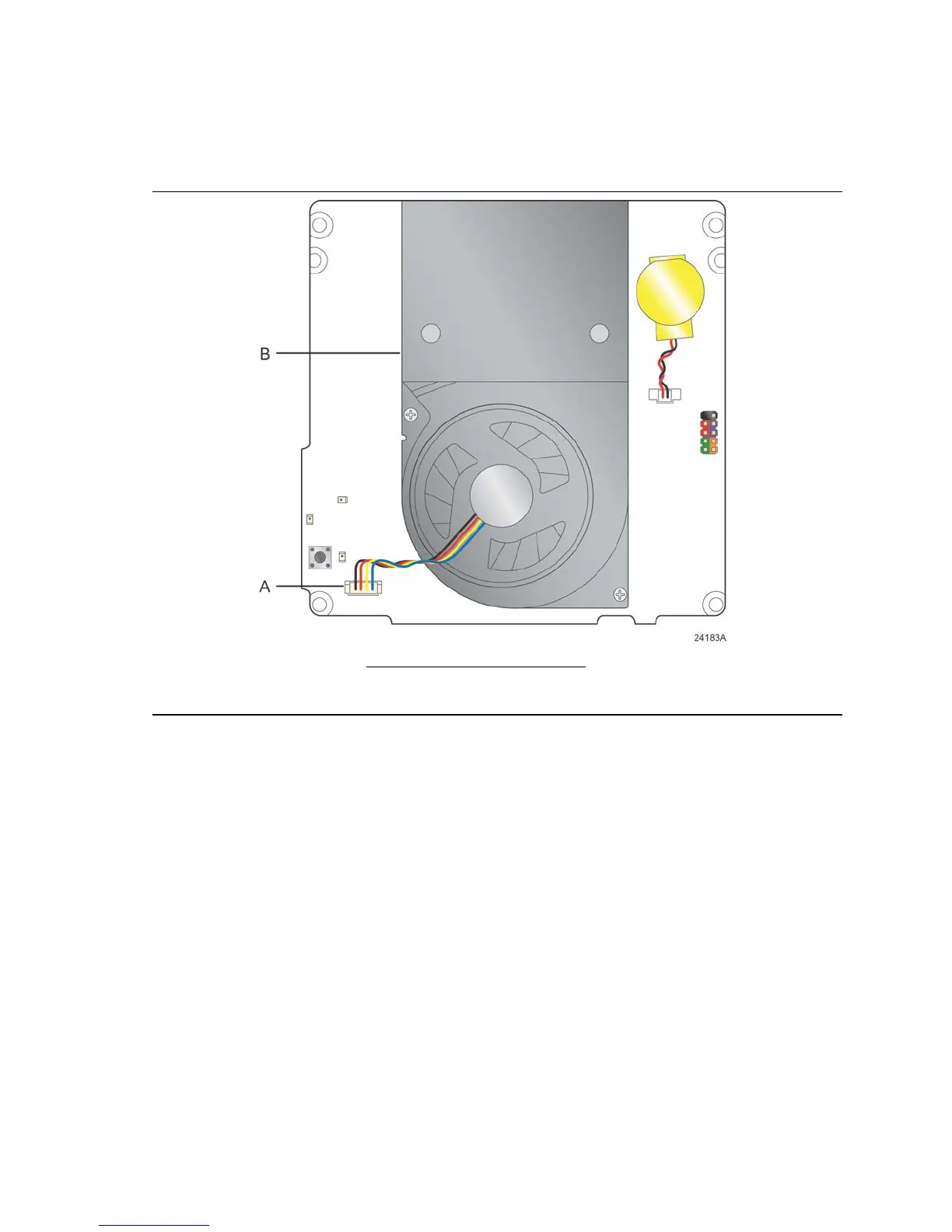

Figure 8 shows the location of the thermal solution and processor fan header.
Item
Description
A
Processor fan header
B
Thermal solution
Figure 8. Thermal Solution and Fan Header
