Intel NUC5PGYH

Intel NUC Board NUC5PGYH Technical Product Specification
54
CAUTION
Ensure that the ambient temperature does not exceed the board’s maximum operating
temperature. Failure to do so could cause components to exceed their maximum case
temperature and malfunction. For information about the maximum operating temperature, see
the environmental specifications in Section 2.8.
CAUTION
The processor voltage regulator area (shown in Figure 20) can reach a temperature of up to
97.5
o
C in an open chassis. Ensure that proper airflow is maintained in the processor voltage
regulator circuit. Failure to do so may result in shorter than expected product lifetime.

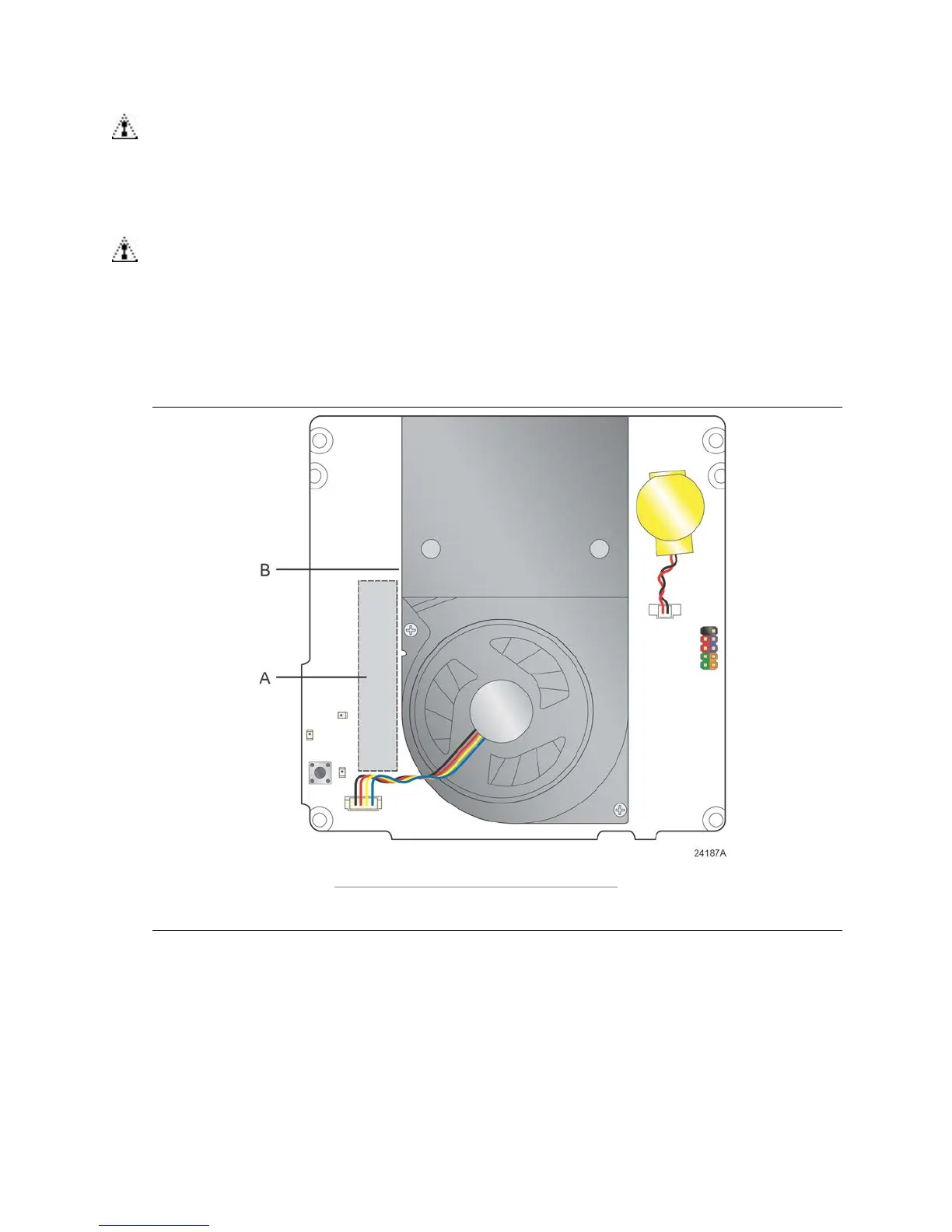

Figure 20 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Thermal solution
Figure 20. Localized High Temperature Zones
