2.2.4.7 Internal USB 2.0 Dual-Port Header (1.25 mm Pitch)
Figure 16 is a connection diagram for the internal USB header.
Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface mount,
vertical, lead-free, 8 circuits.
NOTE
• The +5 V DC power on the USB header is fused.
• Use only an internal USB connector that conforms to the USB 2.0 specification for high-speed
USB devices.

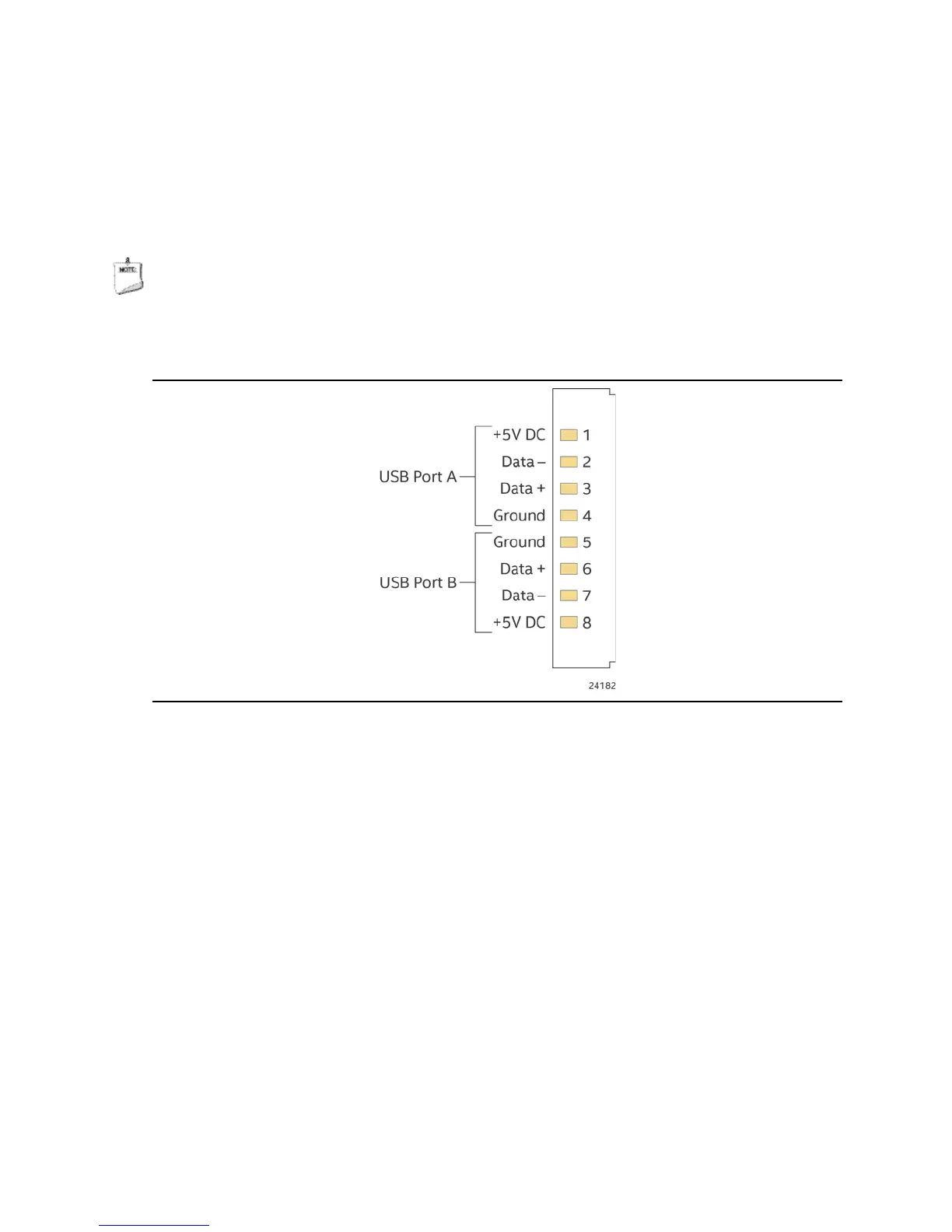

Figure 16. Connection Diagram for Internal
USB 2.0 Dual-Port Header (1.25 mm Pitch)
