Intel NUC Board NUC5PGYH Technical Product Specification
52
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a custom chassis. Figure 18 illustrates the mechanical form factor
for the board. Dimensions are given in millimeters. The outer dimensions are 101.60 millimeters
by 101.60 millimeters [4.0 inches by 4.0 inches].

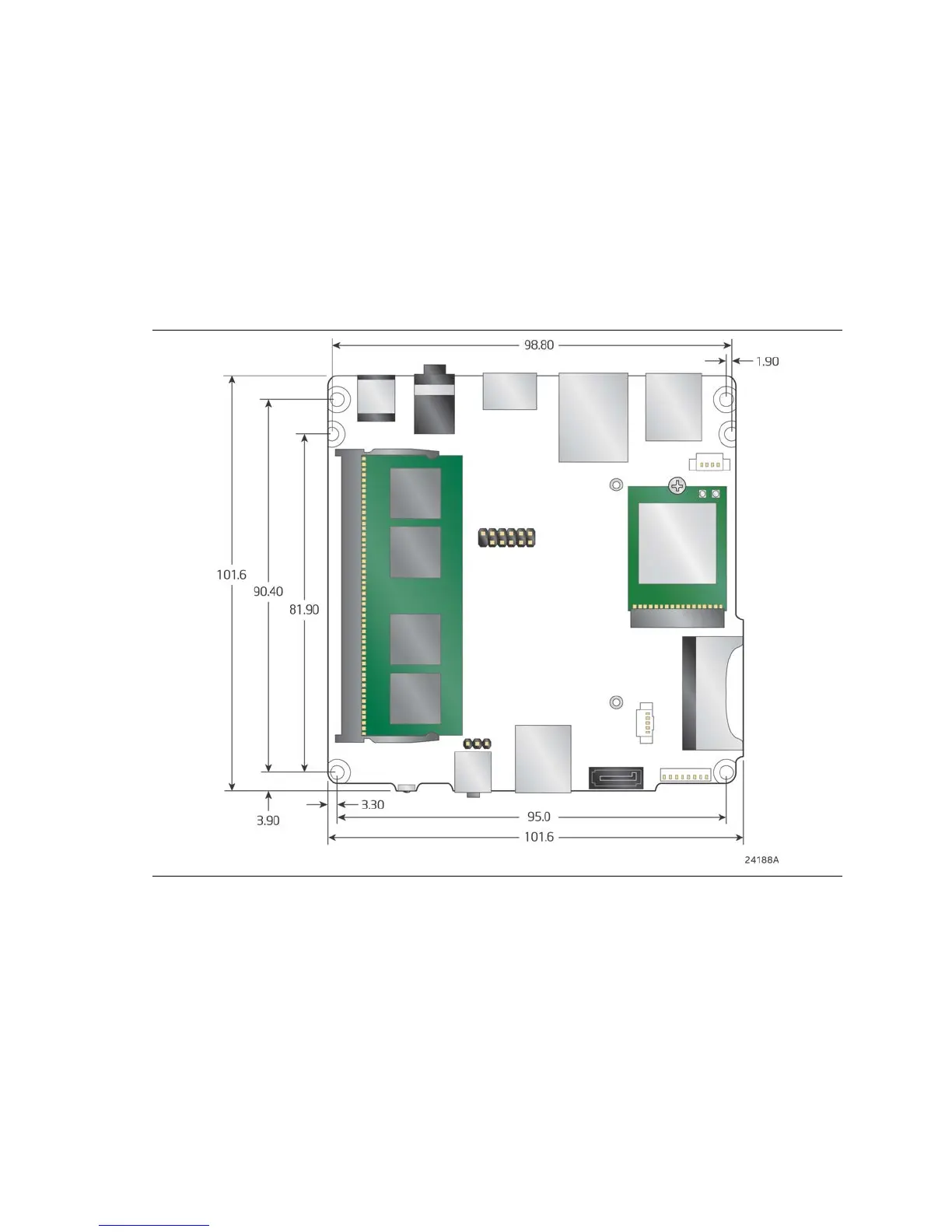

Figure 18. Board Dimensions
