Server Board S5500BC TPS Product Overview

Revision 1.0 Intel order number: E42249-003 13

2.2.3 Intel

Light-Guided Diagnostic LED Locations

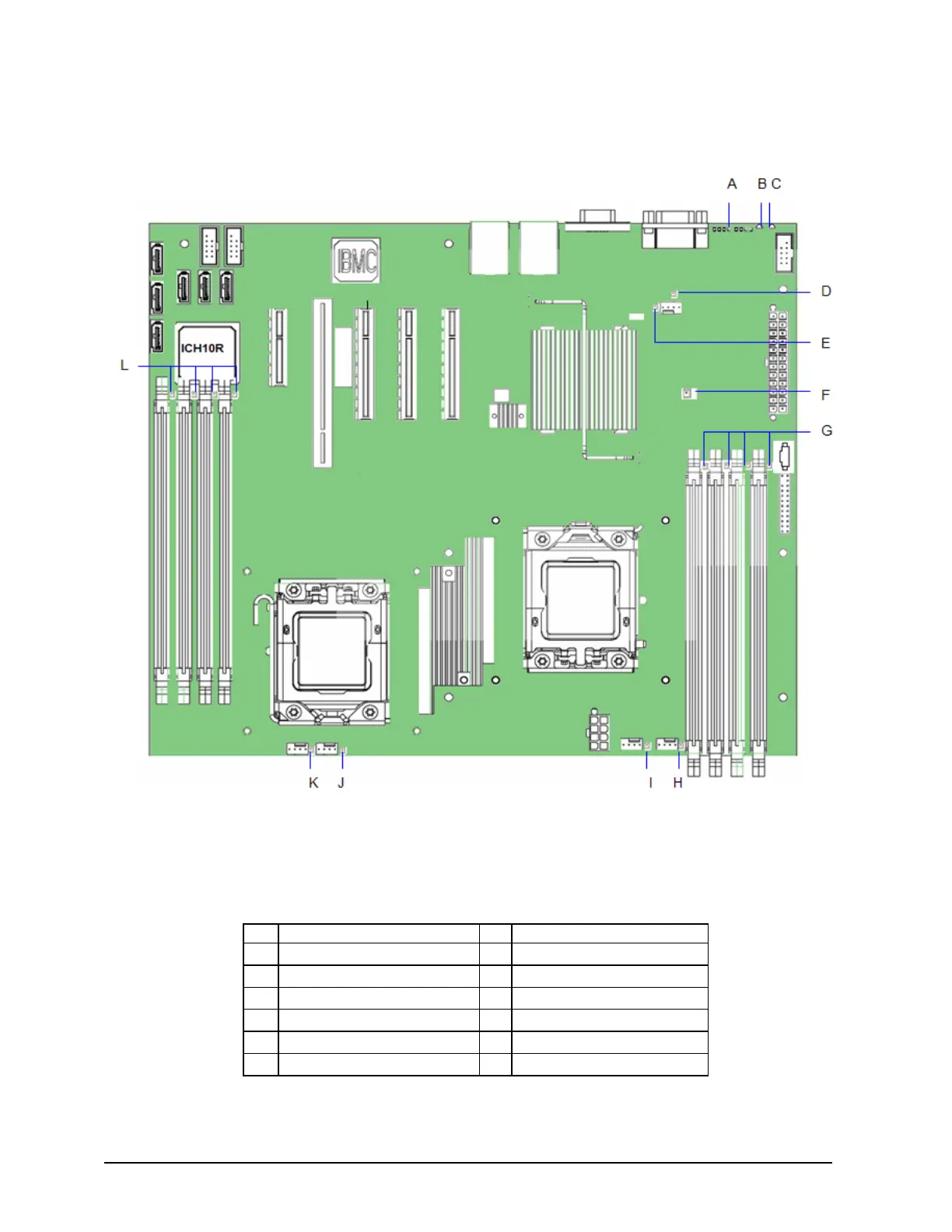

Figure 10. Intel

Light-Guided Diagnostic LED Locations

Table 2. Intel

Light-Guided Diagnostic LED reference

Description Description

A Post-Code Diagnostic LEDs B Status LED

C System ID LED D HDD LED

E System Fan 3 Fault LED F 5 VSB LED

G DIMM Fault LED H System Fan 2 Fault LED

I CPU 1 Fan Fault LED J CPU 2 Fan Fault LED

K System Fan 1 Fault LED L DIMM Fault LED
