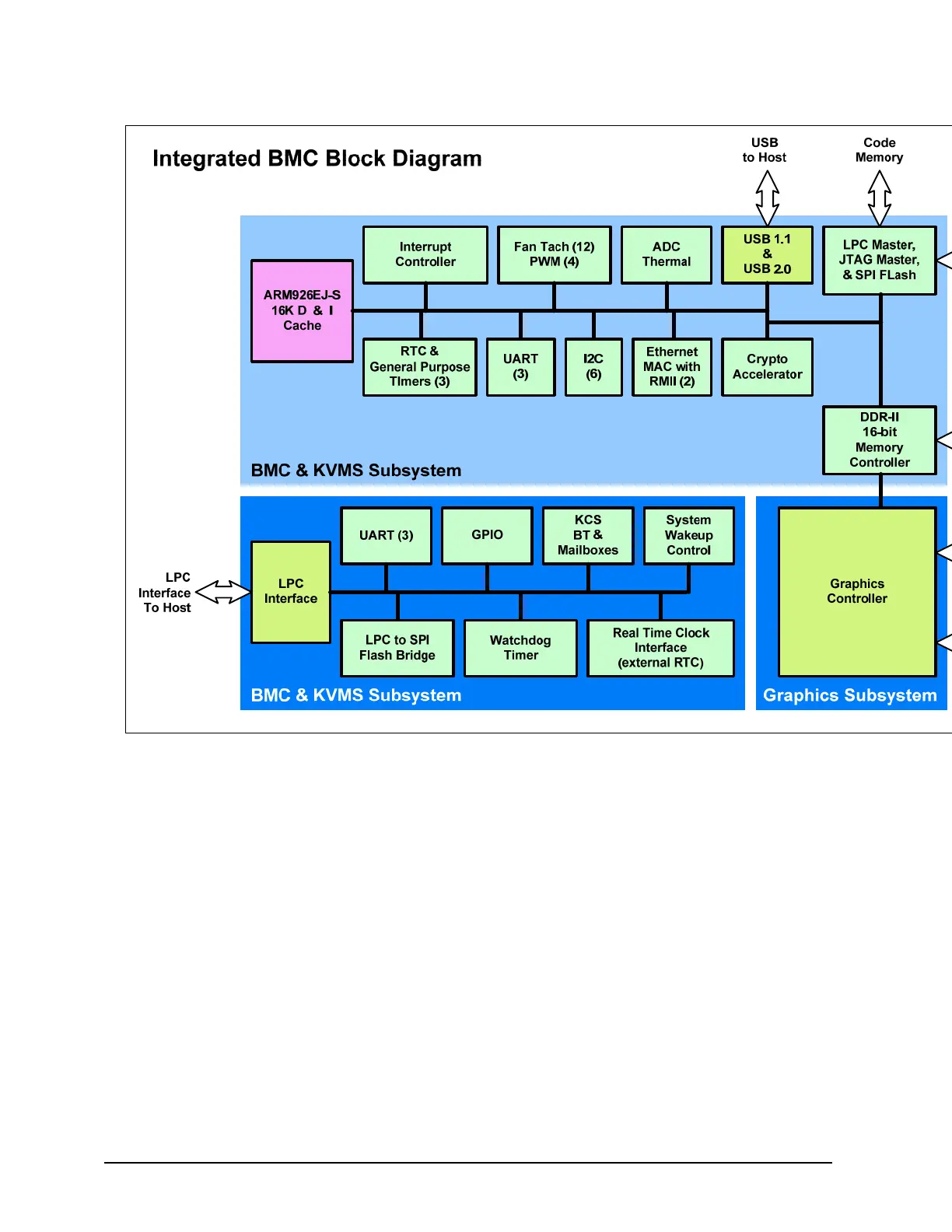

Figure 17. Integrated BMC Block Diagram
3.6.1 Integrated BMC Embedded LAN Channel
The Integrated BMC hardware includes two dedicated 10/100 network interfaces.
Interface 1: This interface is available from either of available NIC ports in system which
can be shared with the host. Only one NIC may be enabled for management traffic at
any time. The active interface is NIC2 on this board.
Interface 2: This interface is available from RMM3 which is dedicated management NIC
and not shared with host.
For these channels, you can enable support for IPMI-over-LAN and DHCP. For security
reasons, embedded LAN channels have the following default settings:
