Thin Mini-ITX Internal Electrical Interfaces
26 Thin Mini-ITX Based PC System Design Guide
2.5.3 Internal Single USB 2.0 Header
Internal single USB header shall be 1x5, 2.54mm pitch, keyed at pin 5.

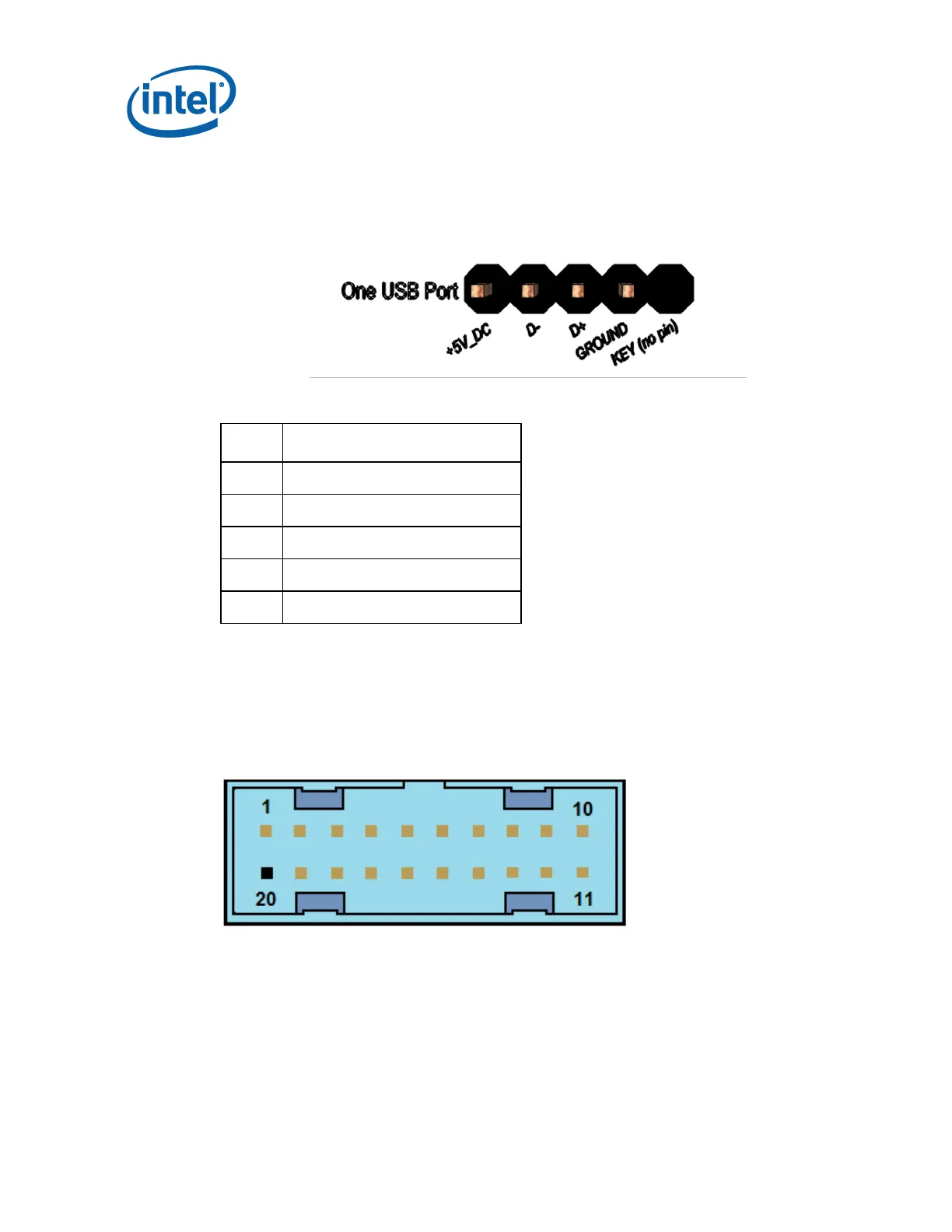

Figure 2-10. 1x5 USB 2.0 Header
Table 2-11. 1x5 USB 2.0 Header Pin-Out
Signal
+5V DC
Data (negative)
Data (positive)
Ground
Key (no pin)
2.5.4 Internal USB 3.0 Header
Internal USB 3.0 header shall be 2x10, 2.54mm pitch, keyed at pin 20. Color should
be Pantone 300 blue.
Figure 2-11. 2x10 USB 3.0 Header
