Thermals & Acoustics

38 Thin Mini-ITX Based PC System Design Guide

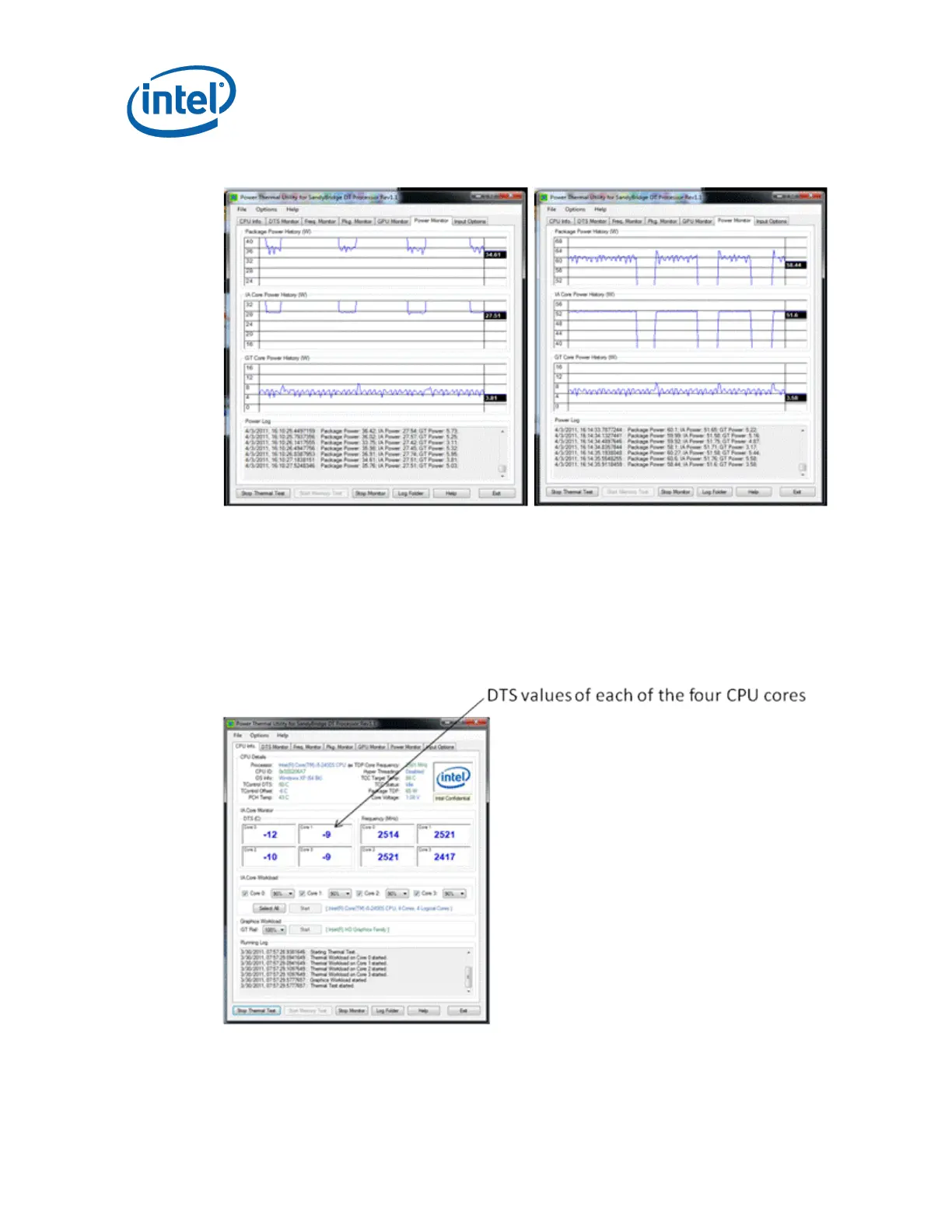

Figure 4-1. Example of Voltage Regulator Induced Throttling

Some voltage regulator designs will bypass a square wave output and will drop the

power down to a constant level, such as 35W. In either case, the CPU DTS values will

not be near the die’s maximum temperature of DTS = -1. This is because the CPU die

is not the component that is over temp.

Figure 4-2. Example of a Typical CPU DTS Readout When Not Throttling
