Mechanical

Thin Mini-ITX Based PC System Design Guide 45

5.2 Internal Motherboard Header Locations

The header locations in Figure 5-2 are strongly recommended to be supported by the

motherboard, chassis, and cables. Supporting these locations allows headers to be in

predictable areas so that chassis cables may be optimized for length and routing, and

to improve the integration of different combinations of motherboards and chassis with

each other.

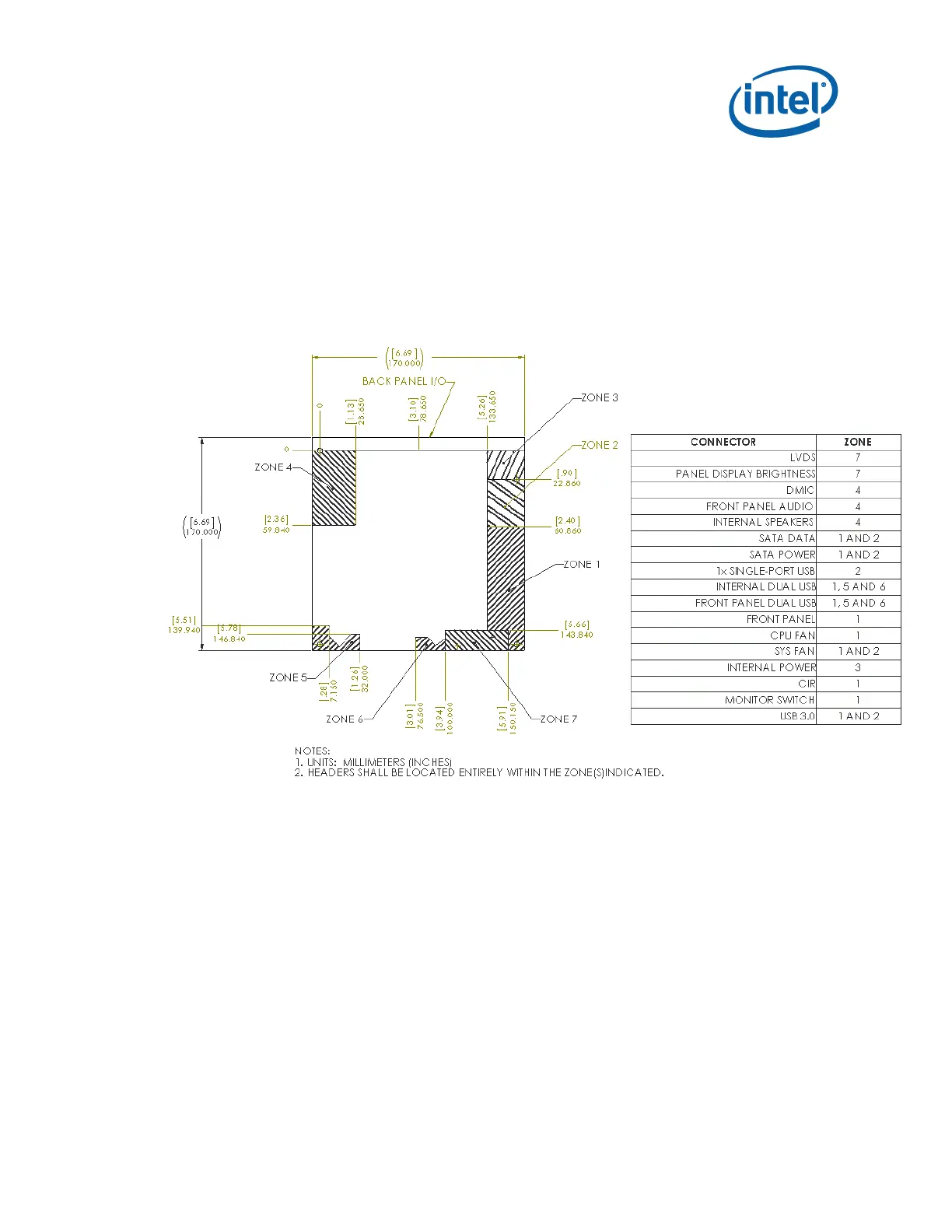

Figure 5-2. Header Zones

Table of Contents3
