Intel Thin Mini-ITX - Figure 5-4. Blower and Heat Exchanger Retention Locations for Two Blower Configuration Option 2

67 pages

To Next Page

To Previous Page

Mechanical

48 Thin Mini-ITX Based PC System Design Guide

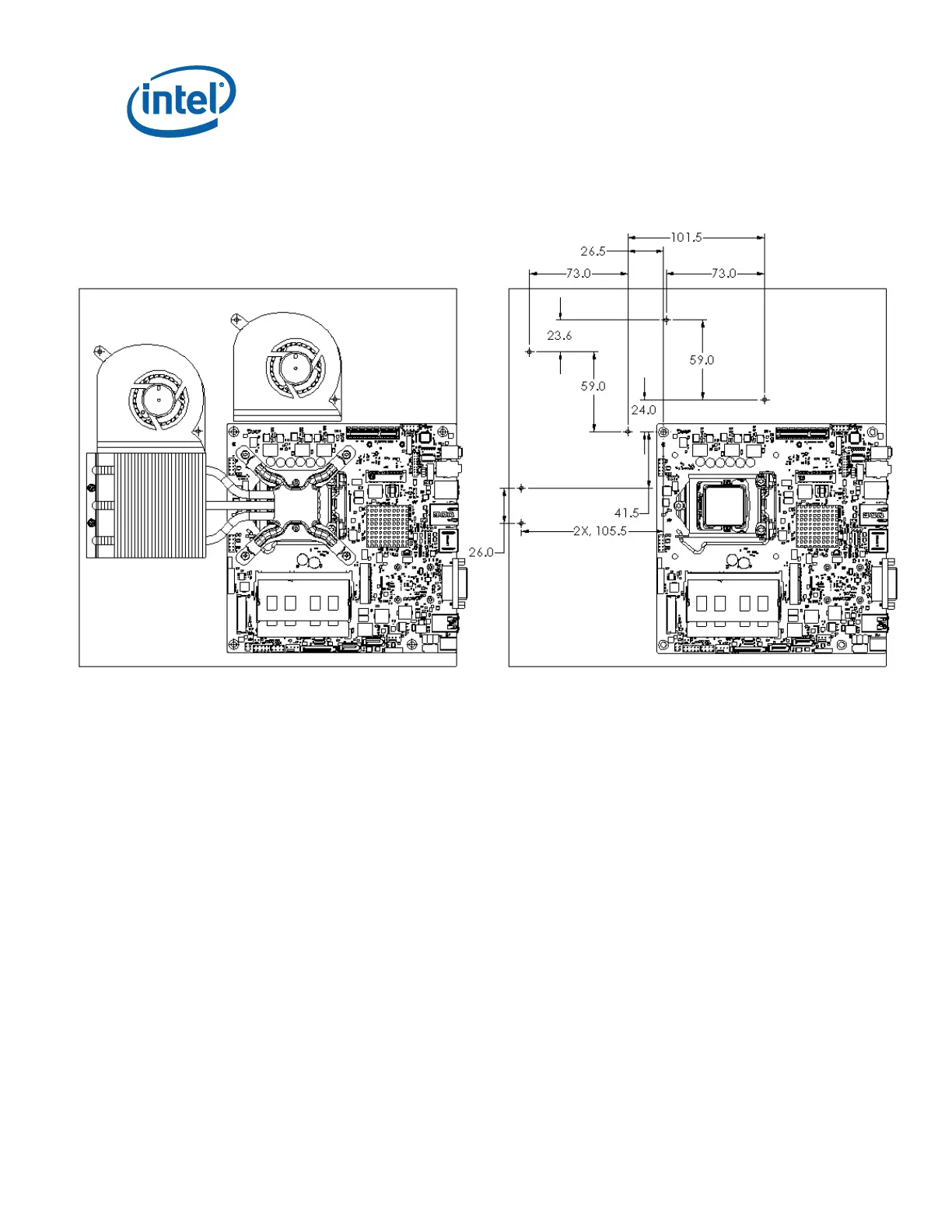

Figure 5-4. Blower and Heat Exchanger Retention Locations for Two Blower

Configuration Option 2
