v240M – Marine Satellite Communication System
20
Antenna Package
The Antenna package consists of the following items:
• Antenna and pedestal assembly
• ACU and installation kit box
• EL support frame
• Lift strap and mediator (optional)

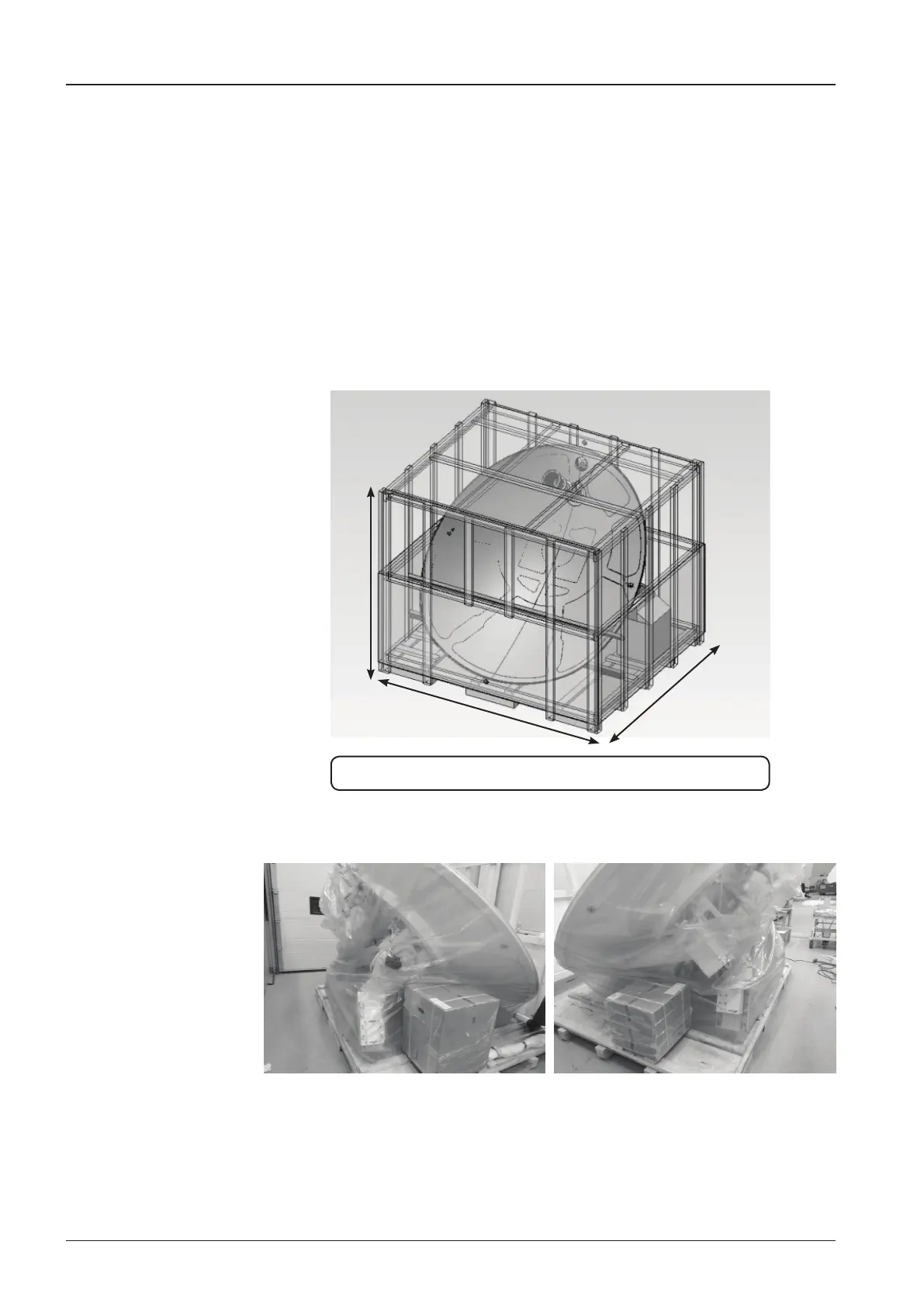

Figure 6. Antenna Package Dimension
Figure 7. ACU, Installation Kit Box, Lift Strap, and EL Support Frame
There are two boxes at each side of antenna pedestal assembly: a component box and a
lifting strap box. The component box contains an ACU, an installation kit box, and cables,
and the lifting strap box contains lifting straps.
NOTE:
Size: 2715mm x 2295mm x 2225mm (W x D x H)
H
W
D
