Intellian v240M User Manual

31
ANTENNA INSTALLATION
Assembling the Reector and Base Frame
Lift up the Reector using a fork lift, and move it above to the post located on the
air-conditioner frame.
Now it is time to assemble the Reector and the Base Frame. Before putting the
Reector down onto the post, be sure the cables go through the center hole of the
post, and that the two BOW markers on the pedestal and the post are in the same
direction.

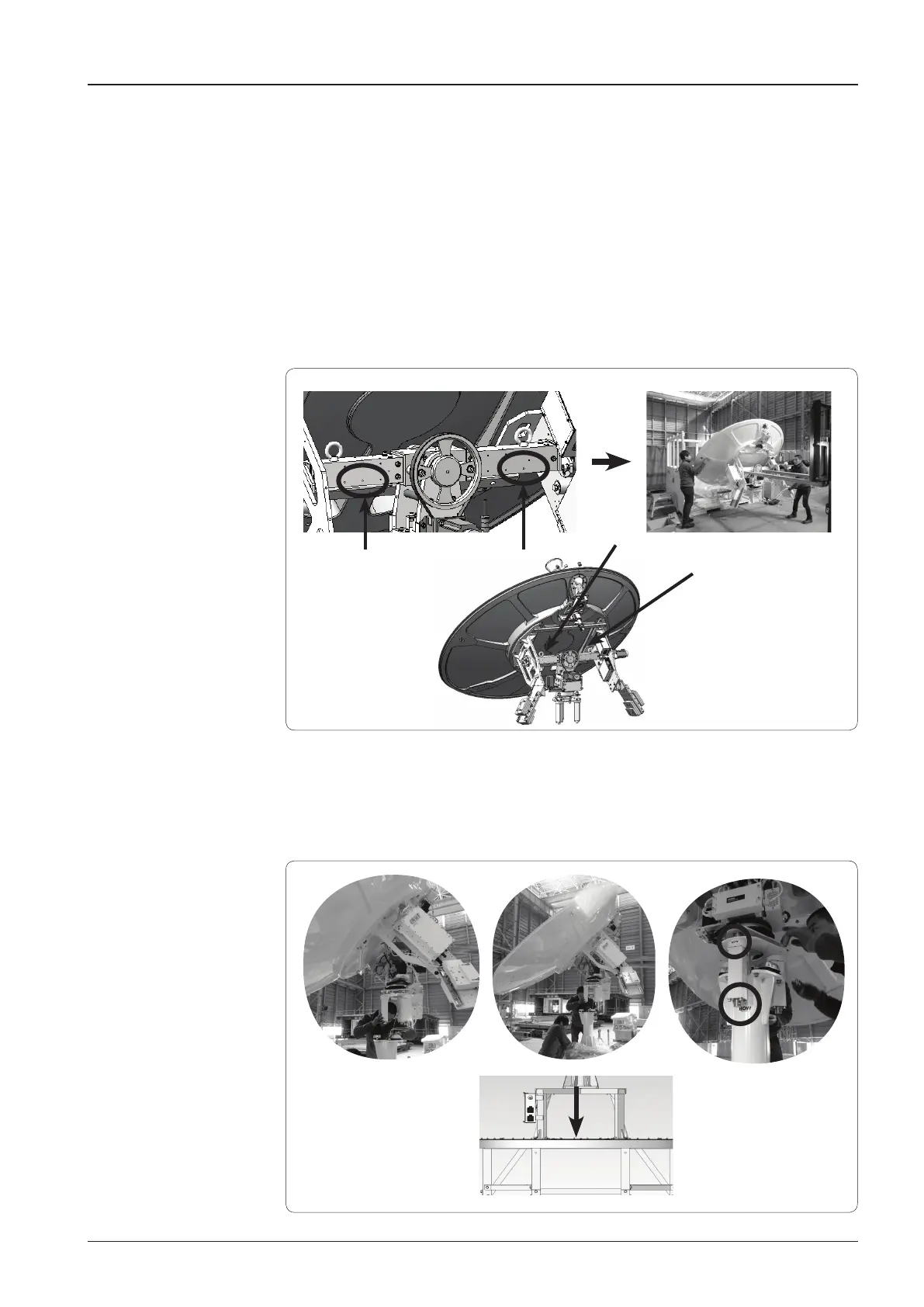

Figure 21. Move Reector using Fork Lift Truck
Figure 22. The Cables in the Post Center and BOW Markers in the Same Direction
Forklift beam position
