Intelligent Motion Systems IB Series - Figure B.1 H-4 X Heat Sink

67
6.00
(152.4)
5.50
(139.7)
3.15
(80.1)
3.51
(89.5)
8-32 Threaded
6 PLACES
IB462
IB463
0.85
(21.6)
Appendix B
Cooling Solutions
H-4X Heat Sink
The H-4X heat sink is designed for use with
the IB462 and IB463. The H-4X comes with
the following items:
(1) H-4X heat sink.
(4) 8 X 32 mounting screws/washers.
(1) TN-462 or TN-463 non-isolating thermal pad.
Mechanical Specifications

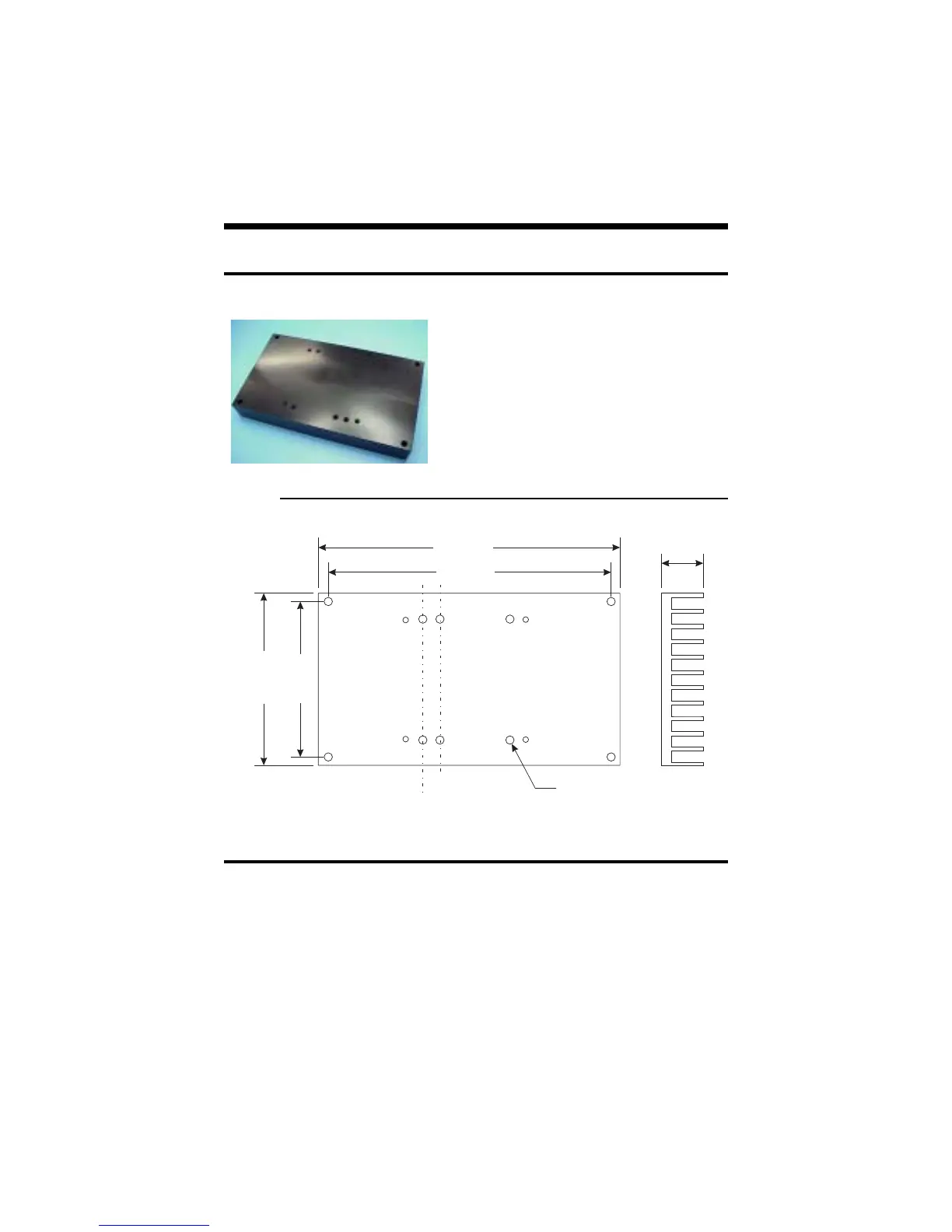

Figure B.1: H-4X Heat Sink, Dimensions in Inches (mm)
H-100 Heat Sink
The H-100 heat sink is designed for use with the IB104, IB106 and
IB1010. The H-100 comes with the following items:
(1) H-100 heat sink.
(4) 8 X 32 mounting screws/washers.
(1) TN-100 non-isolating thermal pad.
