68
0.317
(8.05)
0.063
(1.60)
0.250
(6.35)
1.317 ±0.015
(33.45 ±0.38)
2.957
(75.10)
2.00
(50.08)
7.012
(178.10)
2.504
(63.60)
2.626
(66.70)
4.132 ±0.015
(104.95 ±0.38)
0.757
(19.23)
5.497
(139.6)
0.814
(1.95)
0.753
(19.13)
8-32 threaded hole
4 places marked “B”
B
B
B
B
6-32 threaded hole
4 places marked “A”
A
A
A
A
Mechanical Specifications

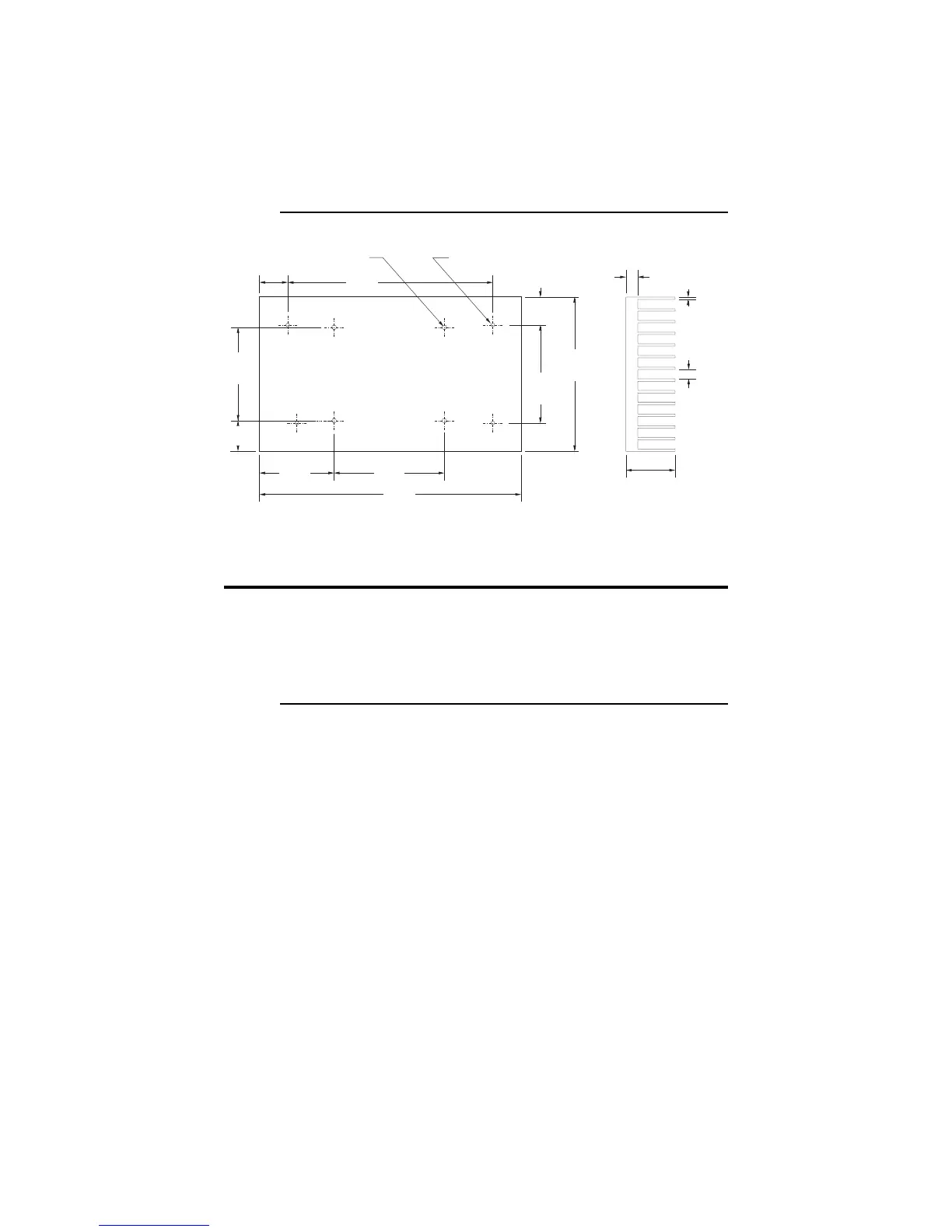

Figure B.2: H-100 Heat Sink, Dimensions in Inches (mm)
Thermal Pads
IMS has available a series of non-isolating and isolating thermal pads
designed for use with the IB series of half/full step drivers.
Thermal Non-Isolating (TN)
The TN thermal non-isolating pad is a composite of .0015” (.038 mm)
aluminum foil coated on both sides with a .0025” (.063 mm) thick
thermally and electrically conductive rubber. These pads have a thermal
conductivity of 0.65 W/m-K and a maximum temperature rating of
180°C.
One side of the TN pad is adhesive and may be applied directly to the IB
driver. The TN pad eliminates the problems associated with using thermal
grease. The following pads are available for the IB series drives:
TN-462 .............................................................................................IB462
TN-463 .............................................................................................IB463
TN-100 ............................................................ IB104, IB106 & IB1010
These pads are also included in the heat sink kit.
