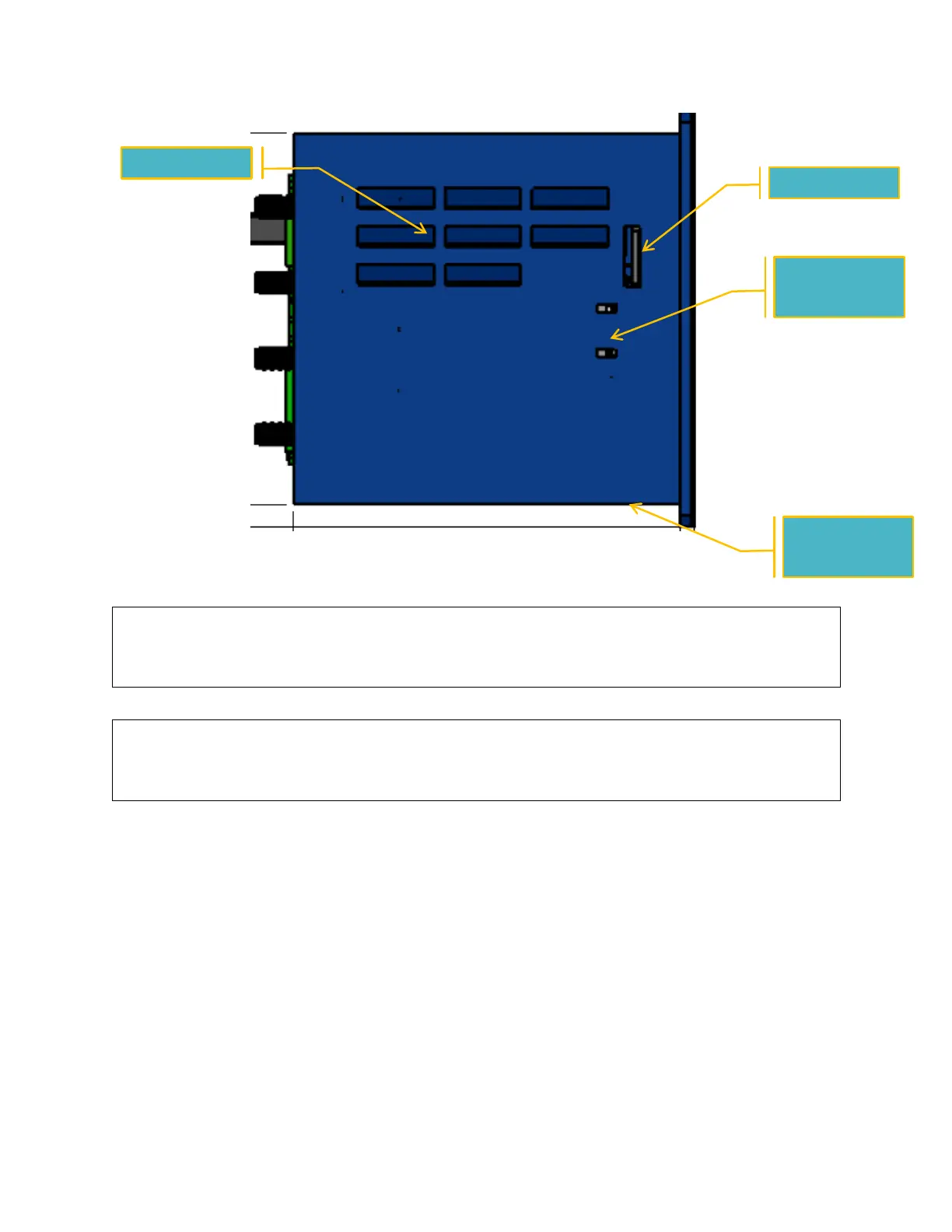

Figure 5: CAM-5: Left Side View
IMPORTANT
External radio frequency energy sources located close to the RF ports can reduce the sensitivity of
partial discharge measurements.
IMPORTANT
The status LED of the RF card is visible through the ventilation slots.
LED States:
• No Illumination: No Power to RF measurement card
• Solid Green: Power, no measurements
• Green / Amber toggle: Automated measurements enabled
• Fast flashing Amber: Rebooting
SD Card
Mounting Clip
Slots
Ventilation
RF Card LED
Mounting Clip
Slots
