IntelliSAW CAM-5 User Manual

User Manual
910.00382.0001 May 2018
44
4.2.3 Humidity and Ambient Temperature
4.2.3.1 Numerical Data Screen
CAM monitoring units support up to 8 humidity sensors – e.g. for bus duct monitoring between generators
and transformers. The ambient temperature, relative humidity, and dew point are displayed. The
ambient sensors are displayed sequentially based on their address (starting with address 0) when
configured with the CAM Display Tool. The text location names can be edited based on system
installations.

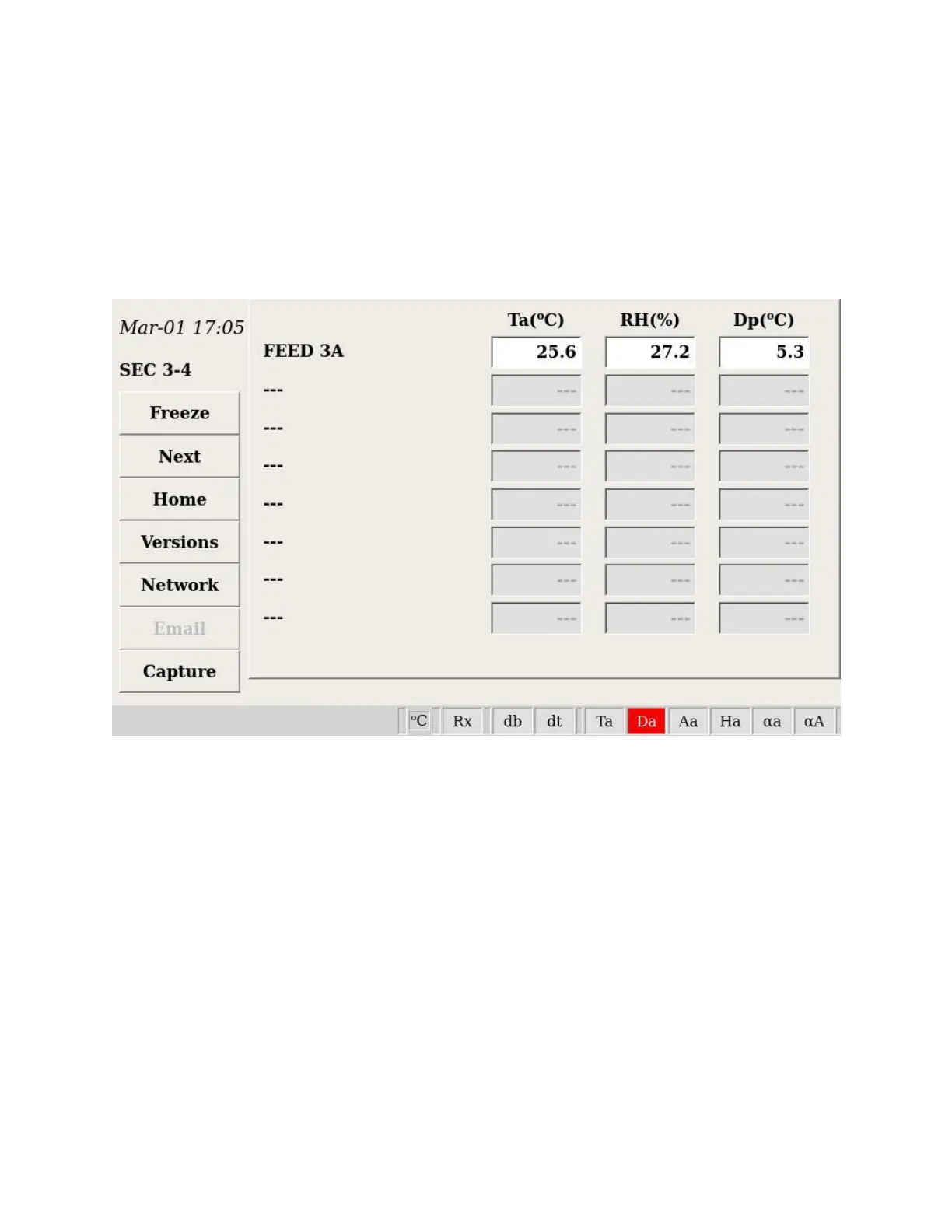

Figure 27: Ambient Temperature and Humidity Screen Example
