IntelliSAW CAM-5 User Manual

User Manual
May 2018 910.00382.0001
15

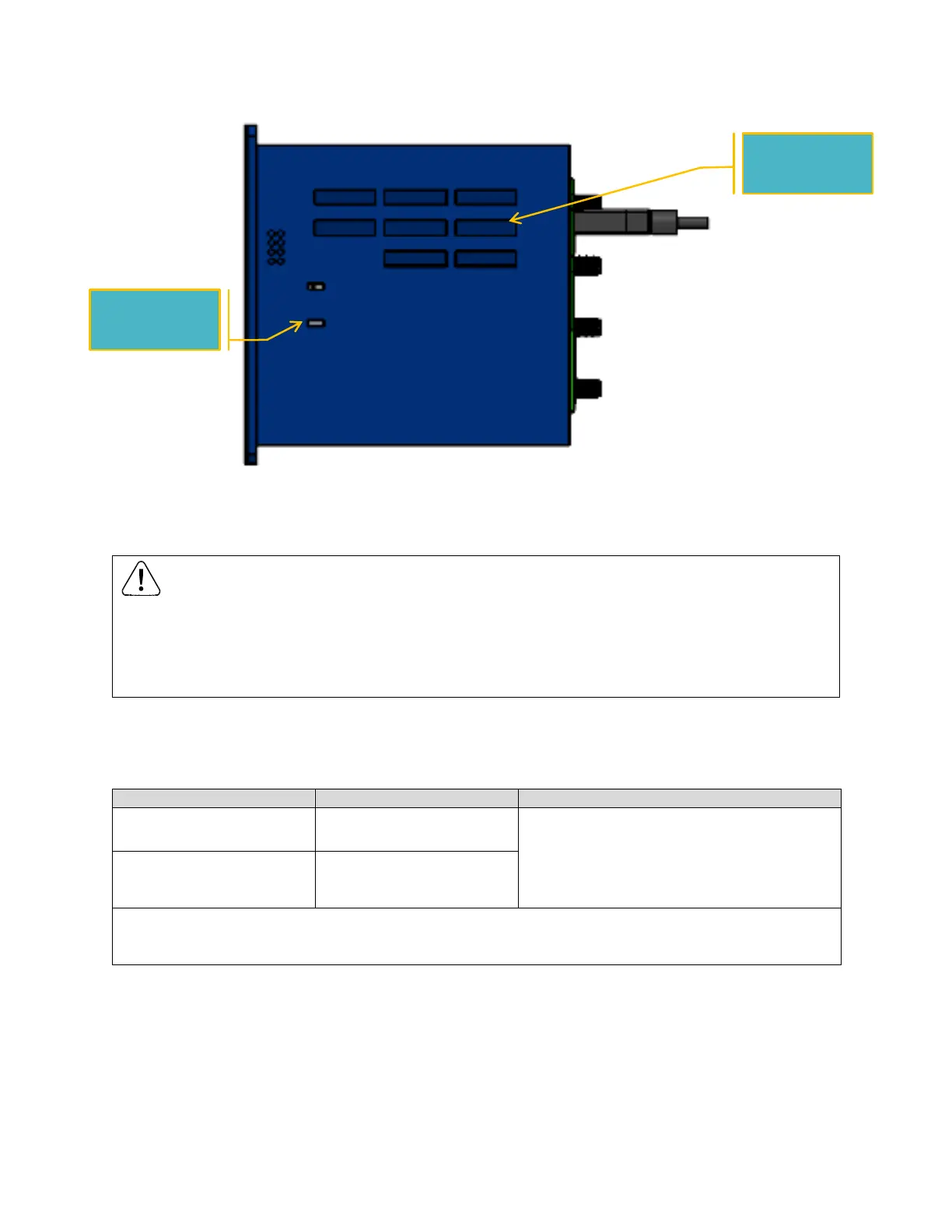

Figure 6: CAM-5: Right Side View
WARNING
INSERTION OF WIRES OR FINE TOOLS INTO THE VENTILATION SLOTS COULD RESULT IN
HAZARDOUS CONDITIONS.
Failure to follow the instructions given can result in death or serious injury
2.3.1 Power Connector
Pin
Name
Description
Line / (+)
Line 1, DC+
Input power range:
100 to 250V AC and 120 to 250V DC
1
.
2-Phase AC uses (N / -) as Line 2
Neutral / (-)
Neutral, Line 2, DC-
Line and Neutral are symmetric in the CAM™-5 and DC power may be applied at either polarity.
Line and Neutral have differential mode filtering and clamping to PE stud and have common
mode filtering and isolation to the remainder of the unit.
Mounting Clip
Slots
Ventilation
