Interacoustics Eclipse - 3.2.5 Display of the peak to trough markers (SN10 marker) (EPx5 software only)

D-0120578-C – 2019/11
Eclipse – Instructions for Use - US
Page 40
3.2.5 Display of the peak to trough markers (SN10 marker) (EPx5 software only)
By default, the amplitude of waveforms is calculated from peak to baseline. To enable the trough markers in
the edit tab, so as to calculate waveform amplitude from peak to trough, follow these instructions.

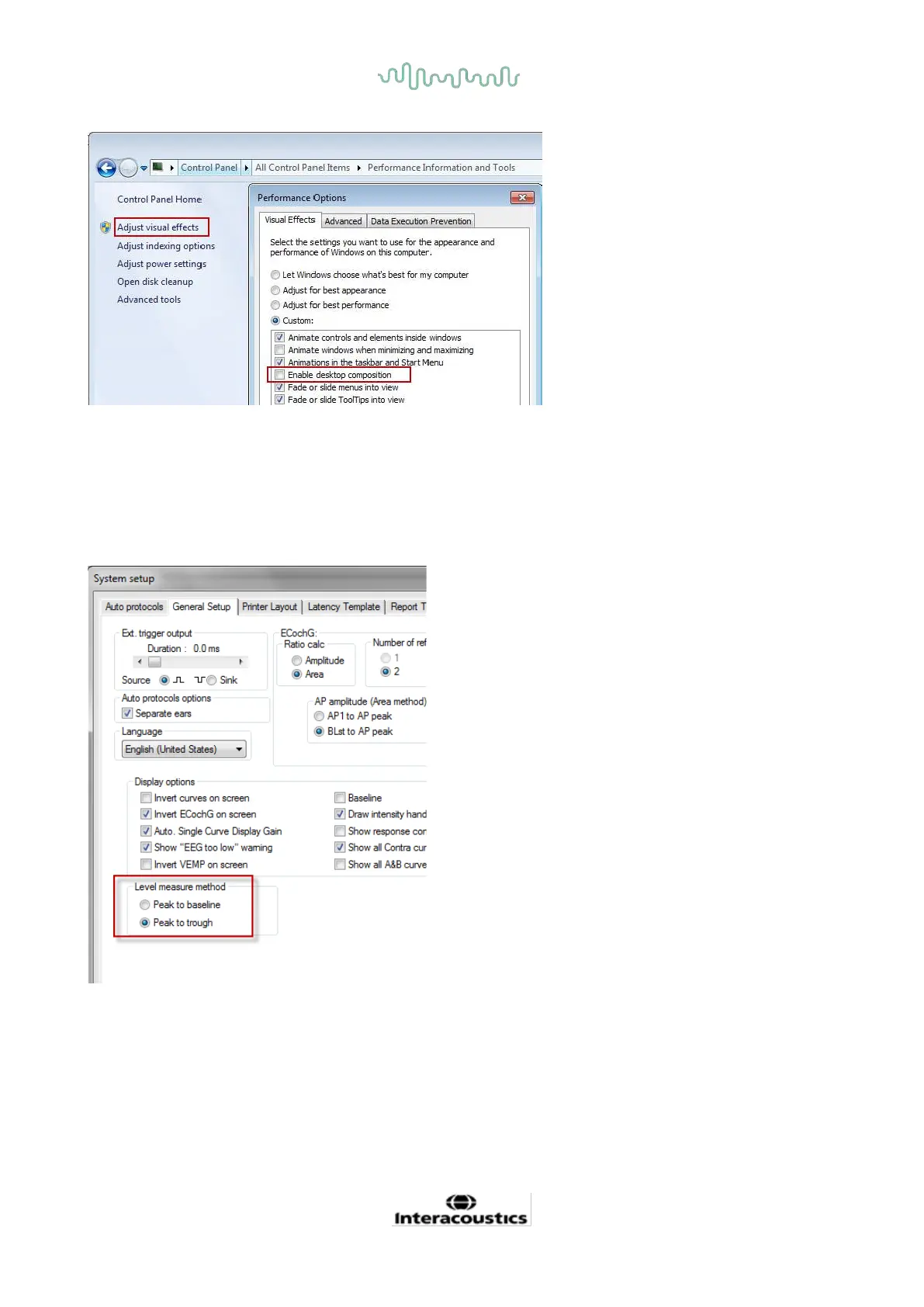

1. From the General setup tab, change the Level measure method to “Peak to trough”
2. Press OK to save
The Tr buttons will now appear in the Edit tab for manual positioning of the various trough /SN10 markers.
