D-0120578-C – 2019/11
Eclipse – Instructions for Use - US
Page 86

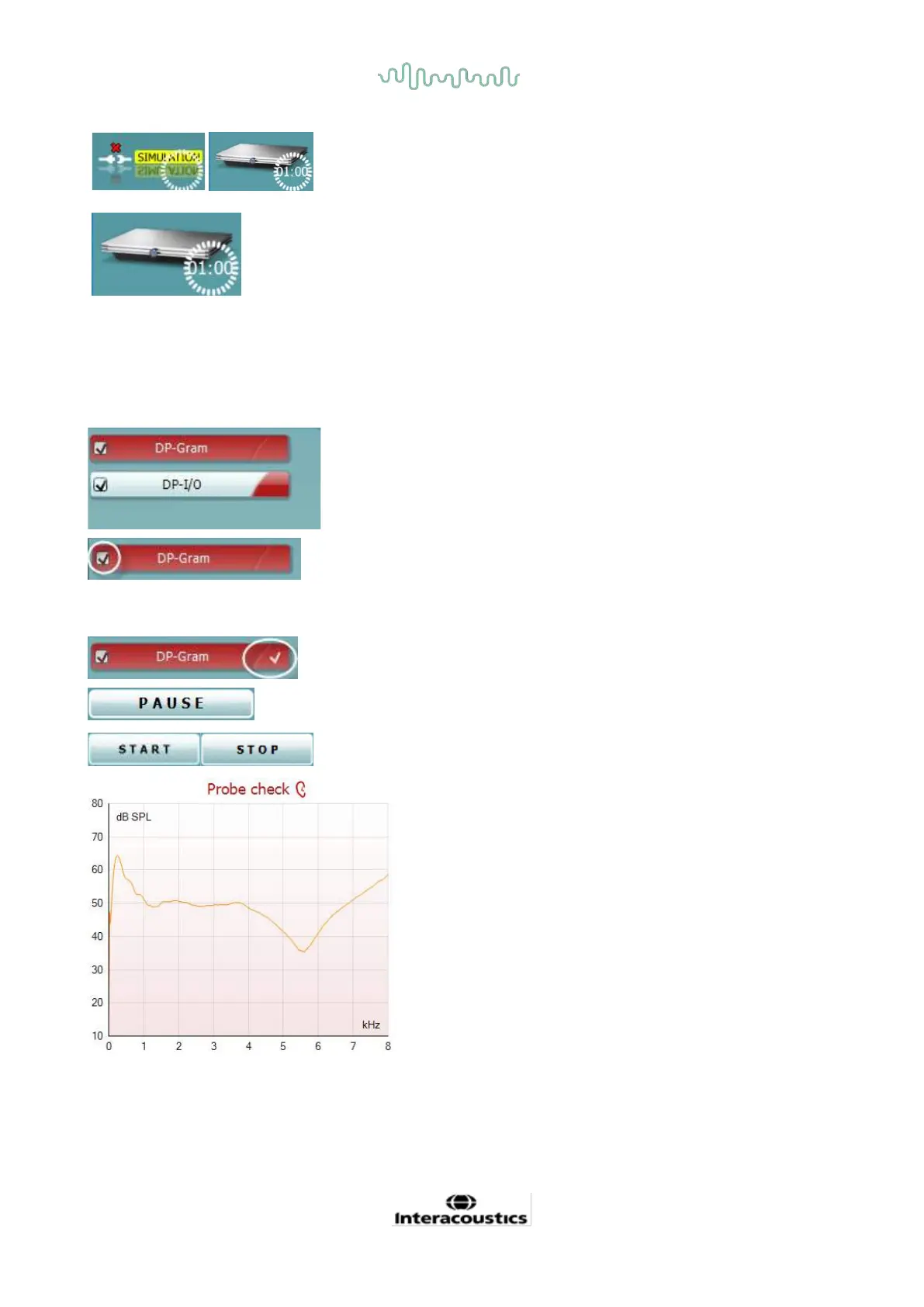

The hardware indication picture indicates whether the
Lyra
or Eclipse hardware is connected.
Simulation mode is indicated when operating the software
in simulation mode (user chosen).
Before testing, the Timer symbol indicates after how much
time the DPOAE test will automatically stop. During testing
the timer counts down to zero. You can disable the
countdown by clicking on the timer during testing. As a result
the timer will begin counting up and indicate how much test
time has passed. Then the test will continue until you
manually press stop.
When the measurement is rejecting, the timer will stop
counting. Artifact rejection is dependent upon the
Acceptable Noise Level setting and Level tolerance level
set in the protocol.
The protocol listing shows all tests that are part of the
selected protocol. The test that is displayed in the test screen
area is highlighted blue or red, depending on the chosen ear.
A checkmark in the box indicates that the test will run when
START is pressed. During testing the tests which have been
completed will automatically become unchecked. Uncheck
the boxes of tests you do not wish to run under the selected
protocol before pressing START.
A white checkmark indicates that (at least some) data for
this test is stored in the memory.
Pause becomes active after testing has started. It allows for
pausing during a test.
START (and STOP) button are used for starting and
stopping the session.
The probe check graph provides a visual display of the probe
fit in the patient’s ear before and after testing.
During testing, the probe check is not running and the graph
will not display a curve.
