CENTER OF GRAVITY
STANDARD CG
The Standard CG calculation requires that the axle width and the wheel base
dimensions be measured and entered. Prior to measuring the axle width and wheel
base, verify the front tires are aligned straight forward. The axle width should be
measured from the outside of the left tire to the outside of the opposite right tire. The
wheel base measurement is taken from the middle of a front tire to the middle of a rear

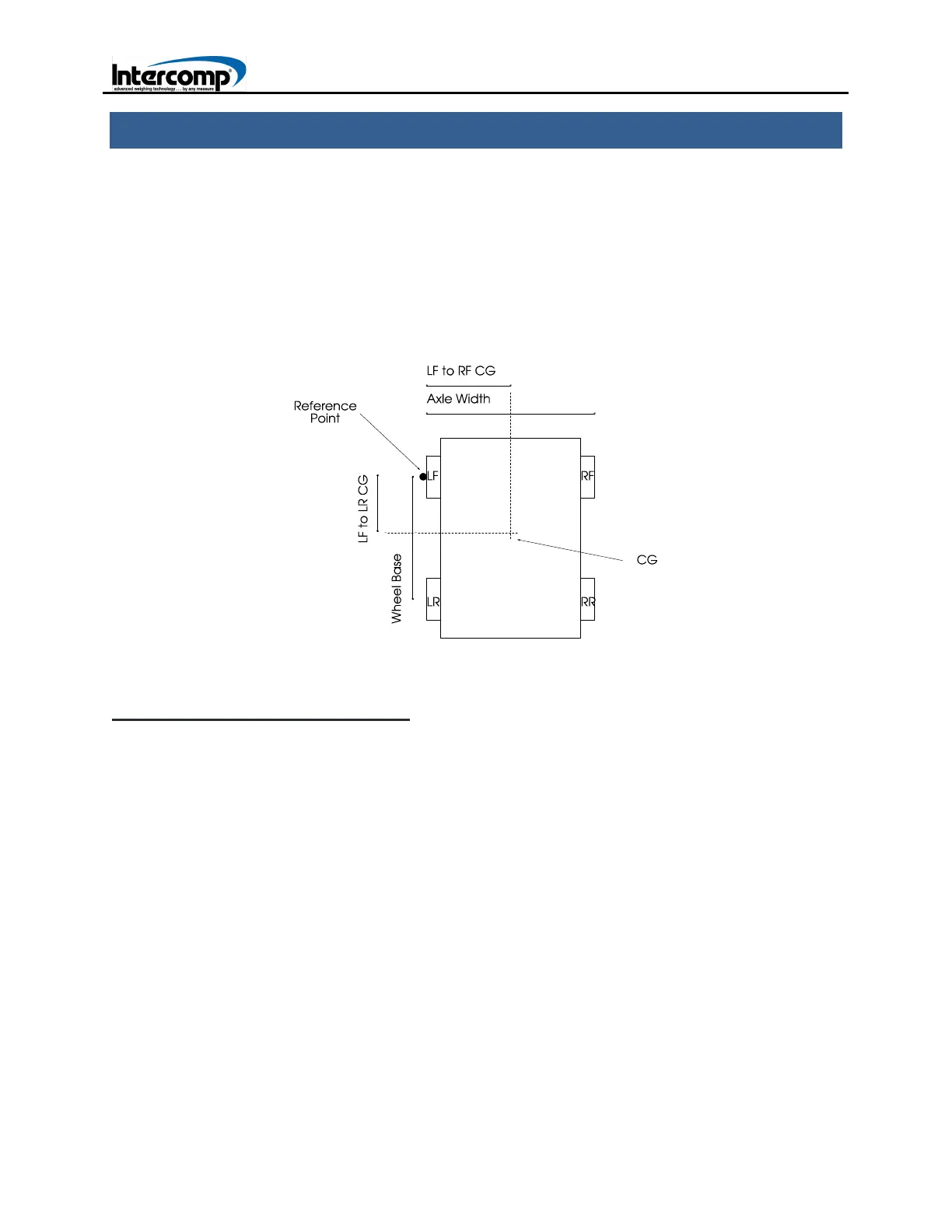

tire. The measurements as depicted in the following diagram are the results taken from
marked reference points.
STANDARD CENTER OF GRAVITY
CALCULATING STANDARD CG
1. Position the car level with the ground.
2. Press the CG key to access the CENTER OF GRAVITY Menu. Select option #1 to
begin calculating Standard CG.
3. A prompt will be displayed to enter the axle width. Enter the axle width.
4. A prompt will be displayed to enter the wheel base length. Enter the wheel base
length.
