CENTER OF GRAVITY
Standard CG (continued)
5. The Standard CG location will be displayed from the left front to right front tire and
from the left front to left rear tire. Refer to the diagram on the previous page.
Additionally the percentage of the wheel base (left front to left rear) and the
percentage of the axle width (left front to right front) is displayed. Refer to the
following screenshot. The screen information is updated if the wheel weights are
shifted.
Press the CG key to return to the regular weight screen.
VERTICAL CG

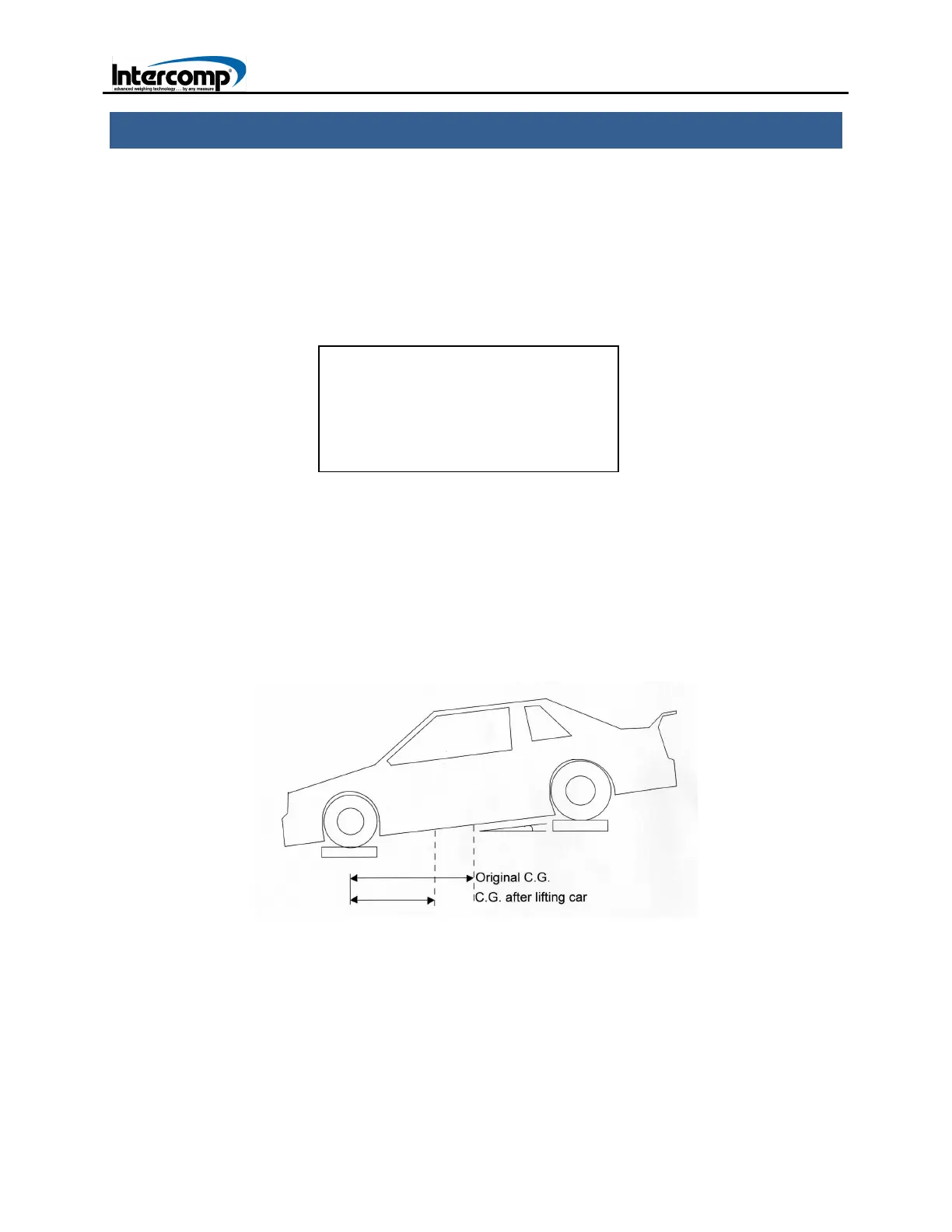

The Vertical CG is the point that the car would balance if turned on the side. The
following diagram demonstrates the theory of Vertical CG. Note that the amount of CG
movement has been exaggerated to illustrate the point. If the back of the car is
elevated, the front to back center of gravity will move forward. The amount of
movement is related to how high the center of gravity has been elevated in the car.
VERTICAL CENTER OF GRAVITY
LEFT TO RIGHT: 25.4
(42.33% OF 60.0 )
FRONT TO REAR: 55.0
(50.00% OF 110.0 )
