Interface GOLD STANDARD User Manual

7418 East Helm Drive • Scosdale, Arizona 85260 • 480.948.5555 • www.interfaceforce.com
Page 37 of 45
BACK 0.88 STRIP JACKET
6X 0.13
0.063 MAX TRIM OFF SHIELD
BACK 0.75 STRIP JACKET
"L" +1' -0'
1
7X 0.13
CT
B
F
A
C
E
D
CC
B E
D
C
F
A
3 + SIGNAL 2 + SENSE 1 + EXCITATION 4 - SIGNAL N/C 5 - SENSE 6 - EXCITATION 9 - GUARD (SHIELD)
GREEN
WHITE/RED
RED
WHITE
WHITE/YELLOW
WHITE/BLACK
BLACK
PT06A-12-8S
(21382)
DE-9P
(25053)
CT = TENSION READING UPSCALE CC = COMPRESSION READING UPSCALE
(26061) CABLE LABEL
INTERFACE
CT-177-XX
7418 E. HELM DRIVE SCOTTSDALE, AZ 85260 USA
7 CONDUCTOR CABLE (20203)
REMOVE MYLAR WRAP BOTH ENDS
(20274) Ø0.063 SHRINK TUBE (13 REQ)
HOOD (25917)
D
F
E
C
B
A
H
G
PT06A-12-8S (SR)
SOLDER SIDE
(21382)
(FEMALE)
6
7
8 9
1
2 3
4
5
DE-9P
SOLDER SIDE
(25053)
(MALE)
2. CLIP WHITE/YELLOW WIRE BOTH ENDS.
1
DRAWING DASH No. = LENGTH IN FEET.
LOAD CELL END
(25024)
0.313 X 1.0 LG
SHRINK TUBE (1 REQ)
(25024)
0.313 X 0.75 LG
SHRINK TUBE (1 REQ)
TWIST AND INSULATE SHIELD WITH (21336)
.13 SHRINK TUBE.
LEAVE 0.13 EXPOSED FOR SOLDERING TO PIN 9
LOGO LABEL (15514-1)
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
B
REMOVE WHITE/YELLOW CONNECTION
06/16/00
C
REDRAWN, (25053) WAS (21395)
03/17/16
DLC
D
ADDED 15514-1 LABEL, 25917 WAS 21396,
UPDATED SHIELD CONNECTION
03/20/2018
RMP
SCALE:
SIZE:
DWG. NO:
A
SHEET
OF
REV:
DATE
CREATOR
DESIGNED:
DETAILED:
Interface Inc. claims proprietary rights in the information disclosed hereon. This drawing is furnished in condence on the express understanding that neither it nor any reproduction thereof will be disclosed to others or used for the purpose of manufacture or procurement of the article or part shown hereon without written permission of Interface Inc. The drawing shall remain the property of Interface Inc. and shall be returned upon request by Interface Inc.
TITLE:
RG
12802
D
1:1
CAD FILE <_Document Vault:\~\12802.SLD***>
1
1
REMOVE BURRS AND SHARP EDGES .02 MAX SURFACE FINISH 63 MICROINCHES
12802
CAM DATA:

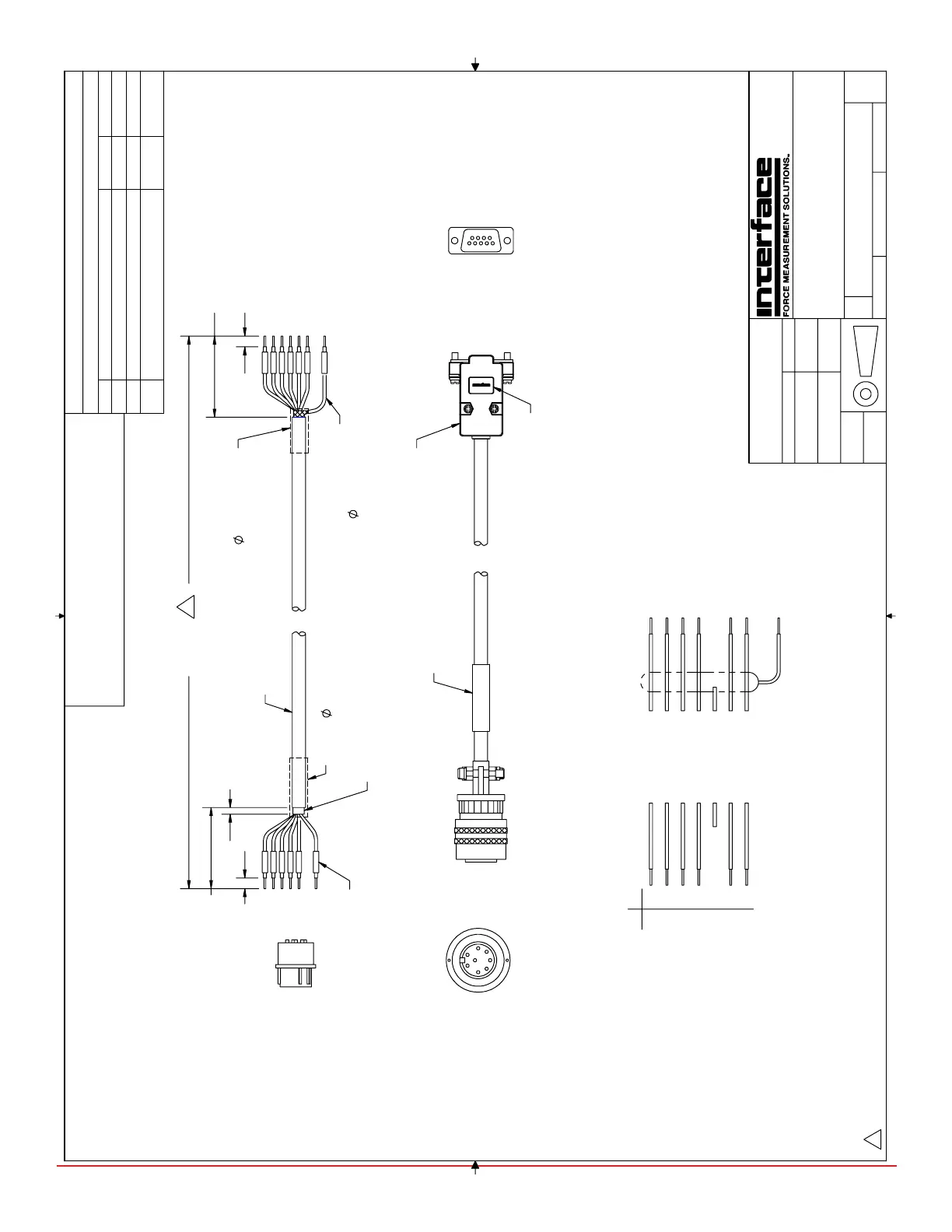

7 CONDUCTOR CC/CT-177-XXX CABLE - 9840 TO 1600 SERIES
