7418 East Helm Drive • Scosdale, Arizona 85260 • 480.948.5555 • www.interfaceforce.com
Page 39 of 45
REV DESCRIPTION DATE APRVD
A INITIAL RELEASE 01/02/18 JS
B CLARIFICATION UPDATES 11/19/19 JS
C UPDATED TO CURRENT CONF 03/31/20 JS
NOTES / COMMENTS:
Interface, Inc.
7401 E Butherus Drive, Scottsdale, Arizona 85260

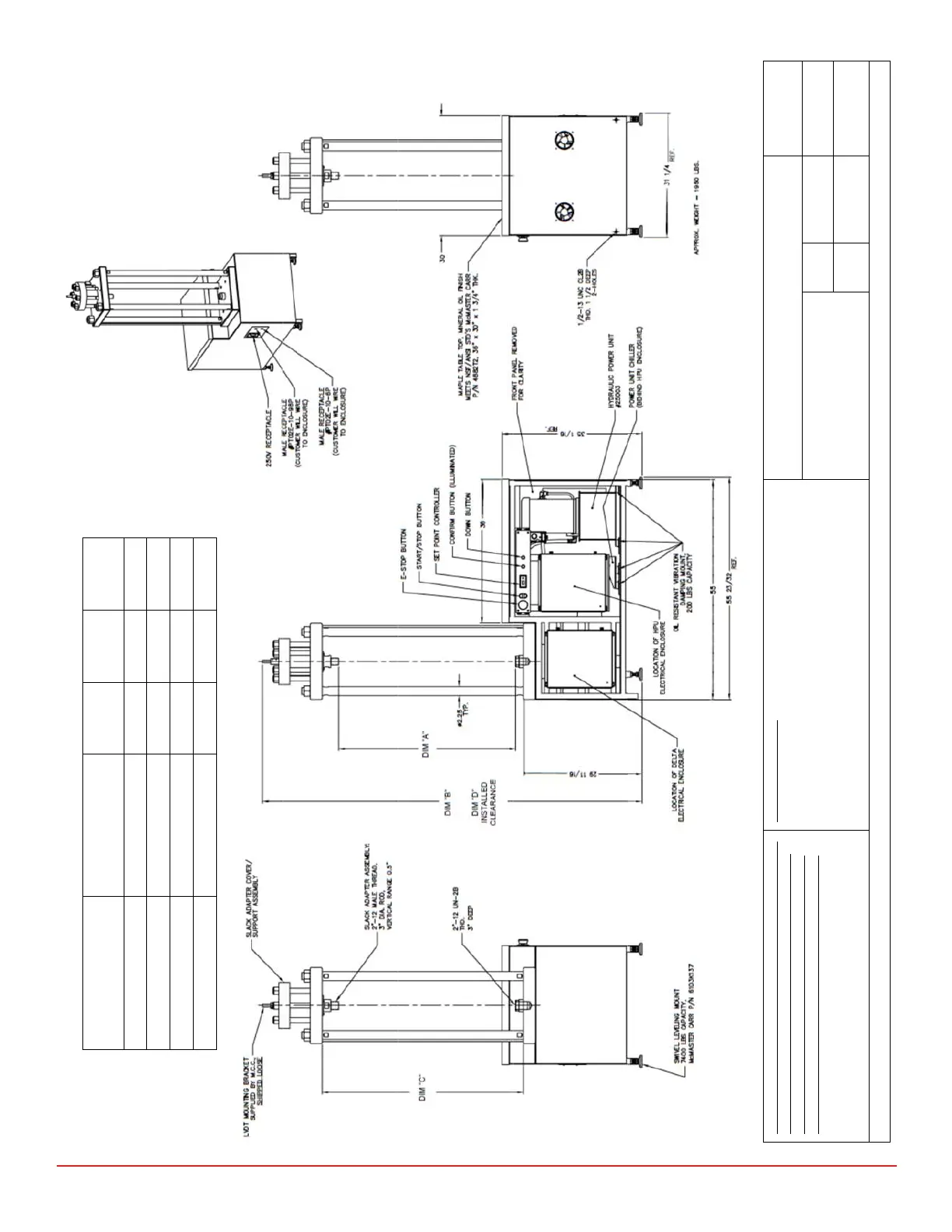

DRAWING NO:
82238
TITLE:
OUTLINE MODEL:
LOAD FRAME
SHEET:
1‐6
DRAWN BY:
BRET B.
DATE:
12/15/2017
SIZE:
A
APPROVED BY:
JAKE S.
REVISION:
C
Interface, Inc. claims proprietary rights in the information disclosed hereon. This drawing is furnished in confidence on the express understanding that neither it nor any reproduction thereof will be disclosed to others or used for the purpose of manufacture or
procurement of the article or part shown hereon without written permission of Interface, Inc. The drawin
shall remain the propert
of Interface, Inc. and shall be returned upon request b
Interface, In
.
LOADFRAME
MODEL
DIMA(MIN/
MAX) DIMB DIMC DIMD
LF1‐25K‐1‐4 24.4"/30.4" 82.0" 36.5" 84.0"
LF1‐55K‐1‐58 24.4"/30.4" 82.0" 36.5" 84.0"
LF1‐55K‐1‐6 38.4"/44.4" 96.0" 50.5" 98.0"
LF1‐100K‐1‐7 38.4"/44.4" 96.0" 50.5" 98.0"
