Interface GOLD STANDARD User Manual

7418 East Helm Drive • Scosdale, Arizona 85260 • 480.948.5555 • www.interfaceforce.com
Page 41 of 45
T
P
P
T
M
P
T
System Relief
Factory Set to 3500 PSI
CW to Increase CCW to Decrease
Oil Return Filter
10 Micron
Element: KRW-RT2010
25 PSID Bypass
ITEM
QTY.
PART NUMBER
DESCRIPTION MFR.
1 1
25003-TANK
Reservoir 7.5 Gallon
KR West
2 1
TS-SNA/SNK-O-60
Temp Switch
Stauff
3
1
131545
Electric Motor 3hp/230//1ph/60
Leeson
4
1
G1.3B36
Gear Pump 1.25 GPM
Continental Hydraulics
5
1
2196
Bell Housing
LDI
6
1 M200-1 1/8X1/4
Motor Coupling
Magnaloy
7
1
M200-1/2X1/8
Pump Coupling
Magnaloy
8
1
270-U
Coupling Insert
Magnaloy
9
1
SUS-A-050-N08F-90-125-0 Suction Strainer Stauff
10
1 KRW-RT20-G10B
Return Filter KR West
11 1
SPG-040-00100-03-P-N02-402928
Filter Service Gauge
Stauff
12 1 2240GXB5000
Gauge 0-5000 PSI
Valley Instruments
13
1
SWS-N04-A2
Needle Valve
Stauff
14 1
553022 P and T Block
Continental Hydraulics
15
1
RPEC-LCN Relief Valve
Sun Hydraulics
16
1 SF-014-H-10-B-T-U12-O-V
High Pressure Filter
Stauff
17 1
HI-ETB-5,0B
High Pressure Filter Switch
Stauff
18
1 BOL-8-2-2
Heat Exchanger
Thermal Transfer
19
1 SNK127V0012
Level Gauge / Switch
Stauff
20
1
BA001B3U01Y2 Accumulator Parker
12
13
16
14
15
3
5
6
7
8
4
9
10
11
1
Pressure Connection
To Servo Valve
-8 JIC
Return Connection
-8 JIC
7.5 Gallon
M
18
3hp/230v/1ph/60
19 2
1/3hp/230v/1ph/60
17
REV
DRAWING NO
SCALE
1/2
DR CK DATE
REV DATE APP E.C.O. NO.
THIS DRAWING IS THE PROPERTY OF MILWAUKEE CYLINDER AND INFORMATION CONTAINED HEREIN IS NOT TO BE USED IN ANY MANNER DETRIMENTAL TO OUR INTERESTS.

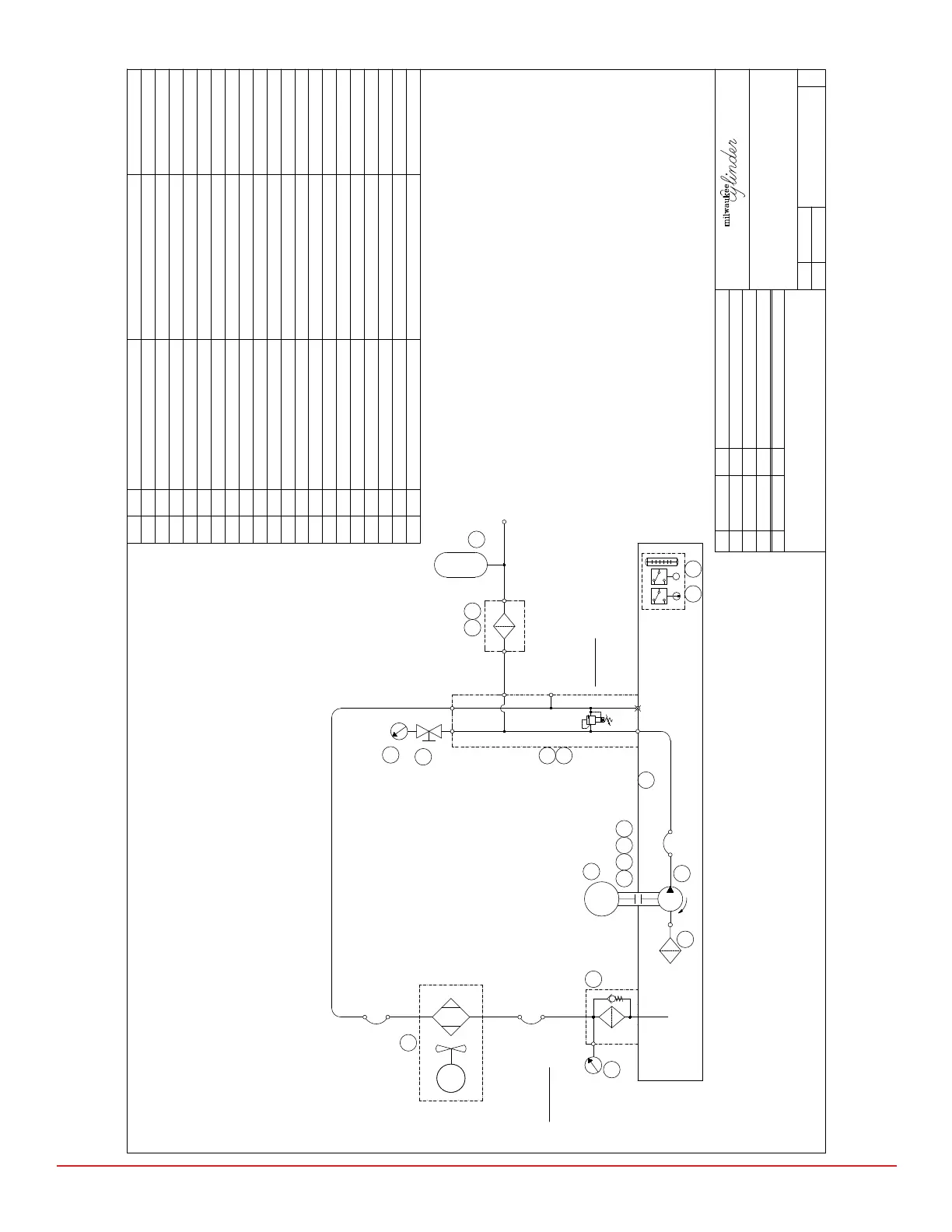

HYDRAULIC POWER UNIT
3 HP, 1.25 GPM
PMF
1/3/2020
25103 HYD SCHEMATIC
1
3/3/20
ADDED ACCUMULATOR
1
20
