7. Do both of the following on the underside of the door:
−
Spread the release tabs on the large emblem and remove it
−
Squeeze the release tabs on the small emblem and remove it
8. Slide the hinge toward the front of the chassis until it stops.
9. Use a flat-blade screwdriver and pry each of the stop tabs on the hinge until the hinge
releases from the rails.
10. Orient the new hinge so that the locking tabs face down and insert the new hinge into
the track and push it forward until it stops.
11. Hold the hinge, align the beveled edges of the hinge with the guide slots on the door,
and push the door firmly onto the hinge until it snaps into place.
12. Press the two emblems onto the door until they snap into place.
13. Operate the door to test its movement.
14. Install the top cover. See Chapter 1, “Accessing the System,” for details.
To replace the hinge rails:
1. Remove the door. See the procedure above for details.
2. Slide the hinge toward the front of the chassis until it stops.
3. Use a flat-blade screwdriver and pry each of the stop tabs on the hinge until the hinge
releases from the rails.

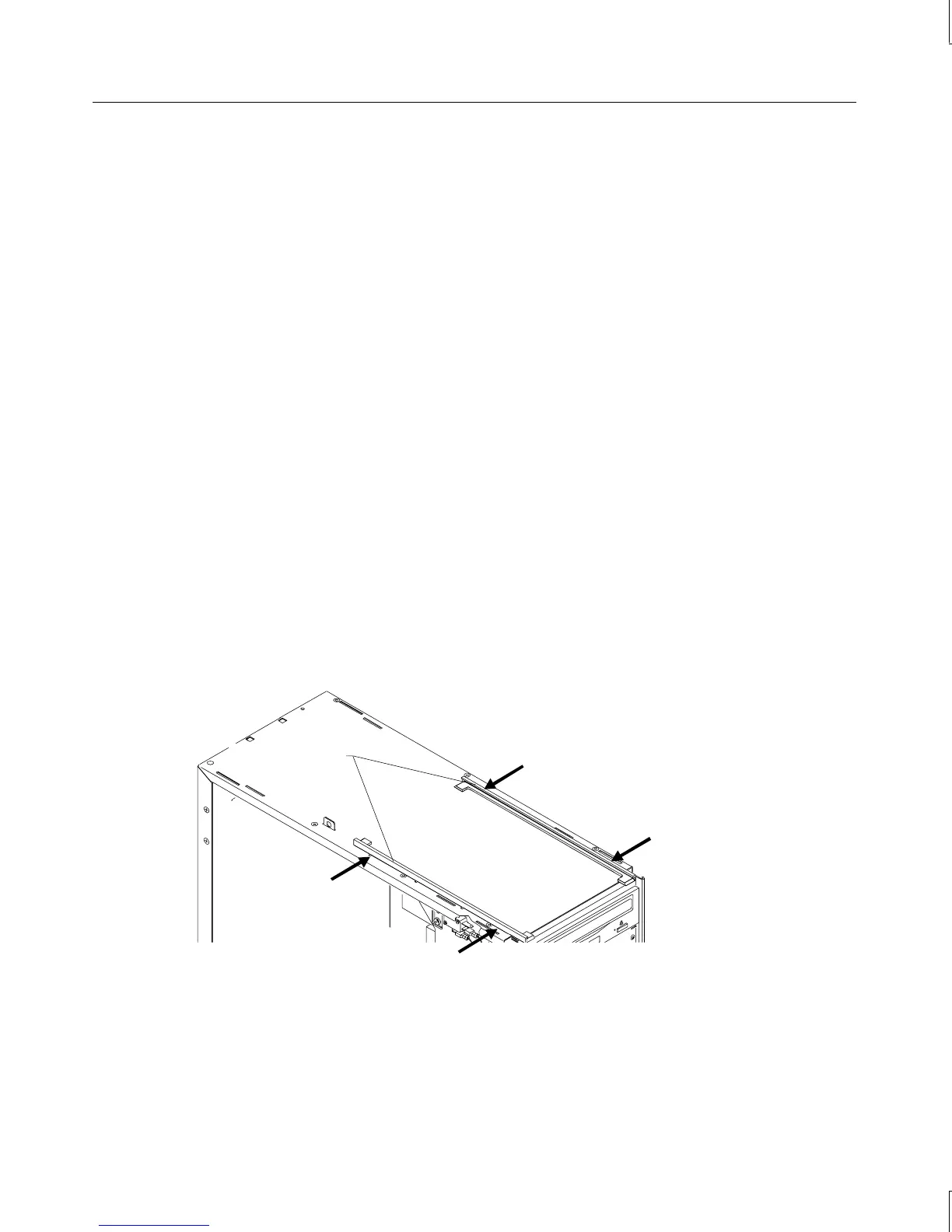

Hinge rails
4. Remove the hinge from the rail.
5. Press a hinge rail toward the middle of the chassis until all four tabs release.
6. Lift the hinge rail off the chassis.
