Intermec EasyCoder PF2i - Page 119

Chapter 11 — Maintenance
104 EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version)

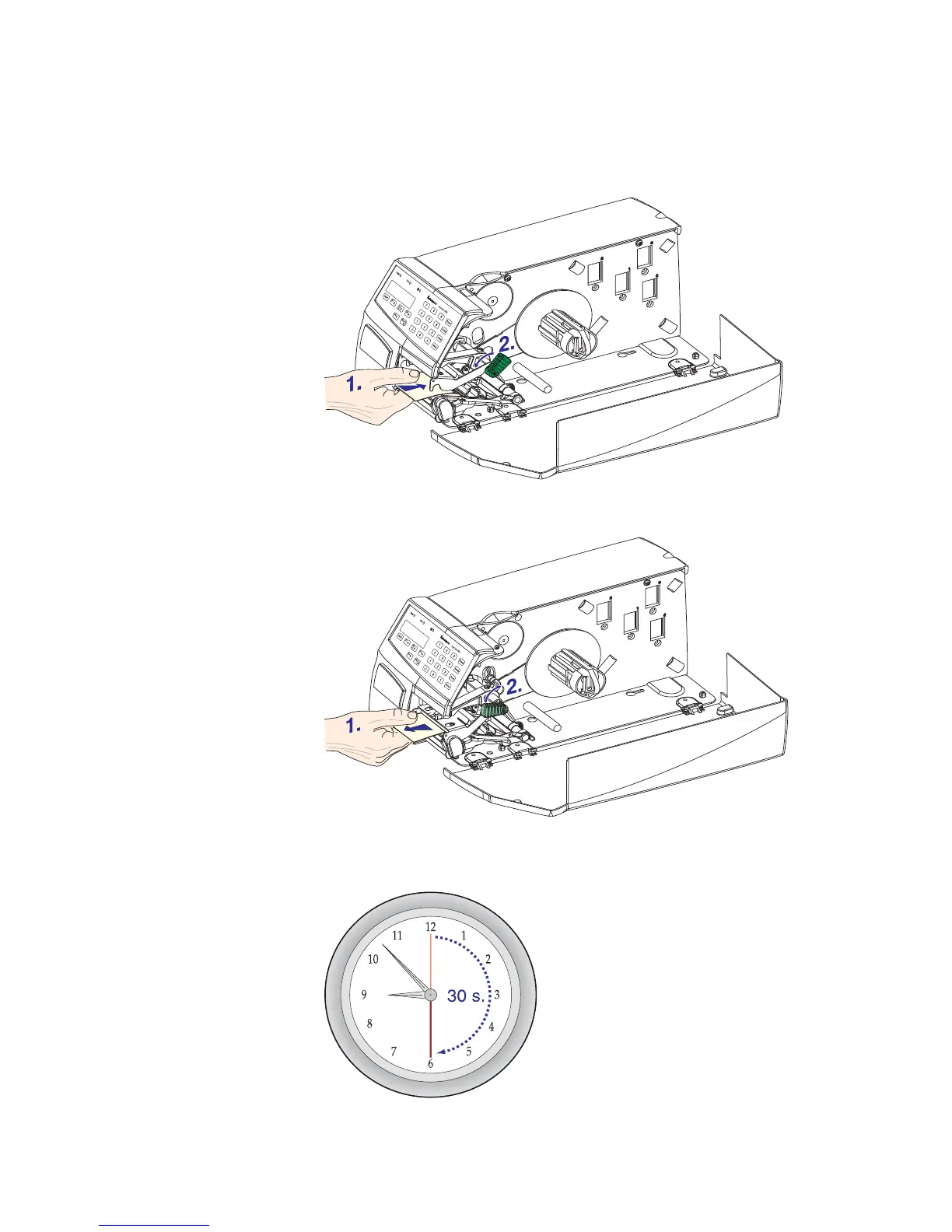

5 Insert most of the cleaning card under the printhead (1).
Engage the printhead (2).
6 Pull out the cleaning card (1) and raise the printhead (2).
7 Wait for approx. 30 seconds to allow the cleaning fluid to
dissolve the residue.
