Appendix B — Media Specifications
136 EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version)

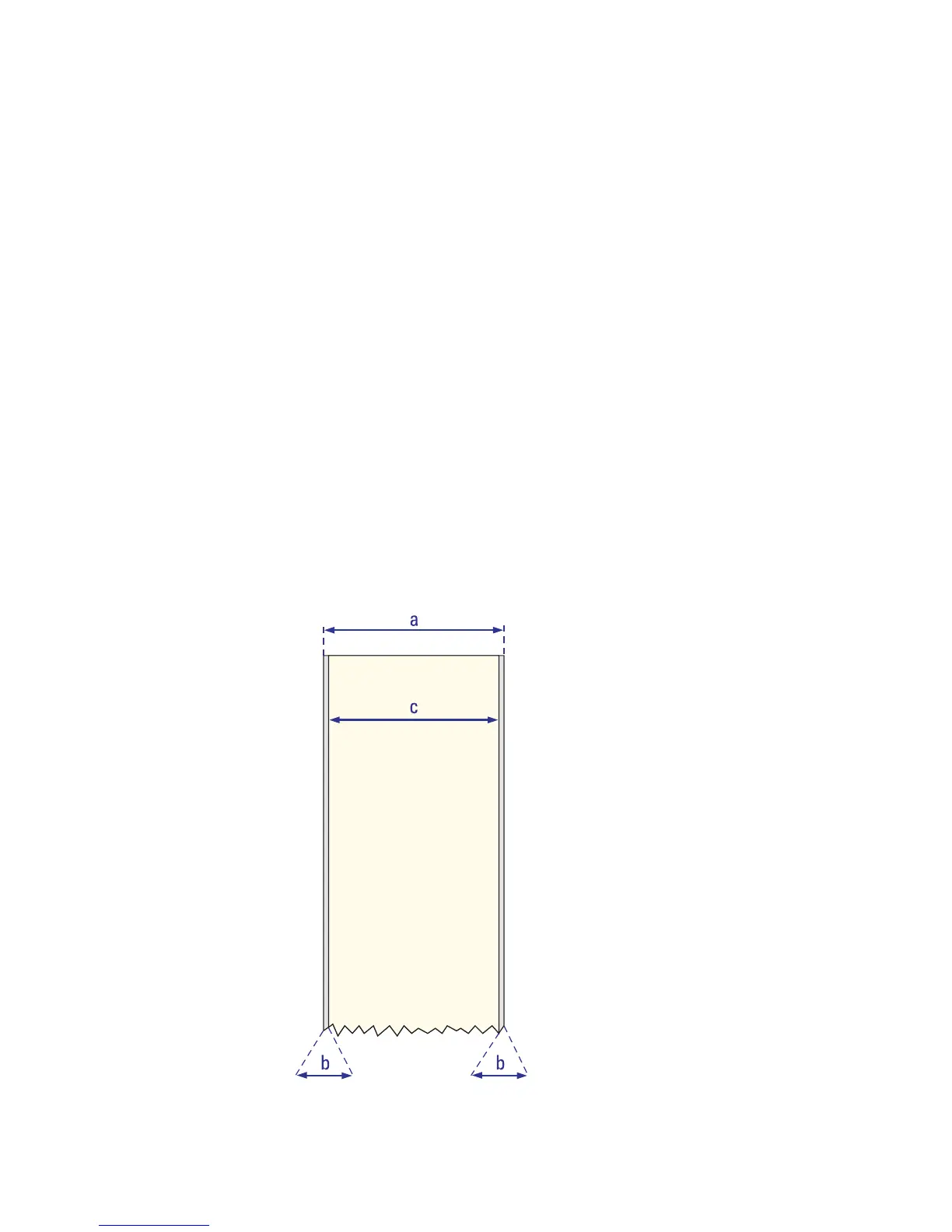

Self-Adhesive Strip
⇐ a ⇒Media Width (including liner)
Maximum: 60.0 mm (2.36 inches)
Minimum (standard): 25.0 mm (1.00 inches)
Minimum (quick-load): 40.0 mm (1.57 inches)
⇐ b ⇒ Linear
The liner must not extend more than a total of 1.6 mm (0.06
inches) outside the face material and should protrude equally on
both sides.
⇐ c ⇒ Media Width (excluding liner)
Maximum: 58.4 mm (2.30 inches)
Minimum: 23.8 mm (0.94 inches)
Media Type Setup
•Fix length strip
•Var length strip
SELF-ADHESIVE
STRIP
