Intermec EasyCoder PF2i - Bar Code Wand Interface

Appendix C — Interfaces
146 EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version)
Bar Code Wand Interface
The printer has a socket on the CPU board for connecting a bar
code wand or scanner. The socket is accessible through a slot in
the printer’s rear plate.

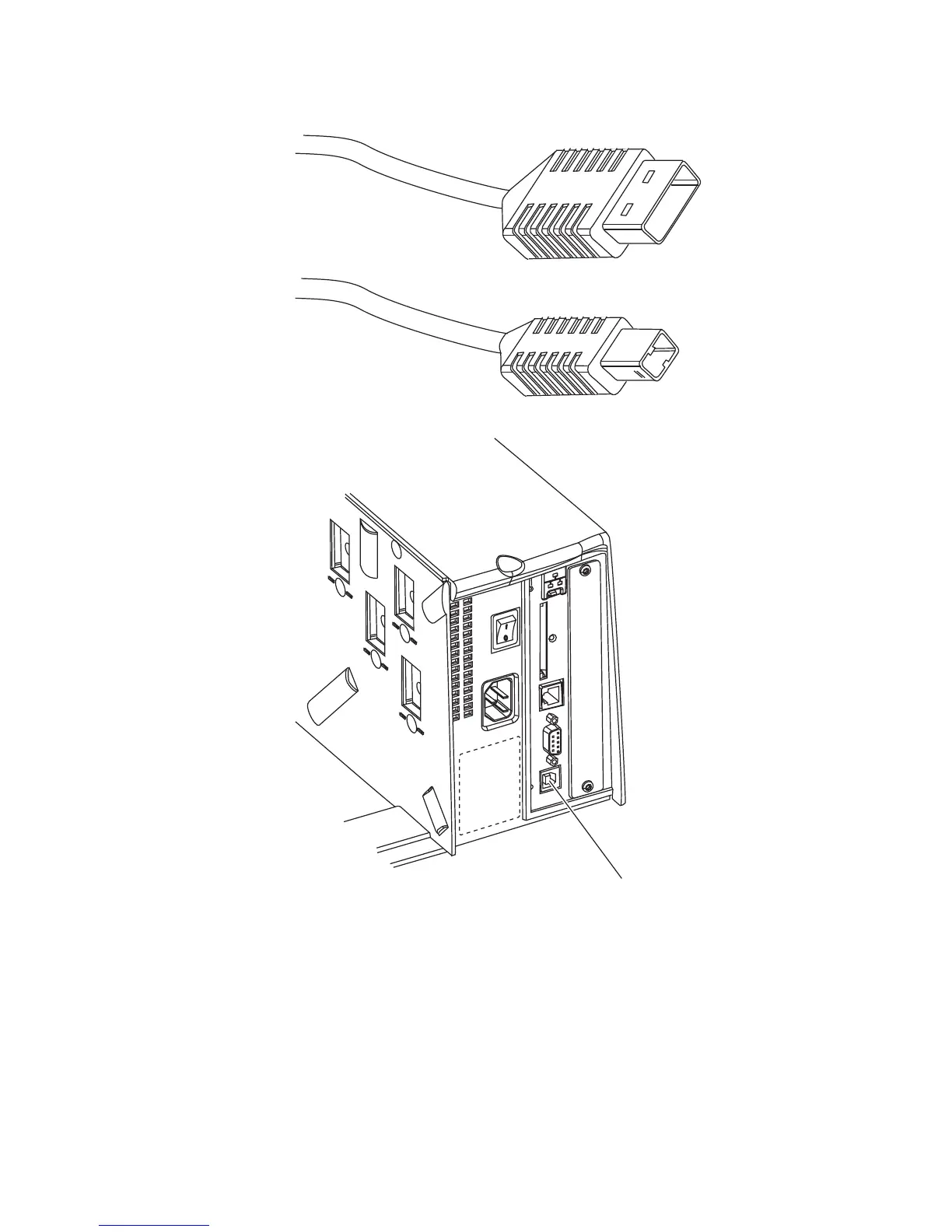

USB Class A connector,
connect to PC or hub
USB Class B connector,
connect to USB receptacle
on the printer’s rear plate
USB (”usb 1:”)
