Chapter 11 — Maintenance
EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version) 111

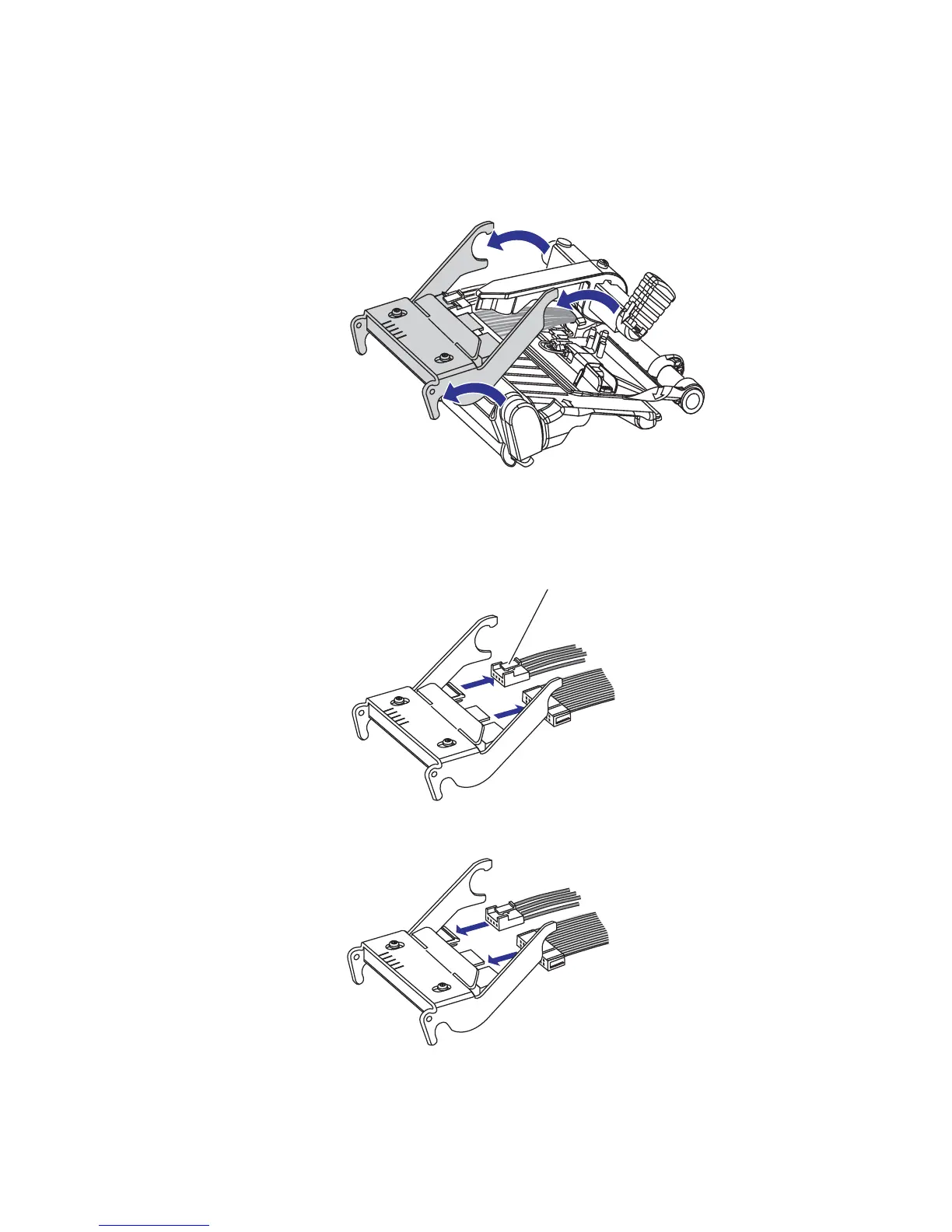

5 Disconnect the printhead bracket from the print mechanism
as indicated by the arrows and pull out the printhead as far as
the cables allow.
6 Disconnect the cables from the printhead. Note the snap-lock
on the inner connector. Pull at the connectors - not at the
cables!
7 Connect the two cables to replacement printhead.
