Chapter 2 — Installation
EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version) 11
• Position 1 is used when the media compartment is fully
enclosed by a long side door, regardless of the existence of any
integral liner takeup unit. Maximum roll size is 152 mm (6
inches).
• Position 2 is used when the printer has a short side door that
only encloses the print mechanism, but does not have an
integral liner takeup unit. Maximum roll size is 203 mm
(8.00 inches).
• Position 3 is used when the printer has a short side door and
an integral liner takeup unit. Maximum roll size is 213 mm
(8.38 inches).
• Position 4 is not used.
The printer can also use an external media supply located behind
the printer.

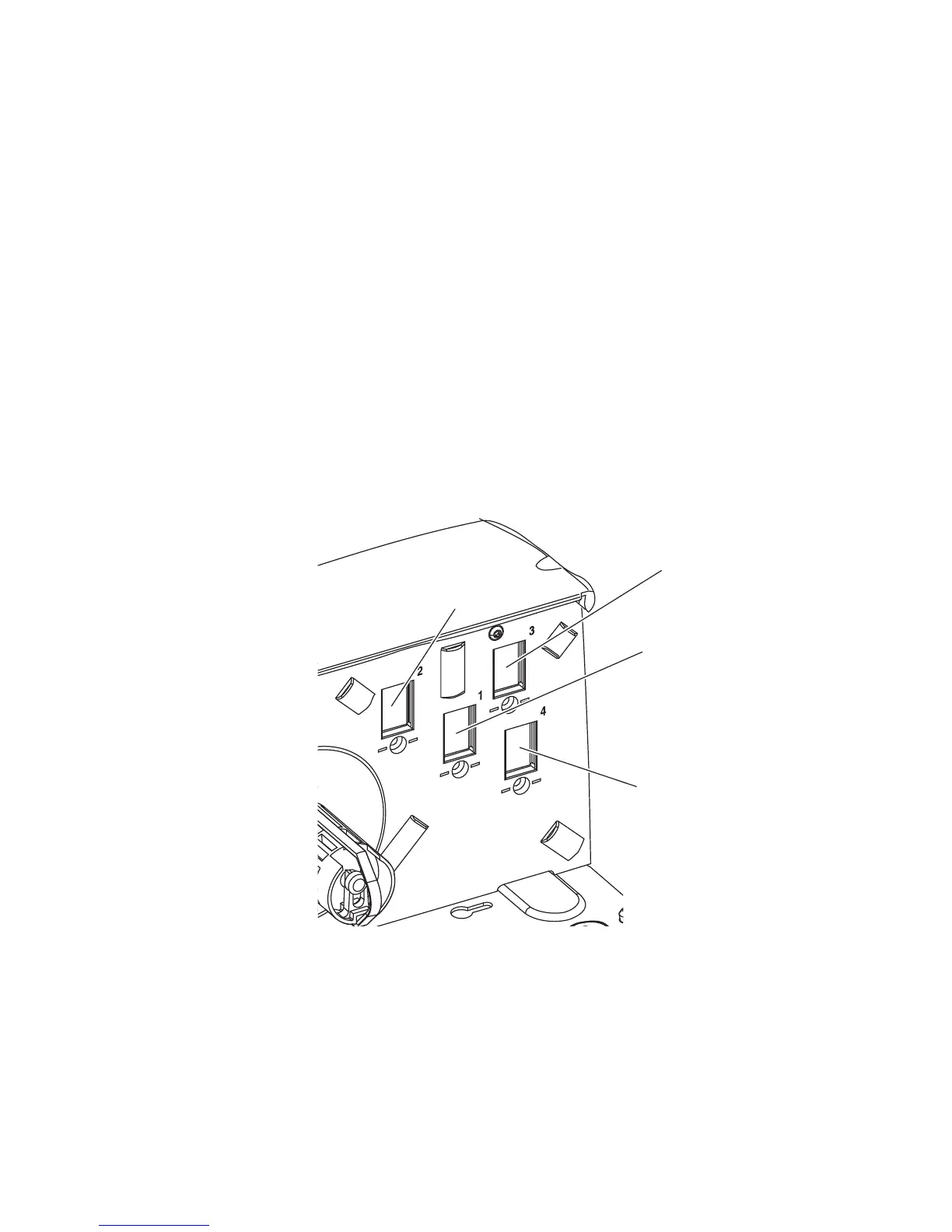

Position 3
Position 1
Position 2
Position 4
(not used)
