Chapter 4 — Media Load
EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version) 27

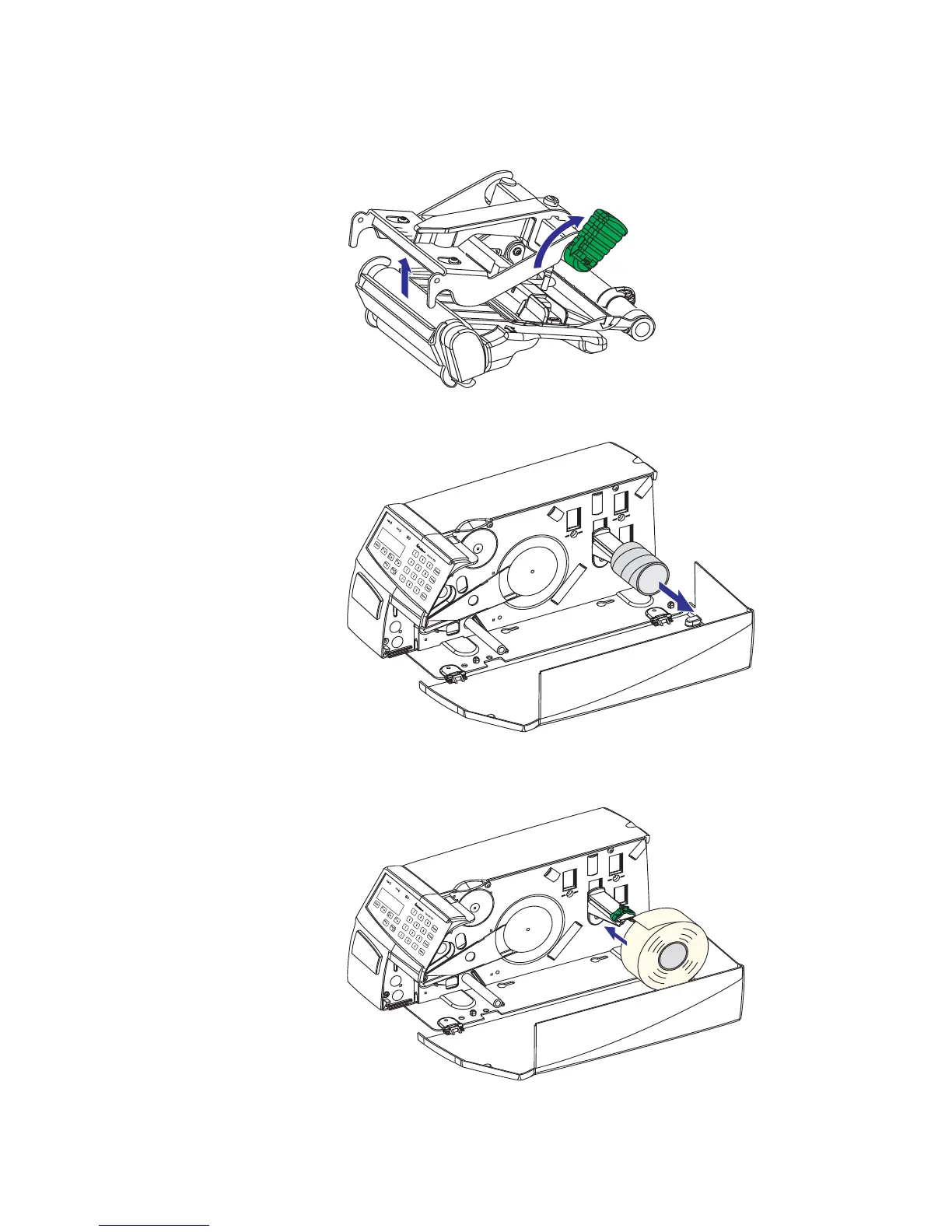

2 Turn the printhead lift lever clockwise to raise the printhead.
3 Remove any empty core from the media supply roll post.
4 Fit new roll of media on the supply post and adjust the edge
guide, so the roll becomes flush with the center section.
2
1
4
3
bw
fw
